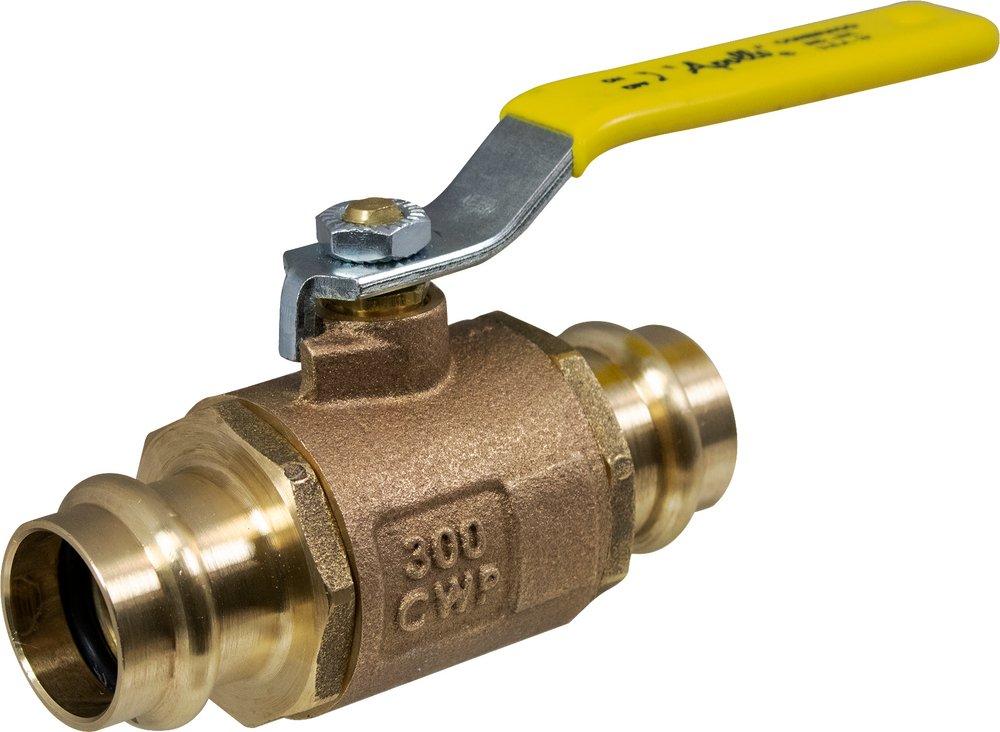

2 in. Cast Bronze Full Port Press 200# Ball Valve
Apollo Valves
77W-A Series 2 in. Cast Bronze Full Port Press 200# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 4 Pallet: 180Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Apollo Valves
77W-A Series
2 in. Cast Bronze Full Port Press 200# Ball Valve
77W14801A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Heavy pattern cast DZR bronze body
- Full-port flow
- Adjustable stem packing
- Fast, reliable, economical press installation
- Leak before Press® technology
- Blow-out-proof stem design
- Corrosion resistant materials
- 100% factory tested
- Silicone free assembly
- Made in USA, ARRA compliant
Product Information
-
Not Compliant, Approved for Non-Potable Water Applications
Dimensions & Measurements
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Length
6-4/5 in
Pressure Class
200#
Valve Size
2 in
Weight
7.54 lb
Characteristics & Features
Clean Bagged
No
Collection
77W-A Series
Handle Material
Plated Steel
Material
Cast Bronze
Material Type
C84400
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RPTFE
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
300
Temperature Range
0 to 250 Deg F (-18 to 121 Deg C)
Warranty & Product Information
ANSI
ANSI Z1157
ASTM
ASTM B-16 C36000
cUPC Certified
No
Fire Suppression System Rated
No
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Not Compliant, Approved for Non-Potable Water Applications
MA Approved
No
MSS
MSS SP-110
NSF Certified
No
Recommended Valve Application
Cold Water, Commercial, Hot Water, Hydronics, Water
UL Listed
No
UPC
191988040581
