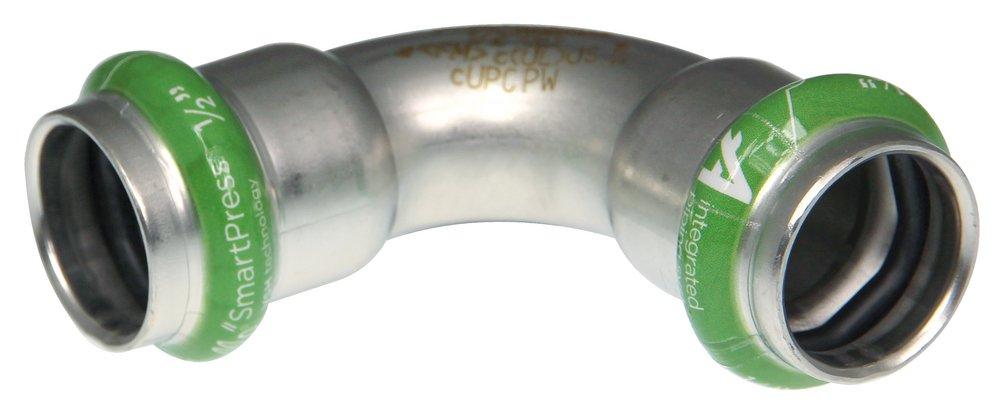

1-1/2 in. Press 316 Stainless Steel 90 Degree Elbow
Apollo Valves
SmartPress 1-1/2 in. Press 316 Stainless Steel 90 Degree Elbow
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
All Sizes
Purchase history
Apollo Valves
SmartPress
1-1/2 in. Press 316 Stainless Steel 90 Degree Elbow
123456958
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 500 psi operating pressure
- Quick installation thanks to pre-marked insertion depth
- Color-coded Visu-control® foil for material/dimensions identification and visual press indication
- Patented sealing element design with Leak Before Press® technology for added safety and optimized installation
- Complete range of AISI 316 fittings and valves
Documents
Dimensions & Measurements
Elbow Degree
90°
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Fitting Size 1
1-1/2 in
Fitting Size 2
1-1/2 in
Fitting Sizes
1-1/2 in
Characteristics & Features
Collection
SmartPress
Fitting Type
Elbow, Straight
Material
Stainless Steel
Material Type
316L
Electrical & Operational Information
Maximum Temperature
302
Pressure - High
500
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI Z1117
Application
Cooling, Heating, Potable Water, Sprinkler, Steam, Vacuum
ASTM
ASTM A-312
FM Approved
Yes
IAPMO Listed
Yes
NSF
NSF 372, NSF 61
NSF Certified
No
UL Listed
No
