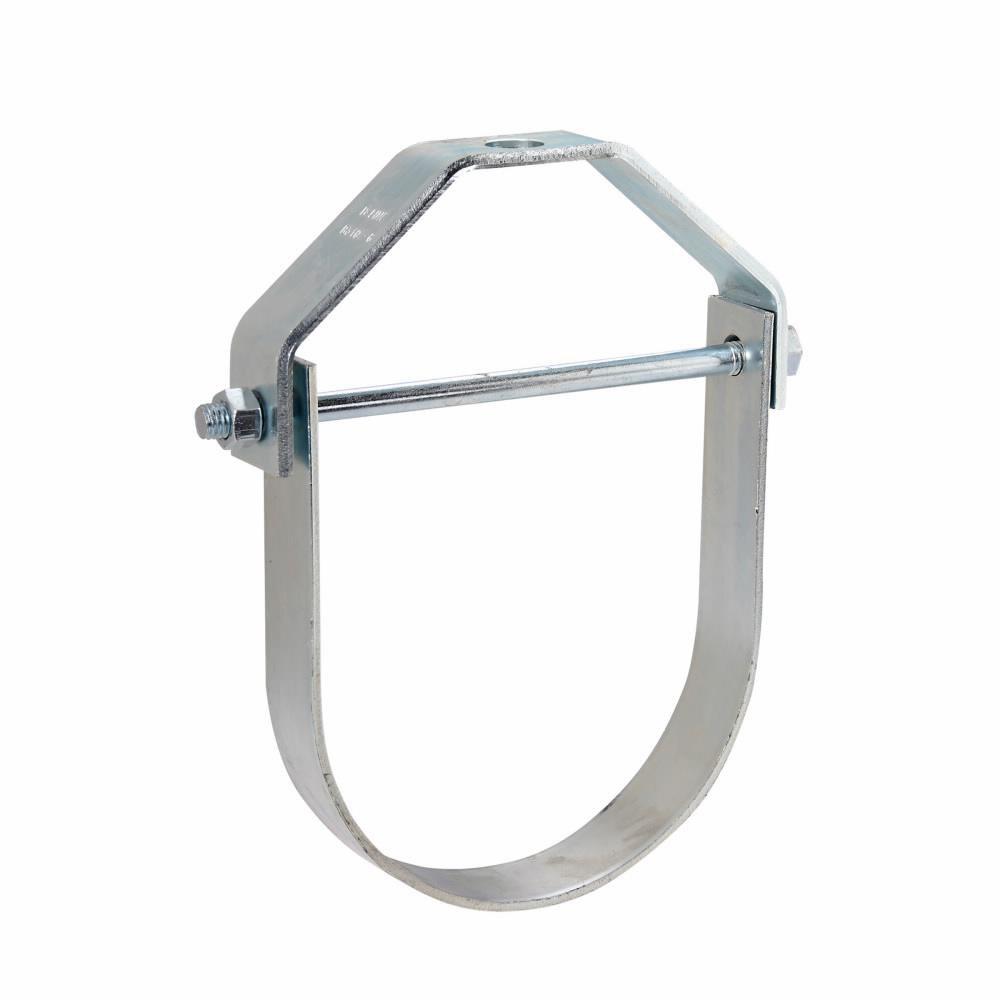

12 in. Plain Steel Adjustable Clevis Hanger
Eaton B-Line Series
B3100 Series 12 in. Plain Steel Adjustable Clevis Hanger
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 48
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Eaton B-Line Series
B3100 Series
12 in. Plain Steel Adjustable Clevis Hanger
78101105084
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Standard clevis hanger is recommended for the suspension of non-insulated pipe or insulated pipe with a B3151 shield
- Pipe will not ‘pinch’ when installing
- Swing in either direction allows pipe to easily feed thru
- Engineered design aligns bolt holes for quicker overhead installation
- TOLCO seismic restraint systems guidelines
- MSS SP-69 & SP-58, type 1
- Also available to accommodate rod schedule per National Fire Protection Association (NFPA) Pamphlet 13
- 1.75" H x 17.8750" L x 17.5" W
- Plain
- 12" max pipe size
Dimensions & Measurements
Fits Pipe Size
12 in
Height
1-3/4 in
Length
17-1/2 in
Rod Size (in)
7/8 in
Width
17-1/2 in
Characteristics & Features
Coating
Plain
Collection
B3100 Series
Material
Steel
Work Load Limit
3800 lb
Warranty & Product Information
ANSI
ANSI SP-58 Type 1, ANSI SP-69
Application
Commercial, Industrial, Insulated Pipes, Non-Insulated Pipes, Residential
FM Approved
Yes
MSS
MSS SP-58 Type 1, MSS SP-69
Product Type
Clevis Hanger
UL Listed
Yes
UPC
781011050849
