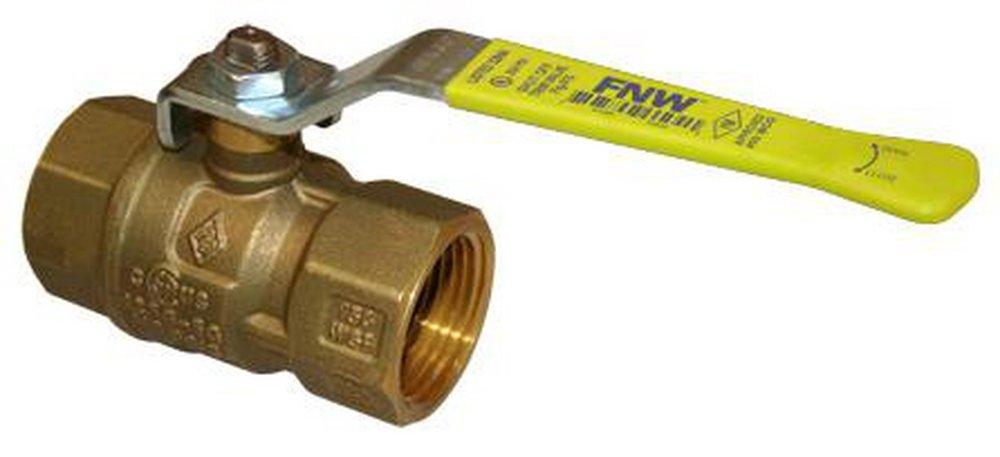

3/4 in. Brass Full Port FPT 600# Locking Lever Ball Valve
FNW®
Figure 415 3/4 in. Brass Full Port FPT 600# Locking Lever Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 25 Case: 50 Pallet: 875Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 415
3/4 in. Brass Full Port FPT 600# Locking Lever Ball Valve
FNW415LLF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 3/4 in. brass ball valve
- End Connections: Threaded
- Valve Length: 2.46 in.
- Maximum Temperature: 149 degrees (F)
- Valve Pressure Class: 600#
- Recommended Application: Water, oil, gas
- ANSI Z21.15
- Saturated steam 150 psi
- 100% electronically tested in open and closed position at 80 psi
- 400 PSI maximum for FM approved applications
Product Information
-
Not Compliant, Approved for Non-Potable Water Applications
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
2-23/50 in
Pressure Class
600#
Pressure - Maximum
600 psi
Valve Size
3/4 in
Characteristics & Features
Clean Bagged
No
Collection
Figure 415
Handle Material
Steel
Material
Brass
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Forged Brass
Valve Body Style
2 piece
Valve Operator
Locking Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
149
Minimum Temperature
-40
Pressure - High
600
Warranty & Product Information
ANSI
ANSI Z21.15
ASME
ASME B16.33, ASME B16.38, ASME B16.44
CSA Certified
CSA 9.1
FM Approved
Yes
IAPMO Listed
No
Lead Law Compliance Level
Not Compliant, Approved for Non-Potable Water Applications
MA Approved
Yes
MSS
MSS SP-110
NSF Certified
No
Recommended Valve Application
Gas, Oil, Steam
UL Listed
No
UPC
781889258460
