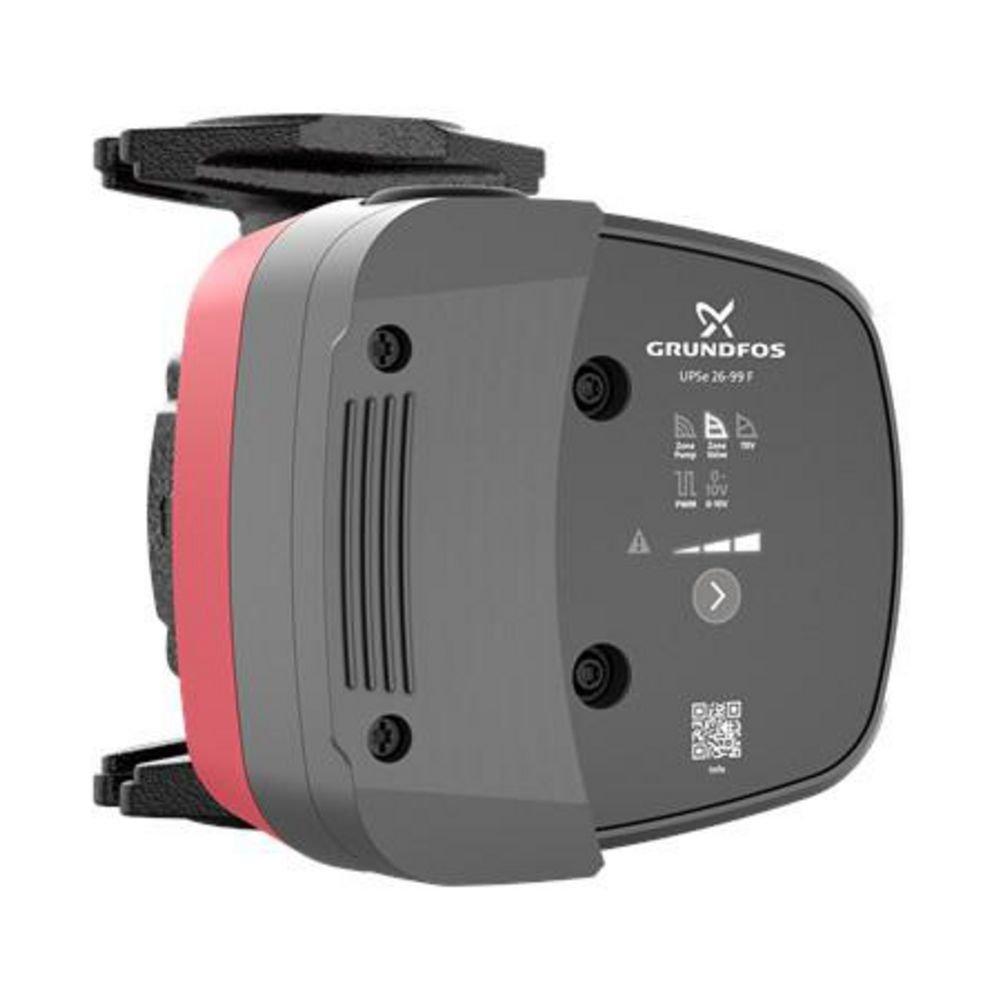

UPSe 26-99 F 165 AR 115V 9H High-Efficiency Circulator Pump 60 Hz
Grundfos
UPSe 26-99 F 165 AR 115V 9H High-Efficiency Circulator Pump 60 Hz
Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Grundfos
UPSe 26-99 F 165 AR 115V 9H High-Efficiency Circulator Pump 60 Hz
93262074
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- High efficiency variable speed wet rotor circulator
- Electronically commutated permanent magnet motor (ECM)
- For large residential or light commercial applications
- Suitable for cold water ground loops in geothermal heat pump applications
- Compact design fits tight spaces and replaces a wide range of circulators in the same class
- Three selectable setpoints ensure fast commissioning and optimized performance straight out of the box
- Dry running protection and a serviceable design
- Check valve comes standard in the packaging
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Flow Rate
43 gpm
Height
9-97/100 in
Length
7-11/25 in
Maximum Feet of Head
34.1
Width
6-13/50 in
Characteristics & Features
Connection Type
Flanged
Hertz
60
Impeller
Composite
Pump Body Material
Cast Iron
Pump Stage
1
Electrical & Operational Information
AMP
1.85
Maximum Temperature
230
Minimum Temperature
-4
Volts
115V
Watts
110 W
Warranty & Product Information
Origin
Global
Product Type
Circulator Pump
UL Listed
Yes
