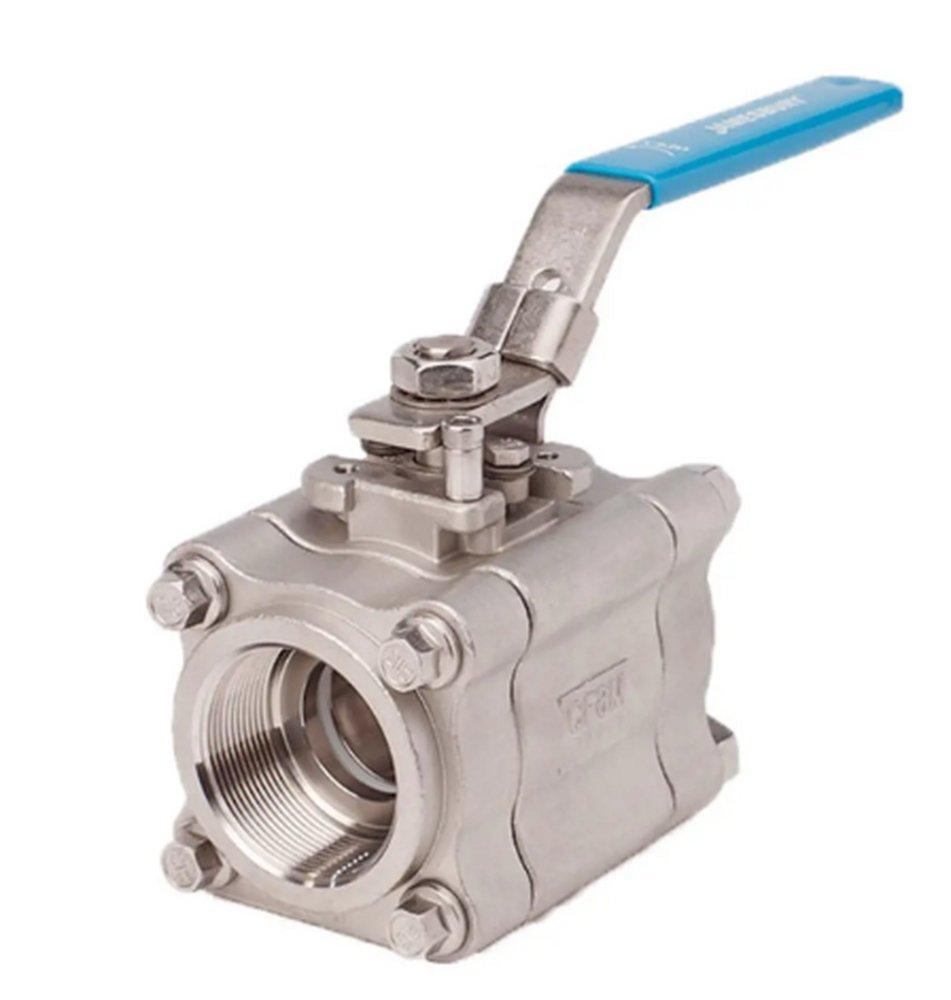

1 in. Stainless Steel Full Port NPT CL800 Fire-Tite Ball Valve w/Xtreme Seats
Jamesbury
Series 4000 1 in. Stainless Steel Full Port NPT CL800 Fire-Tite Ball Valve w/Xtreme Seats
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Jamesbury
Series 4000
1 in. Stainless Steel Full Port NPT CL800 Fire-Tite Ball Valve w/Xtreme Seats
MA0008689
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Robust engineering design
- Self relieving seat technology
- Patented stem seal technology
- ISO compliant bonnet
- Multiple end connections (Threaded, socket weld, butt weld, custom)
- High quality
- Very long service life
- Bi-directional in hazardous media service
- Low fugitive emissions
- Bubble tight shut off
Documents
Dimensions & Measurements
End Connection 1
NPT
End Connections
NPT
Pressure Class
800#
Valve Size
1 in
Characteristics & Features
Collection
Series 4000
Material
Carbon Steel, Stainless Steel
Valve Body Material
316 Stainless Steel
Valve Body Style
3 piece
Valve Operator
Locking Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
Xtreme
Valve Type
Ball Valve
Electrical & Operational Information
Temperature Range
-50 to 450 Deg F(-46 to 232 Deg C)
Warranty & Product Information
API
API 607
ASME
ASME B16.34, ASME B31.1, ASME B31.3, ASME B31.4
ISO
ISO 15848
UL Listed
Yes
