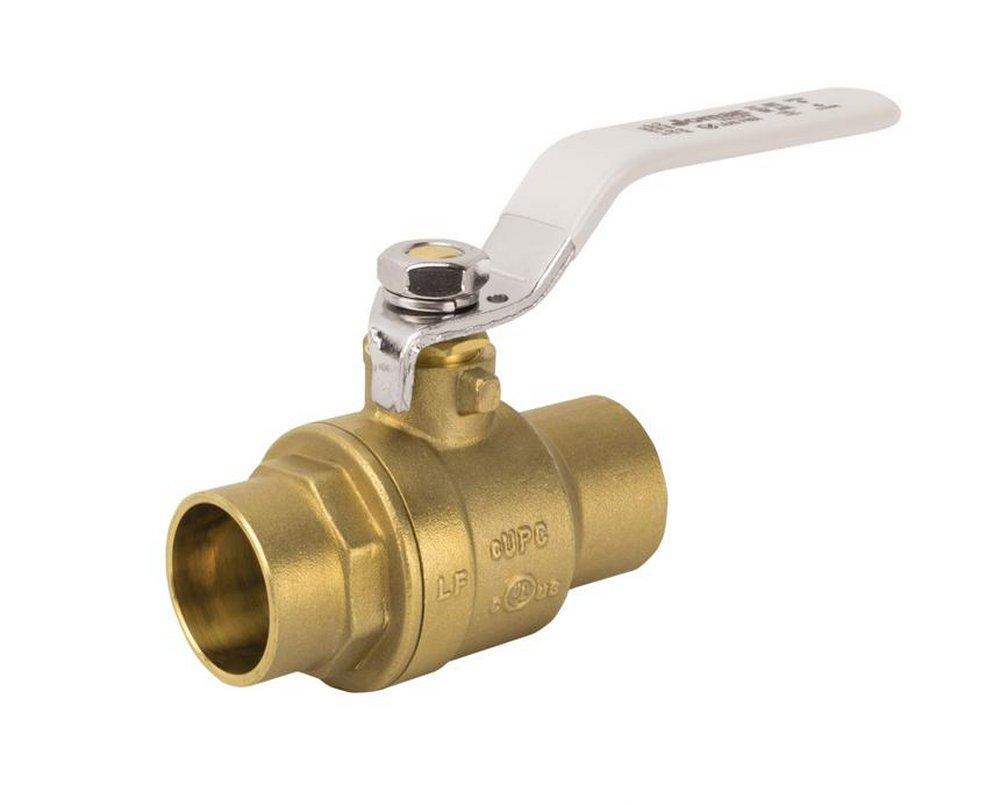

3/4 in. Full Port Solder Ball Valve
Jomar International
S-150G 3/4 in. Full Port Solder Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Jomar International
S-150G
3/4 in. Full Port Solder Ball Valve
150-114G
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Dezincification resistant brass alloy
- Gland follower and single O-ring stem design
- Blow-out proof stem
- IAPMO certified - NSF 61 / NSF 372 certified
- Wetted surfaces contain less than .25% lead content
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Solder
End Connection 2
Solder
End Connections
Solder
Length
2-37/50 in
Pressure Class
600#
Valve Size
3/4 in
Characteristics & Features
Collection
S-150G
Handle Material
Steel
Material
Brass, Plastic
Material Type
PTFE
Valve Body Material
Brass
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
150, 600
Warranty & Product Information
ANSI
ANSI B16.18
FM Approved
Yes
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110
NSF
NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Gas, Oil, Water
UL Listed
Yes
UPC
662527305701
