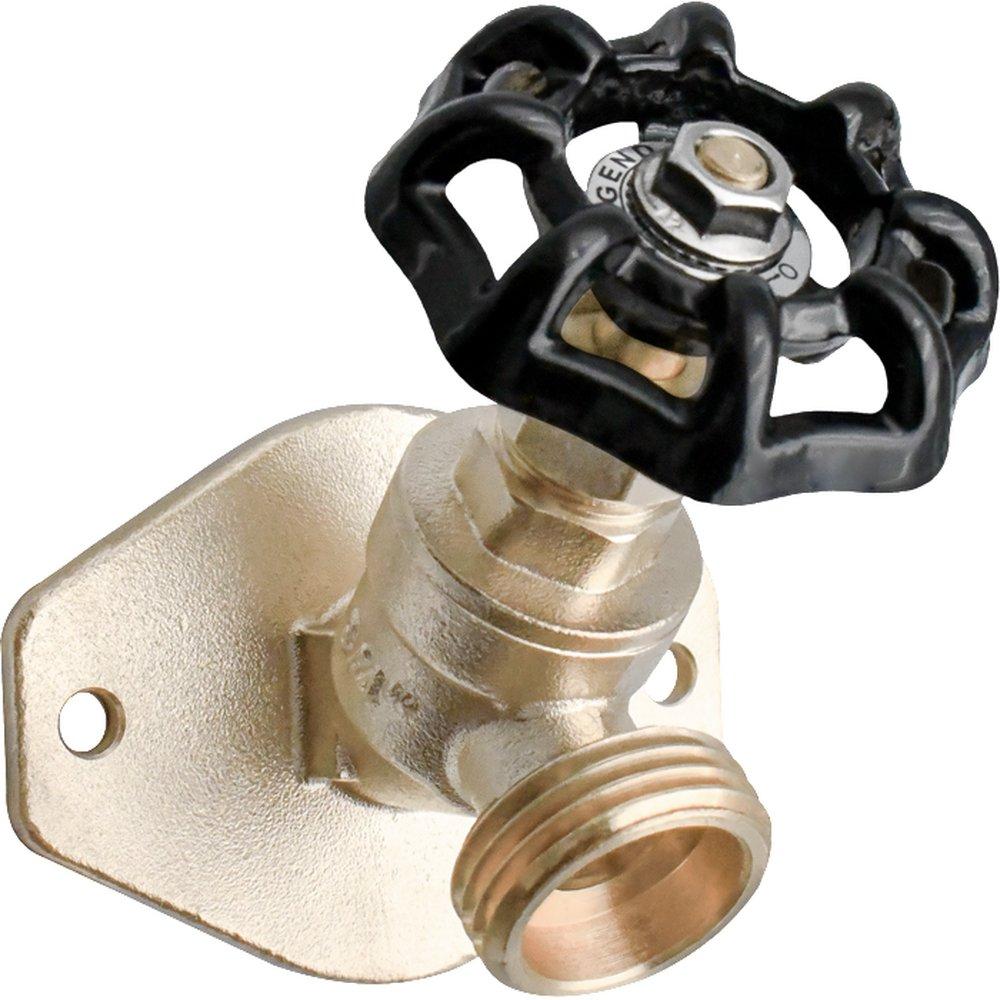

Forged Brass 1/2 x 3/4 in. Sillcock
Legend Valve & Fitting
T-514PNL Forged Brass 1/2 x 3/4 in. Sillcock
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Legend Valve & Fitting
T-514PNL
Forged Brass 1/2 x 3/4 in. Sillcock
107-179PNL
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Full-pattern forged brass body is more durable than competitors’ cast reduced-material examples
- Diamond-shaped sill flange offers enhanced coverage of the sill hole and extended spacing between the fastener holes, for better tool access when attaching to the sill
- An improvement over round sill flange types
- 3/4” GHT outlets accept 3/4” hose-thread-mounted vacuum breakers, including our models T-553, T-553C, T-554,T-557, and T-557C
- Available in nominal 1/2” and 3/4” PEX (F1807 or F1960) inlet x 3/4” MGHT hose thread outlet sizes
Documents
Dimensions & Measurements
End Connection 1
PEX Crimp
End Connection 2
MGHT
End Connections
PEX Crimp x MGHT
Fitting Size 1
1/2 in
Fitting Size 2
3/4 in
Fitting Sizes
1/2 in x 3/4 in
Characteristics & Features
Collection
T-514PNL
Handle Material
Cast Iron
Material
Aluminum, Forged Brass, Rubber, Stainless Steel
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI B1.20.7
ASME
ASME A112.18.1, ASME B1.20.7
CSA Certified
CSA B125.1
NSF
NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Drinking Water
UPC
662545129211
