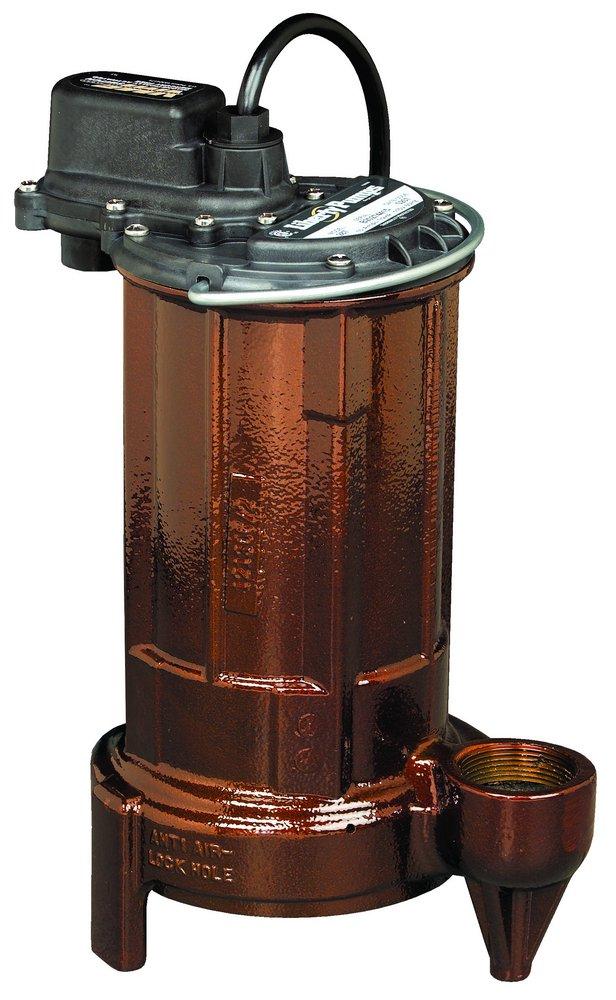

3/4 HP 208-230V Cast Iron Effluent Pump
Liberty Pumps
290 Series 3/4 HP 208-230V Cast Iron Effluent Pump
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 8
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Liberty Pumps
290 Series
3/4 HP 208-230V Cast Iron Effluent Pump
291HV
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Liberty's unique, one-piece "UniBody" casting
- Quick-connect power cord
- Permanently lubricated upper and lower bearings
- Oil-filled, hermetically dialed motors with thermal overload protection
- Stainless steel, removable bottom screen
- Stainless steel rotor shaft
- Stainless steel fasteners
- Wide angle float
- 230 V
- 10' power cord
Dimensions & Measurements
Cord Length
10 ft
Discharge
1-1/2 in
Flow Rate
77 gpm
Height
15-1/2 in
Maximum Feet of Head
48
Weight
31 lb
Width
9 in
Included Components
Built-In Grinder
No
Characteristics & Features
Coating
Epoxy, Powder Coated
Collection
290 Series
Connection Type
FPT
Discharge Configuration
Horizontal
Proposition 65
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birthdefects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Pump Body Material
Cast Iron
Pump Motor Type
Thermally Protected
Turn On/Turn Off Levels
Turn-on 13 in/Turn-off 7 in
VA Cat 60 Hz
230
Electrical & Operational Information
AMP
5.3
Automatic Shut-Off
Yes
Horsepower
3/4 hp
Volts
208/230V
Warranty & Product Information
CSA Certified
CSA 22.2 No. 108
Product Type
Effluent Pump
Type
L291HV
UL Listed
UL 778
UPC
671812120943
