2HP 50GPM Single Phase 208-230V LSG202 Cast Iron Grinder Pump with Simplex Control Panel
Liberty Pumps
3000 Series 2HP 50GPM Single Phase 208-230V LSG202 Cast Iron Grinder Pump with Simplex Control Panel
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Liberty Pumps
3000 Series
2HP 50GPM Single Phase 208-230V LSG202 Cast Iron Grinder Pump with Simplex Control Panel
3072LSG202-36
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description

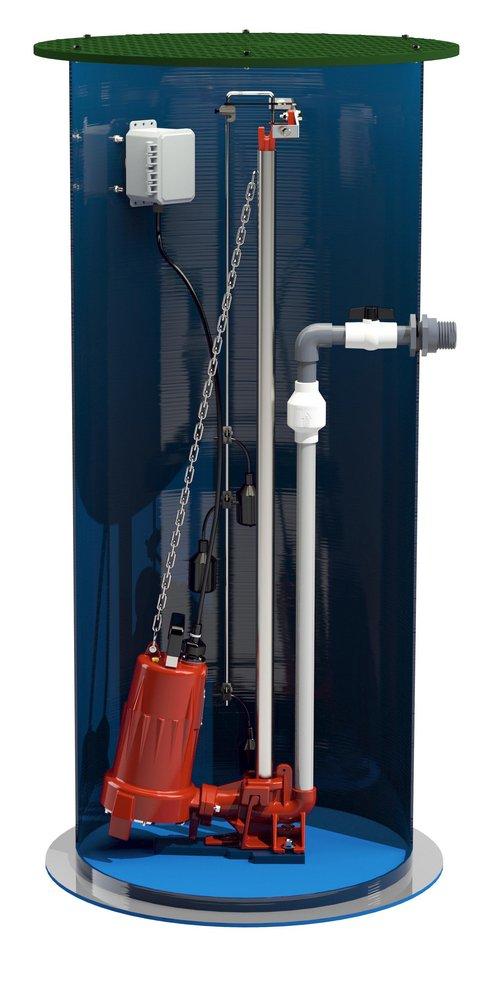

- Factory assembled 2hp grinder pump 30" diameter system
- Pre-mounted floats for pump control and alarm
- 4" Fiberglass hub with 4" rubber pipe seal
- Factory pre-assembled guide rail system
- Integral check valve
- Galvanized guide rail pipe
- All stainless steel supports and brackets pre-mounted
- Stainless steel chain for pump lift-out
- 36" discharge depth
- 25' power cord
Dimensions & Measurements
Cord Length
25 ft
Discharge
1-1/5 in
End Connection 1
FNPT
End Connections
FNPT
Flow Rate
50 gpm
Height
78 in
Length
72 in
Maximum Feet of Head
108
Weight
309 lb
Width
36 in
Characteristics & Features
Coating
Fiberglass
Collection
3000 Series
Discharge Configuration
Horizontal
Impeller
Vortex
Material
Fiberglass
Pump Body Material
Cast Iron
Pump Motor Type
Thermally Protected
Pump Mounting
Rail Mount
Pump Stage
1
Turn On/Turn Off Levels
Turn-on 32.5 in_Turn-off 11 in
VA Cat 60 Hz
230
Electrical & Operational Information
AMP
15
Automatic Shut-Off
Yes
Horsepower
2 hp
Maximum Temperature
104
Power Source
Electric
RPM
3450
Volts
208/230V
Warranty & Product Information
Product Type
Grinder Pump
Pump Application
Sewage
Type
L3072LSG20236
UL Listed
No
UPC
671812154726
