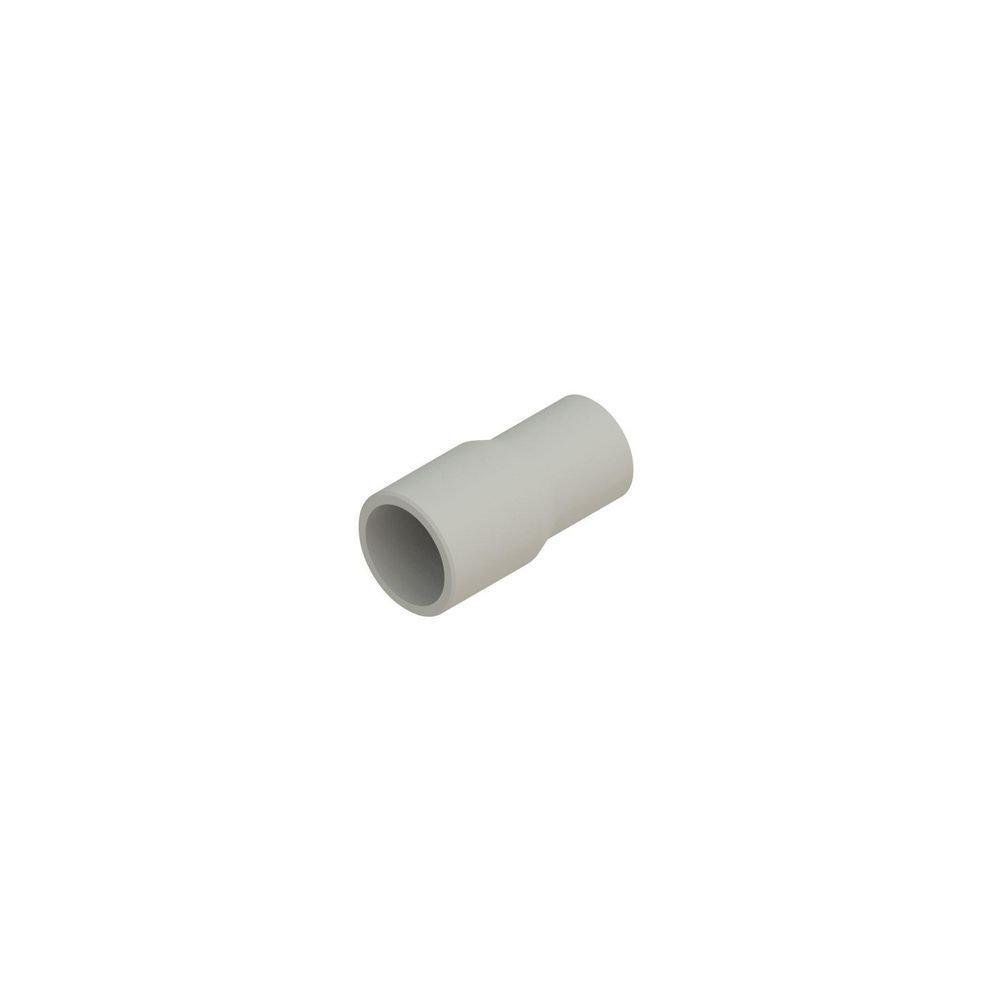

4 x 3 in. Spigot x Butt Fusion Plastic Reducer-Concentric
NIRON CLIMA
4 x 3 in. Spigot x Butt Fusion Plastic Reducer-Concentric
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 4 Pallet: 208Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
All Sizes
Purchase history
NIRON CLIMA
4 x 3 in. Spigot x Butt Fusion Plastic Reducer-Concentric
27NR1259011MM
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Niron Butt Fusion fittings are designed to be joined by means of heat element butt fusion in accordance with ASTM D-2657
- Fittings are manufactured with extended plain ends on each outlet with a reinforced area in the center of the fitting for strength
- The dimensions of the fittings are in accordance with the requirements of ASTM F-2389
- The fittings are designed to match the wall thickness and pressure ratings of the matching Niron pipe of the same SDR
Documents
Dimensions & Measurements
End Connection 1
Spigot
End Connection 2
Butt Fusion
End Connections
Spigot x Butt Fusion
Fitting Size 1
4 in
Fitting Size 2
3 in
Fitting Sizes
4 in x 3 in
Length
7-8/25 in
Pressure - Maximum
305 psi
Characteristics & Features
Color Finish Name
Grey
Fitting Type
Concentric Reducer, Reducer
Material
Plastic
Material Type
PP-RCT
Schedule Class
SDR 11
Electrical & Operational Information
Maximum Temperature
230
Warranty & Product Information
ANSI
ANSI 14, ANSI 61
ASTM
ASTM F-2389
CSA Certified
CAS B137.11
NSF
NSF 14, NSF 61
NSF Certified
Yes
