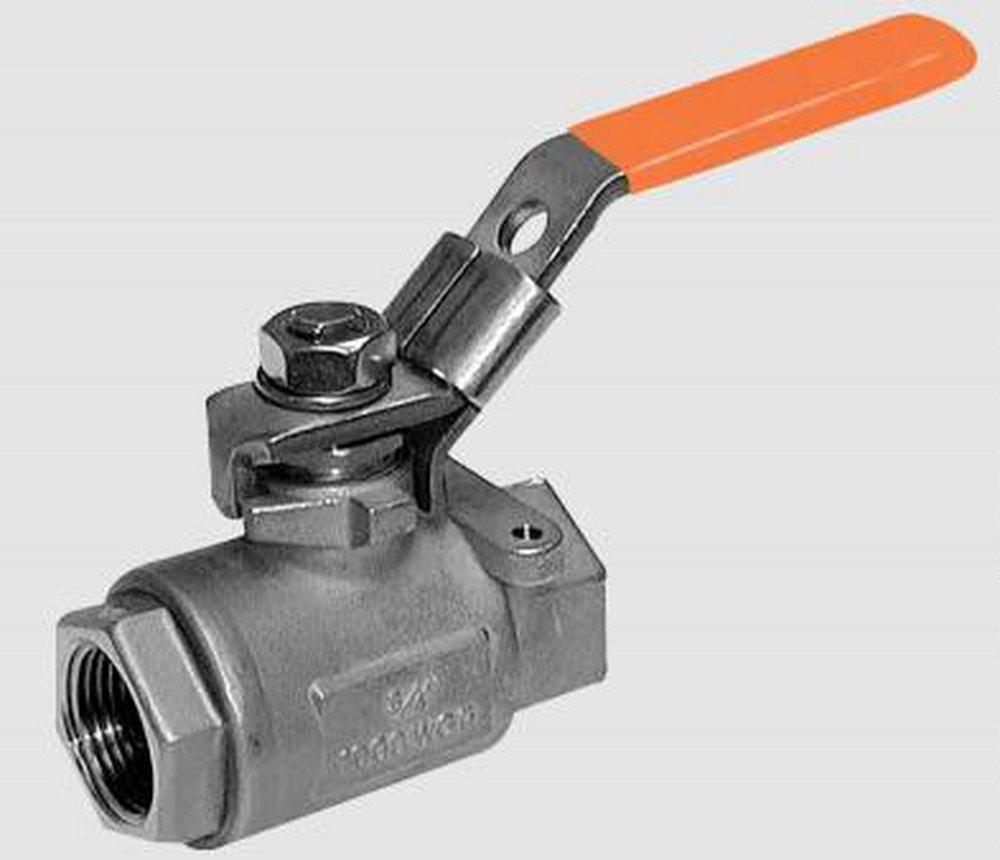

1-1/2 in. Stainless Steel Full Port FNPT 1000# Ball Valve
Quadrant
Series S1-SS 1-1/2 in. Stainless Steel Full Port FNPT 1000# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Quadrant
Series S1-SS
1-1/2 in. Stainless Steel Full Port FNPT 1000# Ball Valve
QS1FSSRRSLTTJ
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- One piece - seal welded construction
- All sizes are full port
- 1000 PSI CWP rating
- 150 PSIG saturated steam rating
- All models are NACE MR-01-75 compliant
- CF8M bodies and tailpieces, 316 stainless steel internals
- Standard actuator mounting pads on all sizes
- Standard stainless steel locking handles
- Locking oval handles available in stainless steel
- The ultimate in safe design
Documents
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
4-2/5 in
Pressure Class
1000#, 150#
Valve Size
1-1/2 in
Weight
5.35 lb
Characteristics & Features
Clean Bagged
No
Collection
Series S1-SS
Handle Material
Stainless Steel
Material
Stainless Steel, Plastic
Material Type
A351, CF8M, RPTFE
Valve Body Material
Stainless Steel
Valve Body Style
1 piece
Valve Bonnet Type
Welded
Valve Disc Material
Stainless Steel
Valve Operator
Latch Lock Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RPTFE
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
200
Pressure - High
1000, 150, 500
Warranty & Product Information
ASTM
ASTM A-276 Grade 316, ASTM A-351 Grade CF8M
FM Approved
No
IAPMO Listed
No
NSF Certified
No
Recommended Valve Application
Gas, Oil, Steam, Potable Water
UL Listed
No
