3/4 in. NPT Float and Thermostatic Steam Trap
Watson McDaniel

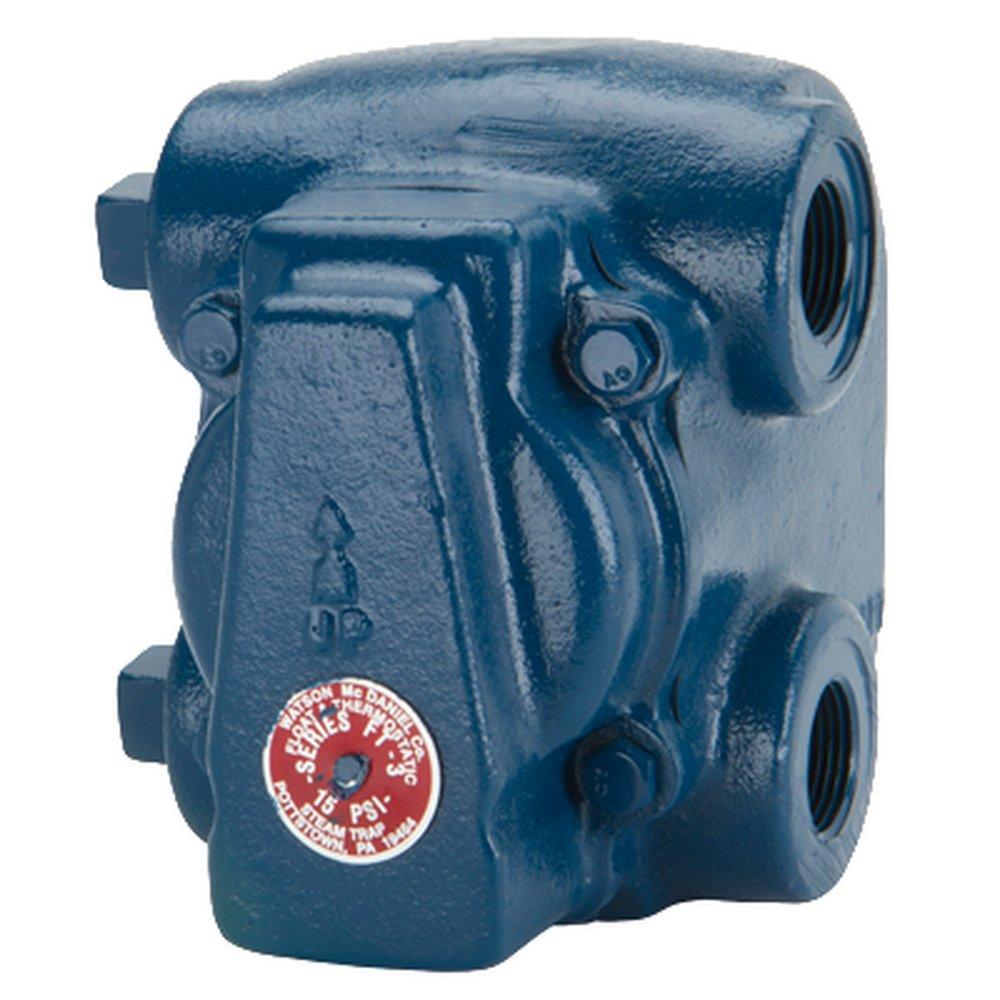

FT Series 3/4 in. NPT Float and Thermostatic Steam Trap
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Watson McDaniel
FT Series
3/4 in. NPT Float and Thermostatic Steam Trap
FT33-030-13-N
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- H-pattern design allows piping from either side of the steam trap (there are two inlet ports at top and two outlet ports at bottom)
- F&T traps have excellent air handling capability allows air to be discharged rapidly and steam to enter the system quickly during start-up
- Welded stainless steel thermostatic air vent resists shock from water hammer
- In-line repairable (all internals are attached to cover)
Dimensions & Measurements
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT
Height
5 in
Pressure Class
30#
Valve Size
3/4 in
Characteristics & Features
Collection
FT Series
Material
Cast Iron, Stainless Steel
Valve Body Material
Cast Iron
Valve Disc Material
Stainless Steel
Valve Seat Material
Stainless Steel
Warranty & Product Information
Application
Unit Heaters, Water Heaters, Heat Exchanger, Coils
ASTM
ASTM A-126 Class B
