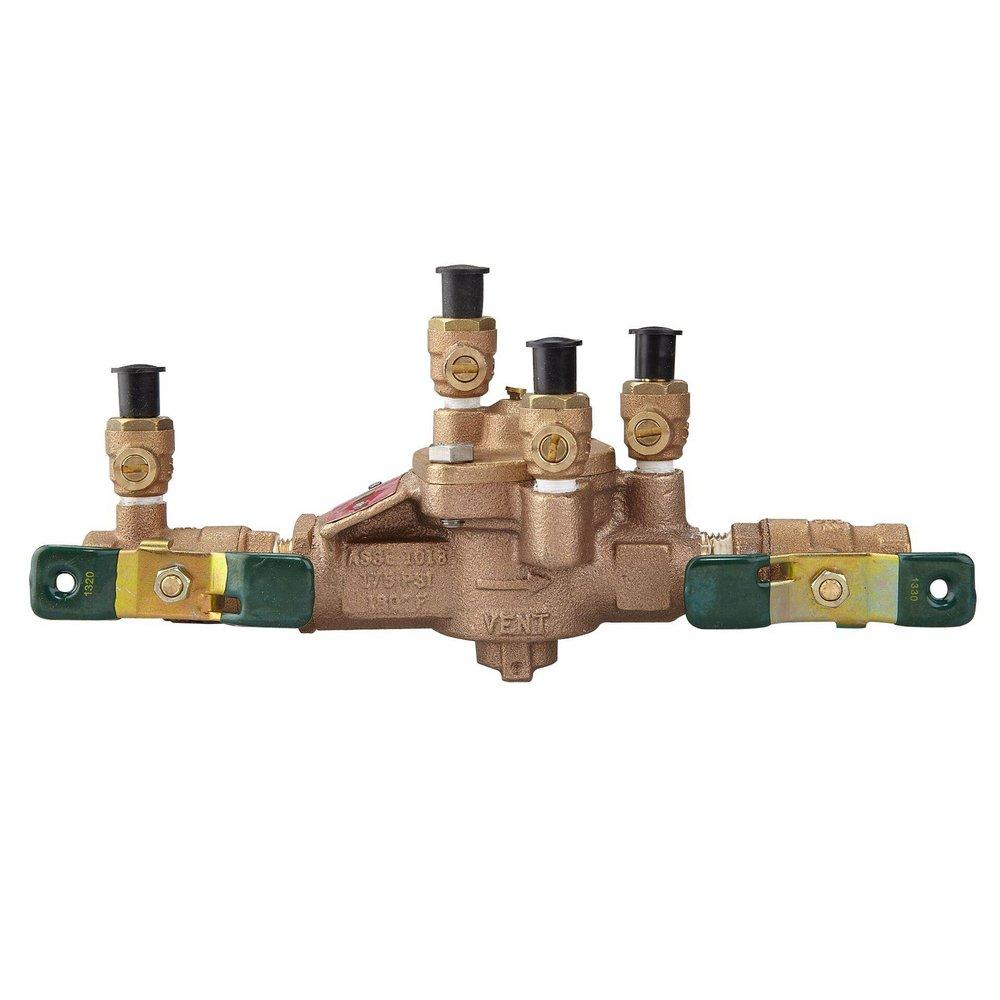

1/2 in. Bronze FPT Reduced Pressure Zone Assembly with Quarter Turn Shutoff Valves, Cap & Tether and Backflow Flood Sensor

Watts

Series 009 1/2 in. Bronze FPT Reduced Pressure Zone Assembly with Quarter Turn Shutoff Valves, Cap & Tether and Backflow Flood Sensor

  • Fast #
  • Part #W009QTCTFS12
  • Item #9894460
  • Manufacturer Part #88004072
4.7 out of 5 Customer Rating
Brand image
Watts Bronze Bronze FNPT 175 psi Backflow Preventer
Watts Bronze Bronze FNPT 175 psi Backflow Preventer
Watts

Series 009 1/2 in. Bronze FPT Reduced Pressure Zone Assembly with Quarter Turn Shutoff Valves, Cap & Tether and Backflow Flood Sensor

  • Fast #
  • Part #W009QTCTFS12
  • Item #9894460
  • Manufacturer Part #88004072
4.7 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Leesburg, VA
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Bronze body construction for durability
  • NPT inlet and outlet connections
  • Cap and tether to protect test cocks from dirt and debris
  • Quarter turn full port resilient seated ball valve shutoffs
  • Large body passages provides a low pressure drop
  • Captured springs for safe maintenance
  • Internal relief valve for reduced installation clearances
  • Replaceable seats for an economical repair
  • Test cocks are screwdriver slotted
  • Requires Certification
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Height
5 in
Pressure - Maximum
175 psi
Valve Size
1/2 in
Weight
5 lb
Width
7-1/4 in
Included Components
Included
Flood Sensor, Quarter-Turn Ball Valve(s)
Characteristics & Features
Coating
Polymer
Collection
Series 009
Installation Type
Horizontal
Material
Bronze, Stainless Steel, Plastic
Material Type
Silicone
Number of Handles
Two Handle
Proposition 65
CALIFORNIA PROP 65 WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Valve Body Material
Bronze
Valve Body Style
Inline
Valve Disc Material
Silicone
Valve Material
Bronze
Valve Operator
Quarter Turn Handle
Valve Port Opening
Full Port
Valve Seat Material
Stainless Steel
Valve Type
Reduced Pressure Zone Assembly
Electrical & Operational Information
Maximum Temperature
180
Minimum Temperature
33
Warranty & Product Information
ASSE Standards
ASSE 1013
AWWA
AWWA C-511-92
BAA Compliant
Yes
CSA Certified
CSA B64.4
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Applicable to Lead Leaching, Not Compliant
NSF Certified
No
Recommended Valve Application
Commercial, Industrial
UL Listed
Yes
UPC
098268347050
