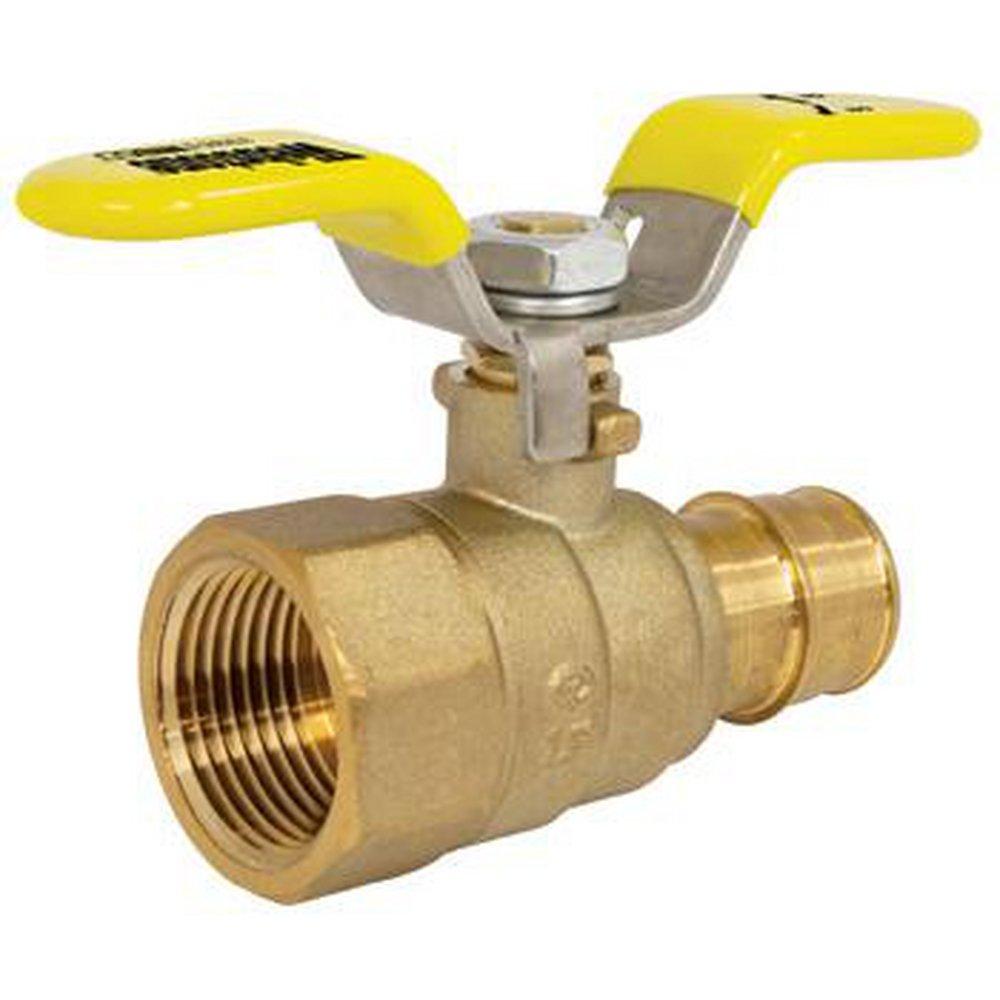

3/4 in. Forged Brass Full Port F1960 x FIPS 400# Ball Valve
Webstone a brand of NIBCO
3470W Series 3/4 in. Forged Brass Full Port F1960 x FIPS 400# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 10 Case: 60
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Webstone a brand of NIBCO
3470W Series
3/4 in. Forged Brass Full Port F1960 x FIPS 400# Ball Valve
H-34703WSSW
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Dimensions & Measurements
End Connection 1
PEX Expansion
End Connection 2
FPT
End Connections
PEX Expansion x FPT
Height
1-7/8 in
Length
2-63/100 in
Pressure Class
400#
Valve Size
3/4 in
Characteristics & Features
Clean Bagged
No
Collection
3470W Series
Handle Material
Stainless Steel
Material
Brass, Plastic, Stainless Steel, Steel
Material Type
PTFE, Vinyl
Valve Body Material
Brass
Valve Operator
T-Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
250
Pressure - High
400
Temperature Range
Up to 250 Deg F
Warranty & Product Information
ANSI
ANSI 14, ANSI 372, ANSI 61
ASME
ASME B1.20.1
ASTM
ASTM F-1960
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 14, NSF 372, NSF 61
NSF Certified
Yes
Origin
Global
Recommended Valve Application
Gas, Oil, Potable Water
UPC
018394011892
