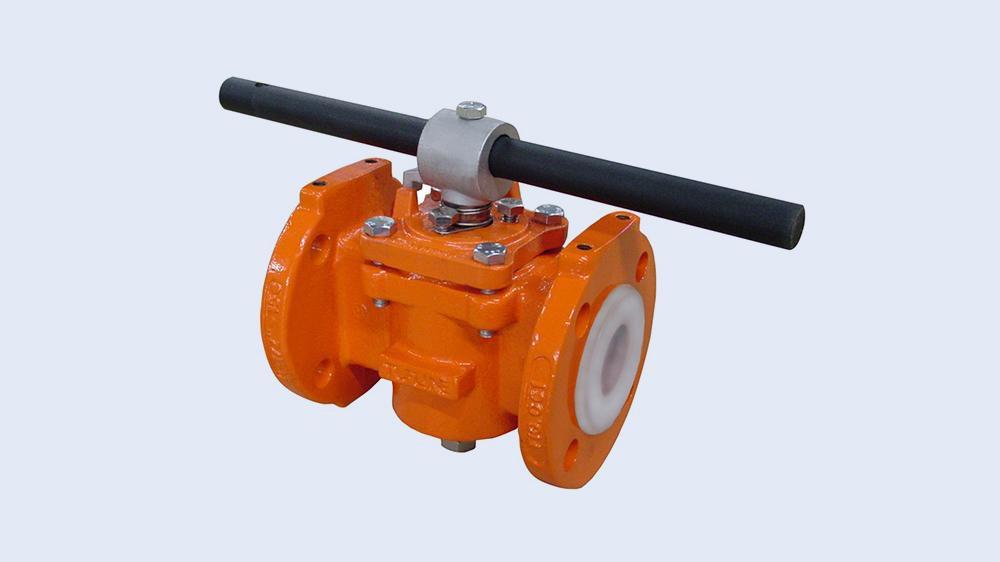

2 in. Ductile Iron Flanged Lockwing Handle Plug Valve
XOMOX
Figure 061 2 in. Ductile Iron Flanged Lockwing Handle Plug Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
XOMOX
Figure 061
2 in. Ductile Iron Flanged Lockwing Handle Plug Valve
061-1-P6-2-P6-WY 2
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Locked in liner: There are no cavities where flow media can accumulate or contaminate
- Large seal area: Cast-in ribs behind the body lining concentrate compression of the lining between the ribs and the plug
- This assures a full circumferential in-line seal
- There is also a full circumferential seal around the plug, both above and below the flow passage
- In-line adjustments: The locked in lining resists shrinkage, collapse, and blow-out. Higher pressures and vacuums are easily handled
Documents
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
7 in
Pressure Class
150#
Valve Size
2 in
Characteristics & Features
Collection
Figure 061
Material
Ductile Iron, Carbon Steel
Material Type
PFA
Valve Body Material
Ductile Iron
Valve Body Style
2-way
Valve Operator
Lockwing Handle
Valve Type
Plug Valve
Warranty & Product Information
ANSI
ANSI B16.34
ASME
ASME B16.34
ASTM
ASTM D-5162
FM Approved
No
MSS
MSS SP-61
Recommended Valve Application
Benzene, Bromine, Chlorine, Hydrochloric Acid, Nitric Acid, Phosphoric Acid, Sea Water, Sulphuric Acid
