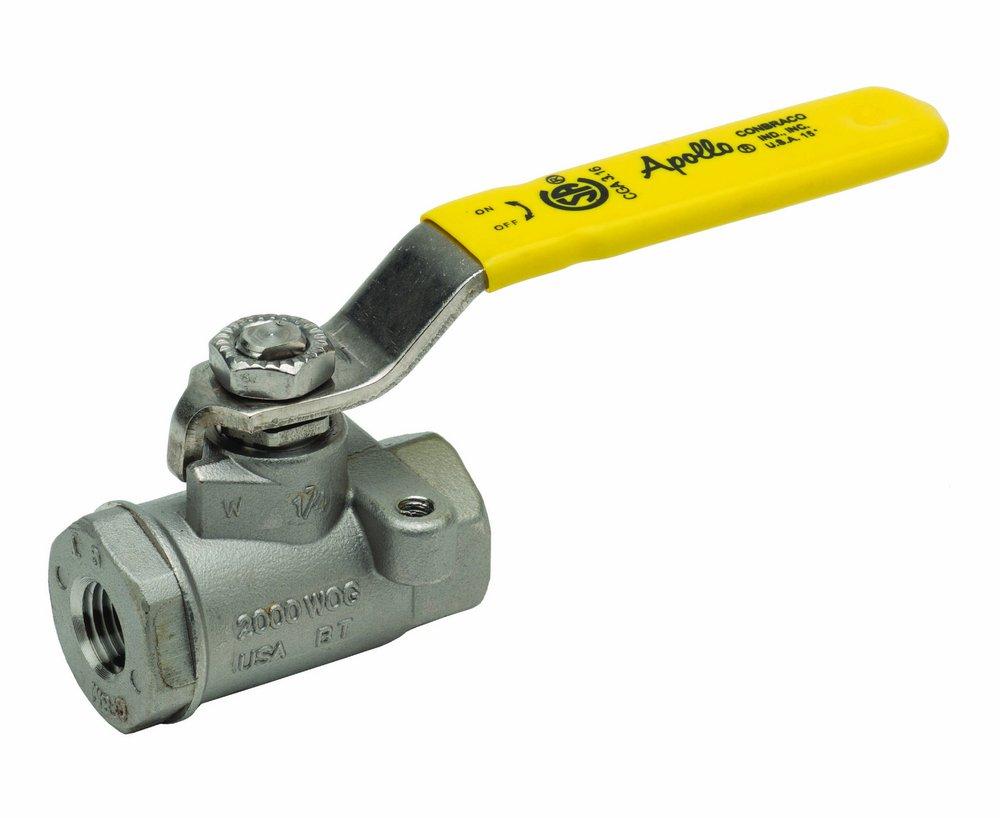

1/4 in. Stainless Steel Standard Port FNPT 2000# Ball Valve
Apollo Valves
76-100 Series 1/4 in. Stainless Steel Standard Port FNPT 2000# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Apollo Valves
76-100 Series
1/4 in. Stainless Steel Standard Port FNPT 2000# Ball Valve
7610147A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Investment cast components
- Reinforced seats
- Mounting pad for easy actuator mounting
- Blowout-proof stem design
- Adjustable packing gland
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
2-1/20 in
Pressure Class
2000#
Pressure - Maximum
2000 psi
Valve Size
1/4 in
Weight
0.705 lb
Characteristics & Features
Clean Bagged
No
Collection
76-100 Series
Handle Material
Stainless Steel
Material
Stainless Steel
Material Type
CF8M
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Stainless Steel
Valve Body Style
2 piece
Valve Disc Material
Stainless Steel
Valve Operator
Latch Lock Oval Handle
Valve Port Opening
Standard Port
Valve Seat Material
RPTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
600
Minimum Temperature
-20
Pressure - High
150
Temperature Range
-20 to 600 Deg F
Warranty & Product Information
ANSI
ANSI 61, ANSI 373
ASME
No
ASSE Standards
No
ASTM
ASTM A-351 CF8M
AWWA
No
CSA Certified
CSA 3.16-M88
cUPC Certified
No
Fire Suppression System Rated
No
FM Approved
No
IAPMO Listed
No
ISO
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MA Approved
No
MSS
MSS SP-110
NSF
NSF 61, NSF 372
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water, Steam
UL Listed
No
UPC
670750248177
