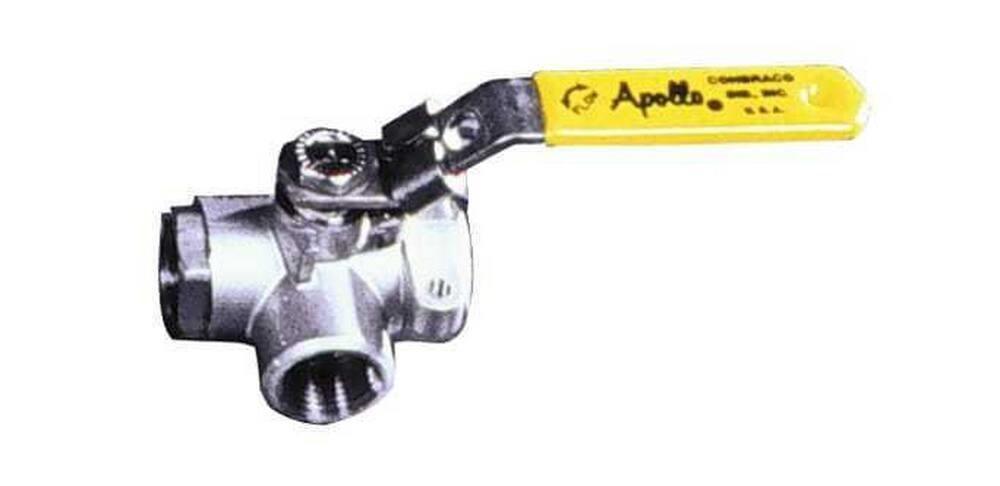

3/4 in. Stainless Steel Standard Port FNPT 800# Ball Valve
Apollo Valves
76-100 Series 3/4 in. Stainless Steel Standard Port FNPT 800# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 6 Case: 18 Pallet: 486
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Apollo Valves
76-100 Series
3/4 in. Stainless Steel Standard Port FNPT 800# Ball Valve
7660427A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Investment cast components
- Mounting pad for easy actuator mounting
- Blowout proof stem design
- Adjustable packing gland
- Reinforced seats
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
FNPT
End Connection 2
FNPT
End Connection 3
FNPT
End Connections
FNPT
Length
2-24/25 in
Pressure Class
800#
Valve Size
3/4 in
Weight
1.30 lb
Characteristics & Features
Clean Bagged
No
Collection
76-100 Series
Handle Material
Stainless Steel
Material
Stainless Steel
Material Type
CF8M
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Style
3-way
Valve Operator
Latch Lock Lever Handle
Valve Port Opening
Standard Port
Valve Seat Material
RPTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
150
Warranty & Product Information
ANSI
ANSI 372, ANSI 61-8 Annex G
API
API 607
ASTM
ASTM A-276 Type 316, ASTM A-351 Grade CF8M, ASTM A-494 CZ100
CSA Certified
CSA CGA 3.16-M88
FM Approved
No
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110
NSF
NSF 372, NSF 61-8 Annex G
NSF Certified
Yes
Recommended Valve Application
Commercial, Industrial, Water
UL Listed
No
UPC
670750238888
