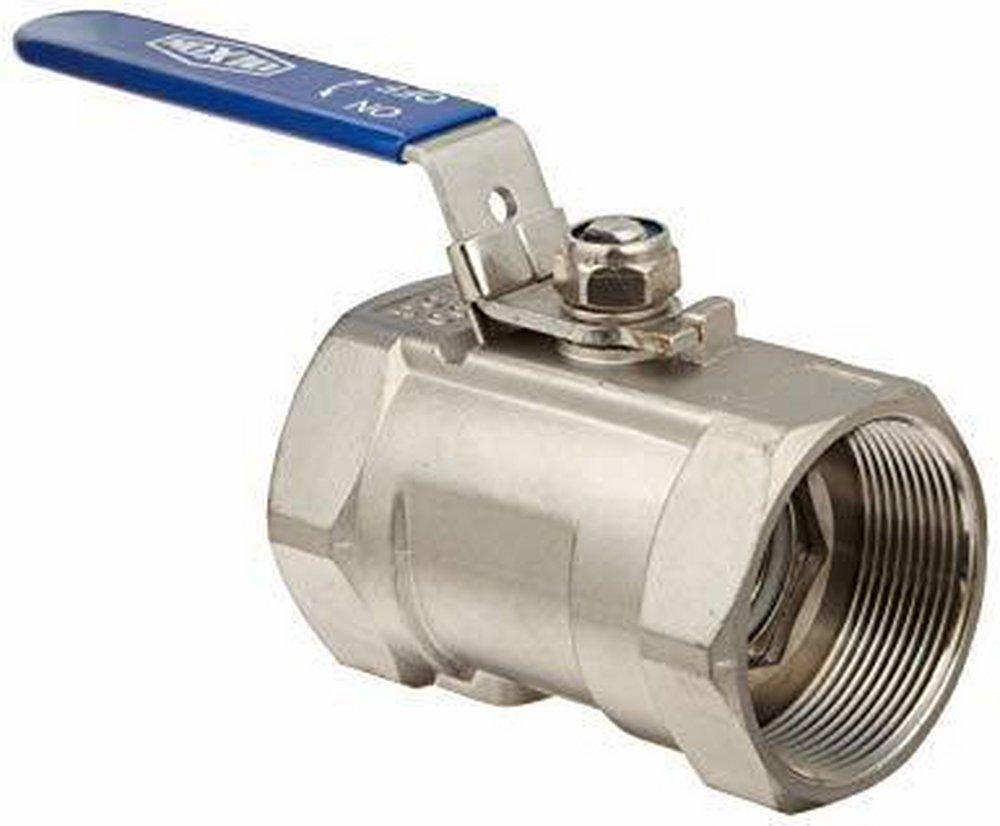

1-1/2 in. Stainless Steel Reduced Port NPT 800# Ball Valve
Inline Ball Valve
101R Series 1-1/2 in. Stainless Steel Reduced Port NPT 800# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Inline Ball Valve
101R Series
1-1/2 in. Stainless Steel Reduced Port NPT 800# Ball Valve
101R-C6666-TTTT-2S
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Documents
Dimensions & Measurements
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT
Length
3-23/100 in
Pressure Class
800#
Valve Size
1-1/2 in
Weight
2 lb
Characteristics & Features
Clean Bagged
No
Collection
101R Series
Handle Material
Stainless Steel
Material
Stainless Steel
Material Type
316
Valve Body Style
1 piece
Valve Operator
Locking Lever Handle
Valve Port Opening
Standard Port
Valve Seat Material
PTFE
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
450
Minimum Temperature
-40
Warranty & Product Information
ANSI
ANSI B16.34
API
API 598
ASME
ASME B16.34
ASTM
ASTM A-351 Grade CF8M
FM Approved
No
IAPMO Listed
No
MSS
MSS SP-110
NSF Certified
No
Origin
Domestic
Recommended Valve Application
Gas, Industrial, Oil, Water
UL Listed
No
