Spray Assembly, 8" Wall Mount Base Faucet, VB Outlet, Angled Spray Valve, 68" Flex SS Hose

You last purchased this on

T&S Brass

Spray Assembly, 8" Wall Mount Base Faucet, VB Outlet, Angled Spray Valve, 68" Flex SS Hose

This product requires certification to purchase.
Brand image

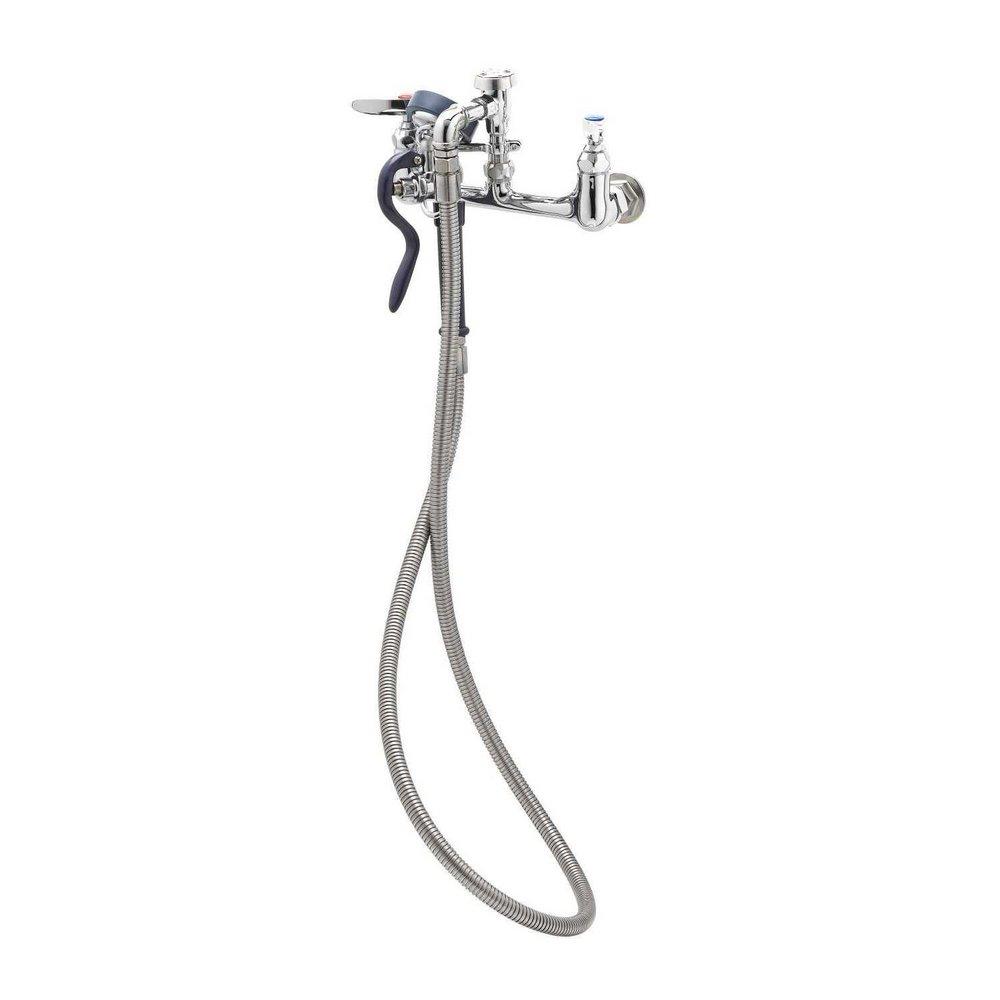

T&S Brass Polished Chrome Plated Pre-Rinse Faucet with Spray and Double Lever Handle
You last purchased this on

T&S Brass

Spray Assembly, 8" Wall Mount Base Faucet, VB Outlet, Angled Spray Valve, 68" Flex SS Hose

  • Fast #
  • Part #TB0167
  • Item #868407
  • Manufacturer Part #B-0167
3.2 out of 5 Customer Rating
This product requires certification to purchase.
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page
Color Finish Name: Polished Chrome Plated Select Color Finish Name
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

  • 3/8" NPT vacuum breaker
  • 68" flexible stainless steel hose with heat resistant blue handle and hold down ring
  • 8" wall mount mixing faucet with polished chrome plated brass body
  • Adjustable centers from 7-3/4 in to 8-1/4 in
  • Lever handles with color coded indexes
  • 1/2" NPT female eccentric inlets with 2 in flanges
  • Quarter-turn eterna compression cartridges with spring checks to prevent crossflow of water
  • High flow blue angled spray valve
  • Material: Polished chrome plated brass body, inlets, spray valve body, stainless steel hose and chrome plated metal handles
  • Requires Certification

  • Lead Law Compliant

Recommended Accessories

Specifications

ADA Compliant:
No
ANSI:
ANSI 372, ANSI 61
ASME:
ASME A112.18.1
ASSE Standards:
ASSE 1001
Adjustable:
Yes
Application:
Commercial
BAA Compliant:
Yes
CARB OTC LEED Compliant:
No
CSA Certified:
CSA B125.1
Cartridge Type:
Compression
Color Finish Category:
Chromes
Color Finish Name:
Polished Chrome Plated
Faucet Center Size:
8 in
Faucet Connection:
FNPT
Faucet Connection Size:
1/2 in
Faucet Material:
Brass
Faucet Mount:
Wall Mount
Flow Rate:
3.93 gpm
GSA Approved:
No
Handle Included:
Yes
Handle Material:
Metal
Handle Type:
Lever
Hose Length:
68 in
IAPMO Listed -:
No
ISO:
ISO 9001
Institutional Faucet Type:
Food Service
Lead Law Compliance Level:
Lead Free and Lead Leaching Compliant
Lead Law Compliant:
Yes
MA Approved -:
Yes
Material:
Stainless Steel
Minimum Temperature:
40
NSF:
NSF 372, NSF 61-9
NSF Certified:
Yes
Number of Handles:
Two Handle
Number of Holes:
2 Hole
Origin:
Domestic
Pressure - Maximum:
125 psi
Pressure - Minimum:
20 psi
Product Type:
Manual, Faucet
Spout Type:
Low Arc
Temperature Range:
40 to 140 Deg F
UL Listed:
No
Vacuum Breaker:
No
WaterSense Labeled:
No
Weight:
10.00 lb
Width:
12-5/8 in
