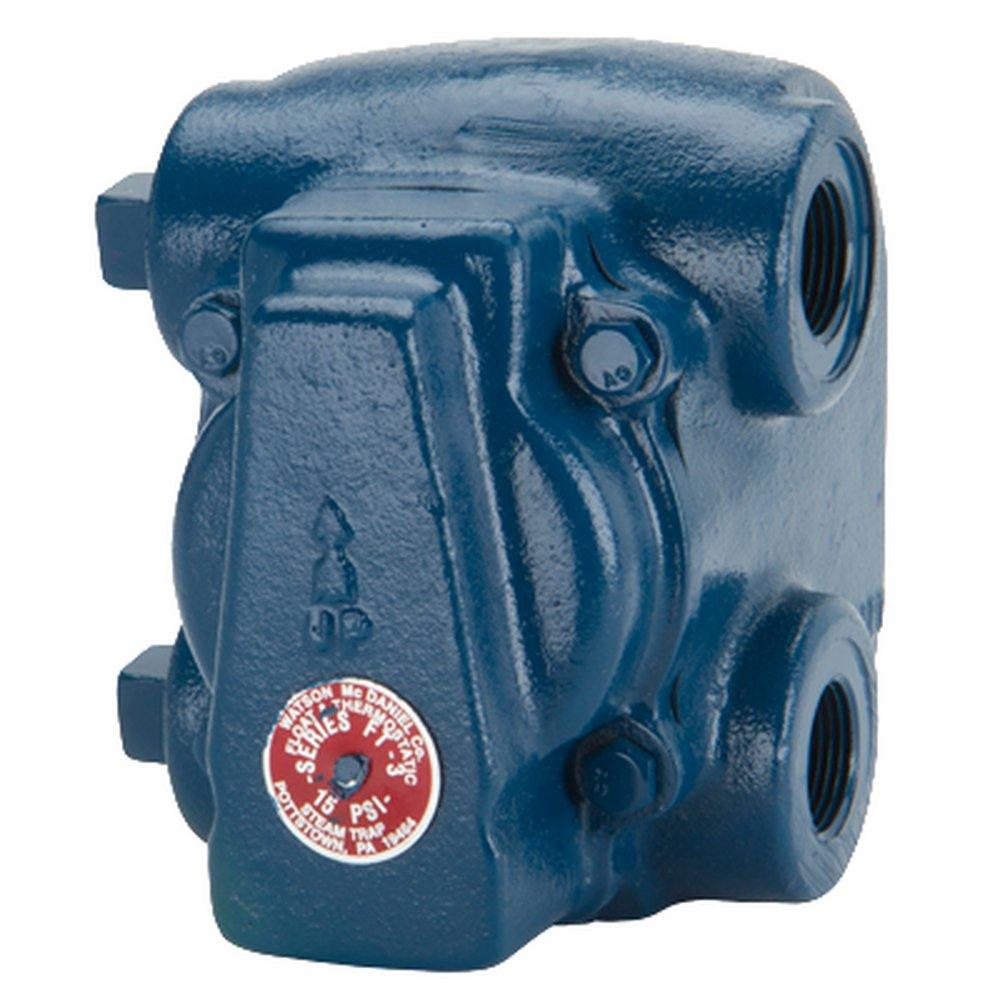

1-1/2 in. Steam Trap
Watson McDaniel
FT Series 1-1/2 in. Steam Trap
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Watson McDaniel
FT Series
1-1/2 in. Steam Trap
FT7-015-16-N
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- H-pattern design allows piping from either side of the steam trap (there are two inlet ports at top and two outlet ports at bottom)
- F&T traps have excellent air handling capability allows air to be discharged rapidly and steam to enter the system quickly during start-up
- Welded stainless steel thermostatic air vent resists shock from waterhammer
- In-line repairable (all internals are attached to cover)
Dimensions & Measurements
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT
Height
7-17/25 in
Pressure Class
15#
Pressure - Maximum
75 psig
Valve Size
1-1/2 in
Characteristics & Features
Collection
FT Series
Valve Body Material
Cast Iron
Valve Body Style
H Pattern
Valve Disc Material
Stainless Steel
Valve Seat Material
Stainless Steel
Warranty & Product Information
ASTM
ASTM A-126 Class B
Recommended Valve Application
Industrial, Steam, Water Heaters
Type
J4A2236XTF
UL Listed
No
