Choosing the right pipe. Type L vs. Type M vs. Type K copper pipe
Choosing the right copper pipe for the job ensures a proper install that offers long-lasting, reliable performance for water supply and heating and cooling applications. The differences between Type K, Type L, and Type M copper dictate how the pipe handles pressure, water chemistry, and jobsite handling. Choosing the wrong pipe can lead to failed joints, premature leaks, and costly callbacks.
This guide breaks down the physical specifications and practical, on-the-job differences between the three main types of copper pipe, helping you select the right material for your next installation or service call.
Types of copper pipe: The core differences

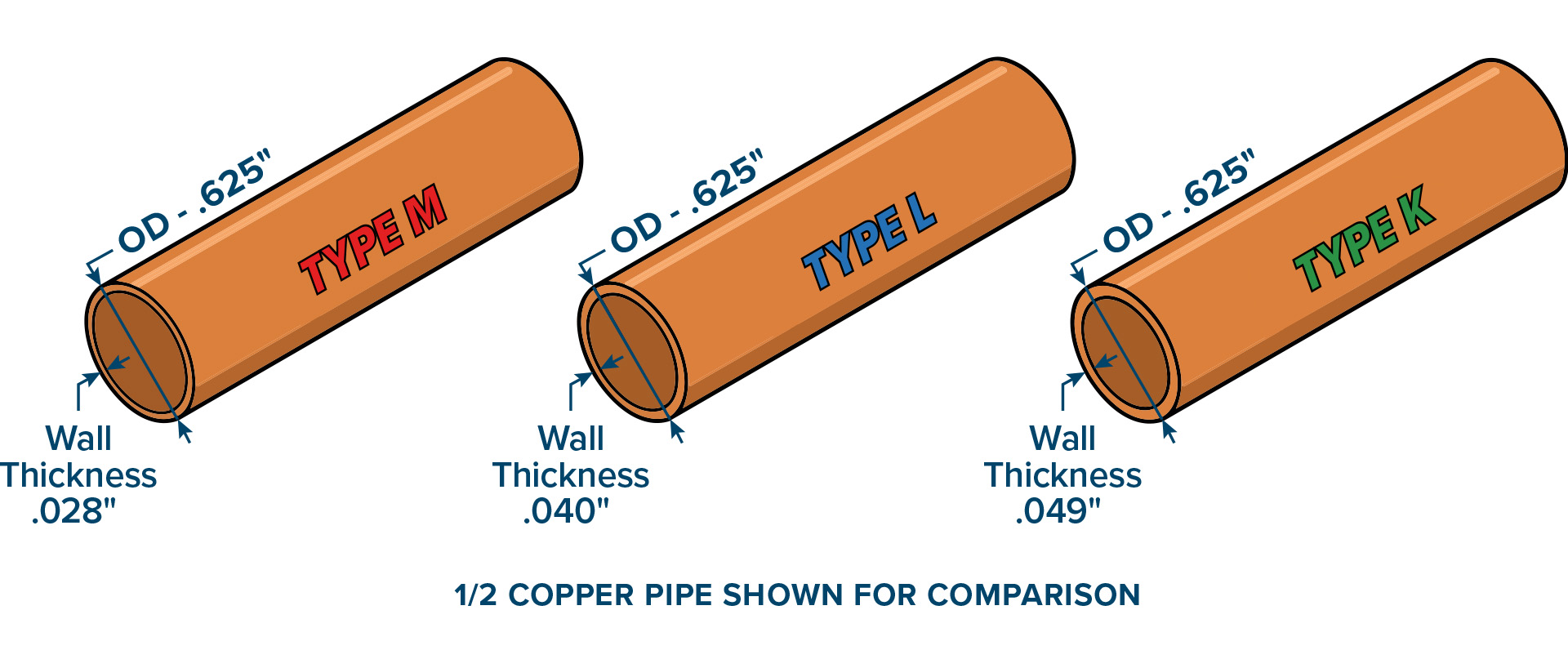

The primary distinction between Type M and Type L copper is the thickness of the pipe wall. For any given nominal diameter, the outside diameter (OD) remains exactly the same so they fit the same standard fittings. The inside diameter (ID), however, changes based on how thick the copper wall is.
Type M (Red Markings): The thinnest wall of the three. It uses the least amount of copper, making it the most cost-effective but limiting its pressure capacity.
Type L (Blue Markings): The medium-thickness option. It is the professional standard for most indoor potable water applications.
Type K (Green Markings): The thickest, heaviest, and most durable option. It is built for extreme conditions, high pressures, and direct burial.
Technical specifications: Sizing, weight, pressure, and cost
To understand how these pipes perform on the job, it helps to look at the raw numbers. The chart below compares the specifications for the two most common sizes (½-inch and ¾-inch) of rigid (drawn) copper tubing.
Note: Safe working pressures decrease as system temperatures increase. The pressures below are typical estimates at 150°F for drawn pipe. Always consult manufacturer specs and local codes.
| Specification | Type M Copper (Red) | Type L Copper (Blue) | Type K Copper (Green) |
|---|---|---|---|
| Wall Thickness (½-inch) | 0.028" | 0.040" | 0.049" |
| Wall Thickness (¾-inch) | 0.032" | 0.045" | 0.065" |
| Weight per Foot (½-inch) | ~0.204 lbs | ~0.285 lbs | ~0.344 lbs |
| Weight per Foot (¾-inch) | ~0.328 lbs | ~0.455 lbs | ~0.641 lbs |
| Working Pressure (½-inch @ 150°F) | ~285 psi | ~420 psi | ~540 psi |
| Working Pressure (¾-inch @ 150°F) | ~235 psi | ~340 psi | ~455 psi |
| Relative Material Cost | Lowest ($) | Moderate ($$) | Highest ($$$) |
Copper piping handling & installation
Whether you are sweating joints with solder, brazing, or using a press tool, the joining methods remain consistent across all three types. However, wall thickness drastically changes how the pipe behaves in your hands.
| Handling Factor | Type M (Thin Wall) | Type L (Medium Wall) | Type K (Thick Wall) |
|---|---|---|---|
| Cutting & Deburring | Prone to crimping; requires a light touch to avoid flaring. | Forgiving; holds its shape well against standard cutters. | Extremely rigid; takes more effort and dulls cutting wheels faster. |
| Press Fitting Compatibility | Compatible, but pipe must be perfectly round. Dents easily. | Highly recommended; rigidity ensures a solid, even press seal. | Compatible; excellent structural integrity for pressing. |
| Jobsite Durability | Susceptible to dings and dents if dropped or stepped on. | Strong enough for standard commercial and residential sites. | Maximum durability; withstands heavy jobsite abuse. |
On the Job: When you are roughing in a busy commercial site, Type M's thin walls could pose a liability if other trades are working around your pipe. Type L offers the sweet spot of workability and strength. Type K is heavy and takes longer to cut, but it will remain durable throughout various pressure conditions.
Copper pipe pressure ratings & performance differences
Once the pipe is pressurized, the physical differences become a matter of long-term durability and serviceability.
- Water velocity and turbulence: Fast-moving water and constantly circulating hot water gradually erode the inside of copper pipe. Type L and Type K provide the necessary thickness to withstand long-term erosion, while Type M poses the potential to develop pinholes faster under high velocity.
- Water chemistry: In areas with hard water, low pH (acidity), or high dissolved oxygen, water will aggressively attack copper. Type K and Type L will maintain performance longer when faced with corrosive elements. Type M is generally acceptable and safe for drinking water, but it is important to check local water quality regulations to ensure compatibility.
- Underground environments: Soil chemistry, shifting earth, and surface weight will crush or corrode thin copper. Type M and Type L are generally not suited for direct burial without extensive protection. Type K is explicitly designed to handle the structural and chemical stress of being buried in dirt or under a slab.
Piping applications for Type M, Type L, & Type K copper
Local plumbing codes are the ultimate authority, and they vary heavily. Always verify with your local inspector. However, industry best practices generally dictate the following applications:
| Application / Use Case | Recommended Copper Type | Why? |
|---|---|---|
| Underground Water Service Lines | Type K | Withstands soil pressure, shifting, and ground chemistry without collapsing. |
| Underground or Under-Slab Routing | Type K (or heavy-sleeved L) | Prevents inaccessible leaks under concrete foundations. |
| Domestic Potable Water (Indoor) | Type L | The professional standard. Thick enough to resist water hammer and corrosion; cost-effective enough for whole-building runs. |
| Commercial Water Distribution | Type L or Type K | Handles higher commercial pressures, velocity, and heavy jobsite conditions. |
| Hot Water Recirculation Loops | Type L or Type K | Resists the constant erosion-corrosion caused by continuous water flow. |
| Hydronic Heating (Closed-Loop) | Type M | Low pressure, purged of oxygen, and treated water means corrosion isn't a factor. The most cost-effective choice. |
| Condensate Drains & DWV | Type M | Gravity-fed, non-pressurized applications don't require thick walls. |
Copper pipe selection guide
Making the right material call balances job requirements, risk management, and your budget.
Use Type K copper when:
- You are running water service lines underground from the meter to the building.
- Pipes are being buried directly under a concrete slab.
- You are working on commercial or industrial jobs with exceptionally high water pressure requirements.
- Local code mandates maximum durability.
Use Type L copper when:
- You are piping standard residential or commercial interior potable water lines.
- You are installing a domestic hot water recirculation system.
- You want to minimize the risk of callbacks due to pinhole leaks or aggressive local water chemistry.
- You are utilizing press fittings on a fast-paced job site where pipe rigidity matters.
Use Type M copper when:
- You are installing a closed-loop hydronic heating system (baseboards, radiators).
- You are running HVAC condensate drains.
- The application is strictly low-pressure, non-potable, and not subject to internal erosion or external abuse.
Choosing the right copper pipe protects your work and your reputation. Type K is your heavy-duty solution for underground and high-stress environments. Type L is your everyday, reliable standard for potable water. Type M is your cost-effective problem solver for low-pressure heating and drainage.
