Working with load bearing walls: A pro’s guide
Every plumbing and HVAC professional knows the inherent risks of opening up a residential wall during a rough-in or retrofit. Discovering mid-job that the framing you intend to cut into is carrying the weight of the structure above can cause significant project delays. Understanding how to tell if a wall is load bearing before you start drilling for a 3-inch PVC drain line or cutting plates for a new return duct is critical. Modifying a structural wall without proper temporary support or engineered solutions can lead to catastrophic structural failure, severe liability, and immediate code violations.
Understanding the structural envelope

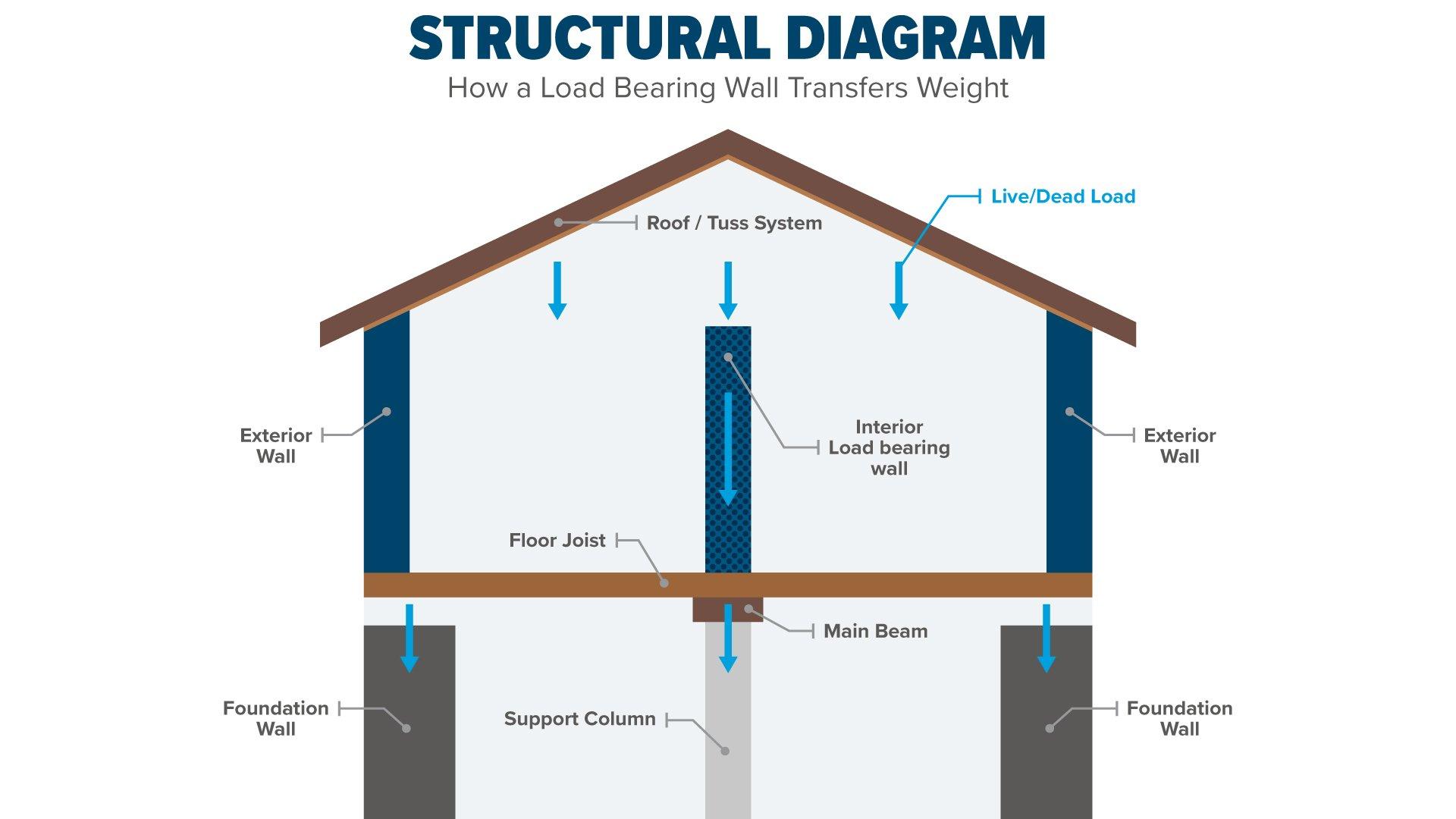

A home’s framing is a continuous system designed to transfer the dead load (the weight of the building materials) and the live load (people, furniture, snow) down to the foundation. A non-load bearing wall, often called a partition wall, simply divides space and only supports its own weight. A structural wall, on the other hand, holds up the floors or roof above it.
When mapping out plumbing vents, waste lines, or HVAC trunk lines, partition walls are your preferred pathways. They offer flexibility for drilling and cutting within standard building code limits. Structural walls require careful planning, strict adherence to boring and notching codes, and sometimes structural modifications.
How to tell if a wall is load bearing on the job site
Identifying load bearing walls requires a systematic approach. Before you reach for your reciprocating saw, use these professional techniques to assess the framing.
Consult blueprints and look for a load bearing wall diagram
The most reliable method for how to determine a bearing wall is to consult the original architectural blueprints or structural plans. A load bearing wall diagram will explicitly mark which interior walls are structural and where specific point loads are located. If blueprints are unavailable, you must rely on visual inspection and structural tracing.
Trace the load bearing wall beam from the foundation
Start in the lowest level of the home, such as the unfinished basement or crawlspace. Look for the main support beams for homes — often steel I-beams or multi-ply dimensional lumber girders resting on concrete columns or foundation walls. Any wall located directly above and running parallel to these main support beams is almost certainly a load bearing wall.
Examine the floor and ceiling joists
The direction of the joists is a key indicator. Walls that run perpendicular to the floor joists or roof trusses above them are typically bearing the load of those spans. If the joists are spliced or joined directly over an interior wall, that wall is structural. Conversely, walls running parallel to the joists are usually non-load bearing, unless the wall is positioned directly beneath a single, doubled-up joist designed to carry a localized load.
Inspect the top plates and framing
Load bearing walls are typically constructed with a double top plate to distribute the load from the joists above. While some non-bearing walls may also have a double top plate for ease of construction, a single top plate almost always indicates a partition wall. You can use high-quality stud finders to map out the framing layout, locate headers over doors, and identify king and jack studs, which indicate load-bearing framing around openings.
Identify a load-bearing wall vs. A partition wall
| Identification Method | Load-Bearing Wall Indicators | Partition Wall Indicators |
|---|---|---|
| Blueprints & Architectural Plans | Explicitly marked as structural; often indicates point loads or structural shear walls. | Labeled as non-structural partition or curtain walls. |
| Foundation & Lower-Level Alignment | Sits directly above and runs parallel to main foundation walls, steel I-beams, or multi-plywood girders. | Offset from main support columns, girders, or beams. |
| Floor & Ceiling Joist Direction | Runs perpendicular to floor joists or roof trusses or supports spliced/joined joist ends. | Runs parallel to floor joists unless positioned directly beneath a doubled-up joist carrying a specific load. |
| Top Plates & Framing Layout | Constructed with a double top plate; features headers, king studs, and jack studs around openings. | May only feature a single top plate, though double plates are occasionally used for non-structural convenience. |
Building codes and legal considerations
Working in and around a load bearing wall carries significant legal and code compliance weight. As a licensed professional, you are responsible for ensuring that your work does not compromise the structural integrity of the home.
Permitting and inspections
Any modification to a structural wall requires a building permit. If your plumbing or HVAC work requires altering a bearing wall beyond standard boring and notching allowances, the local municipality will require a plan submission. Attempting to bypass this step can result in stop-work orders, fines, and the forced removal of your installed systems to repair the structural damage.
Liability and working with engineers
If a contractor improperly cuts a load bearing wall, the liability is immense. Floors can sag, drywall will crack, and in worst-case scenarios, partial collapse can occur. If your HVAC or plumbing layout requires removing sections of a bearing wall, always defer to a licensed structural engineer or the general contractor. Never take it upon yourself to remove load-bearing studs to make room for a bathtub drain or a return air drop without approved structural reinforcement plans.
Frequently asked questions
Can a plumber or HVAC tech safely cut into a load bearing wall?
Yes, but only within strict building code limits. The International Residential Code (IRC) dictates specific maximums for boring and notching studs and top plates in bearing walls. If your pipe or duct exceeds these limits, you must reroute or have the wall structurally reinforced by a framing contractor.
When might drilling into a load bearing wall be necessary?
Drilling, or boring, into a load-bearing wall becomes necessary when a primary vertical utility run, such as a main 3-inch or 4-inch plumbing waste stack, a refrigerant line set, or venting pipes, must align perfectly between floors. Because structural walls often run directly above foundation supports and align vertically through multiple stories, they frequently represent the only direct path to route utilities from a basement or crawlspace up to second-story bathrooms or attic-mounted HVAC air handlers.
How do you run HVAC ducts through a load bearing wall?
If the duct is small enough to fit within the stud cavity without compromising the top or bottom plates beyond code limits, it can be run vertically. For horizontal runs, or large vertical drops that require removing a stud, a proper header must be installed to transfer the load around the duct, similar to framing a window opening.
What happens if I accidentally cut a load bearing stud?
If a bearing stud is compromised, it must be repaired immediately. This usually involves "sistering" a new stud alongside the damaged one or installing a reinforcing strap, depending on what the local building inspector or a structural engineer dictates. It is crucial to address the error before the wall is closed up to prevent structural sagging and liability issues.
Identifying a load bearing wall is a fundamental skill that protects your HVAC or plumbing business from costly liability and ensures the safety of the homeowner. By understanding how to read the home’s framing — from the basement beams to the attic joists — you can plan code-compliant pipe and duct routes that keep your projects running smoothly. Whether you need reliable stud finders for framing layout or specialty air vents for your HVAC installations, visit Ferguson.com to access trusted brands and tap into the support of our knowledgeable associates.
