81 gal. Tall 198 MBH Commercial Natural Gas Water Heater
A.O. Smith

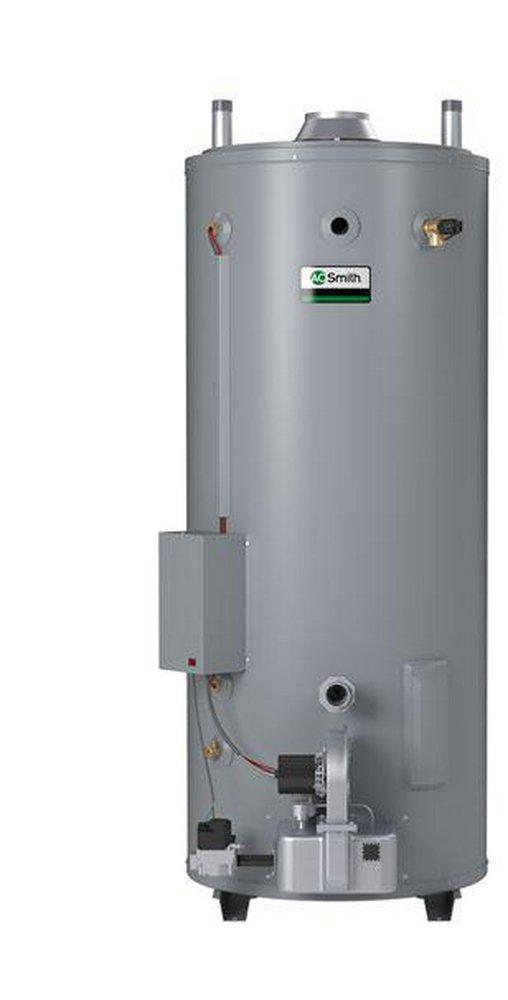

Master-Fit® 81 gal. Tall 198 MBH Commercial Natural Gas Water Heater
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
A.O. Smith
Master-Fit®
81 gal. Tall 198 MBH Commercial Natural Gas Water Heater
100120188
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Thermal efficiency of 80% means lower operating costs
- Fan assisted combustion - the blower is built into the low Nox burner assembly
- A stainless steel air flapper is used inside the premix system to replace externally mounted flue damper to minimize the standby heat loss and to minimize the overall heater height
- Metal venting - rated category I appliance and uses standard double wall type "B" vent
- Permaglas® Ultra Coat™ is applied after the complete tank has been assembled to give a seamless barrier against hot water corrosion
- Uses a smaller vent diameter than a natural draft water heater which saves on installation cost
- Fully automatic digital controls with safety shutoff
- Foam insulation saves fuel, helps reduce standby heat loss
- Intermittent ignition device eliminates standing pilot , provides flame failure response in less than one second and has a spark ignitor and power on/off switch
- Three-year limited tank and 1-year limited parts warranty
Specifications
- ANSI:
- ANSI Z21.10.3
- ASME:
- ASME HLW
- Application:
- Commercial
- BTU:
- 198000
- CEC Compliant:
- For Sale in CA
- CSA Certified:
- CSA 4.3
- Capacity:
- 81 gal
- Collection:
- Master-Fit®
- Depth:
- 37 in
- Diameter:
- 27-3/4 in
- Emission:
- Ultra-Low NOx
- Energy Star Compliant:
- No
- Fuel Type:
- Natural Gas
- Height:
- 63-3/4 in
- Lining of Tank:
- Glass
- MBH:
- 198
- Maximum Temperature:
- 180
- NSF:
- NSF 5
- NSF Certified:
- Yes
- Power Source:
- Gas
- Pressure - High:
- 160
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- UL Listed:
- Yes
- UPC:
- 671657178499
- Vent Type:
- Atmospheric Vent
- Volts:
- 120V
- Water Connection Size:
- 3/4 in
- Water Connections:
- Top
- Water Heater Capacity Range:
- 51 - 100 gal
- Water Heater Type:
- Tall
