40 gal. Short 40 MBH Low NOx Power Direct Vent Propane Water Heater

A.O. Smith

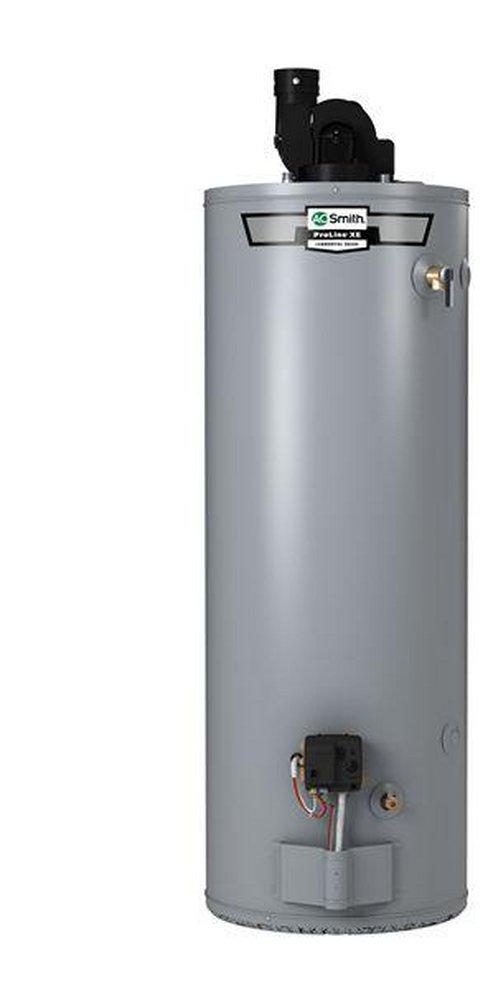

ProLine® XE 40 gal. Short 40 MBH Low NOx Power Direct Vent Propane Water Heater

  • Fast #
  • Part #AGPDL4001P040000
  • Item #5065960
  • Manufacturer Part #100304569
4.8 out of 5 Customer Rating
Brand image
A.O. Smith Tall 40 MBH Plumbing and Residential Propane Water Heater
A.O. Smith

ProLine® XE 40 gal. Short 40 MBH Low NOx Power Direct Vent Propane Water Heater

  • Fast #
  • Part #AGPDL4001P040000
  • Item #5065960
  • Manufacturer Part #100304569
4.8 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

Product Details

  • Energy Star qualified
  • Power direct vent design
  • Dynaclean diffuser dip tube helps reduce lime and sediment buildup and maximizes hot water out put and is made from long lasting PEX cross linked polymer
  • Hot surface ignitor is more robust and reliable than standing pilot, and reduces energy consumption
  • Blue Diamond glass coating provides superior corrosion resistance compared to industry standard glass lining
  • User-friendly state-of-the art electronic gas control provides more precise temperature control and has an LED control light which displays operation status and diagnostics information
  • CSA certified and ASME rated T&P relief valve
  • Enhances flow brass drain valve that is solid brass, tamper resistant, ball type
  • 6-year limited tank and parts warranty
  • Requires Certification

  • Green

Specifications

ANSI:
ANSI Z21.10.1, ANSI Z21.10.3
Application:
Residential
BTU:
40000
CEC Compliant:
For Sale in CA
CSA Certified:
CSA 4.1, CSA 4.3
Capacity:
40 gal
Collection:
ProLine® XE
Diameter:
22 in
Drain Valve Material:
Brass
ETL Listed:
No
Emission:
Low NOx
End Connections:
NPT
Energy Star Compliant:
No
First Hour Rating:
71
Fuel Type:
Propane
Height:
58-1/4 in
ISO:
No
MBH:
40
Maximum Temperature:
155
Power Source:
Gas
Pressure - Maximum:
150 psi
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Temperature Range:
Up to 155 Deg F
UL Listed:
No
Uniform Energy Factor (UEF):
0.71
Vent Type:
Power Direct Vent
Water Connection Size:
3/4 in
Water Connections:
Top
Water Heater Capacity Range:
30 - 40 gal
Water Heater Type:
Short
