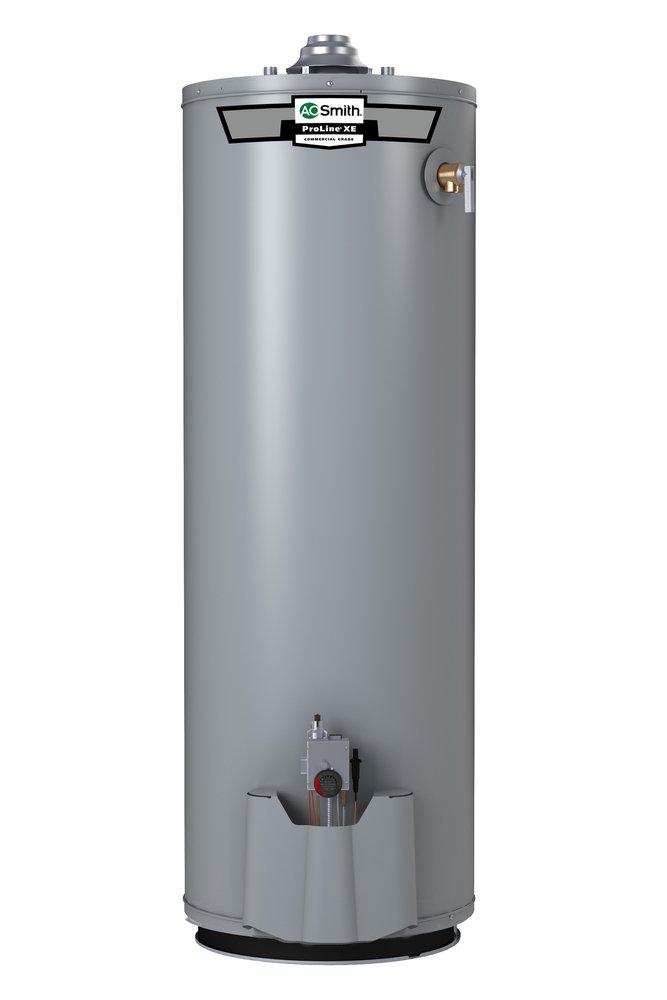

50 gal Tall 40 MBH Residential Natural Gas Water Heater
A.O. Smith
ProLine® XE 50 gal Tall 40 MBH Residential Natural Gas Water Heater
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
A.O. Smith
ProLine® XE
50 gal Tall 40 MBH Residential Natural Gas Water Heater
100366416
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Delivers 75-gallon first hour rating. 40,000 BTU input atmospheric vent design delivers up to 0.68 uniform energy factor. This gas water heater does not require electricity. Innovative non-powered flue damper design automatically opens and closes to reduce heat loss in standby mode
- Patented eco-friendly Green Choice® gas burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements. Push-button piezo ignitor makes lighting pilot fast & easy
- Patented Blue Diamond® glass tank lining protects against corrosion. DynaClean™ automatic cleaning system protects against sediment build-up. 6-year limited tank and parts warranty
- Introducing the ProLine® XE 50-gallon atmospheric vent natural gas water heater with non-powered flue damper-the only high efficiency gas product that does not require electricity
- This product uses an inlet air damper underneath the combustion chamber that operates using gas pressure. This damper reduces airflow through the heater during the off cycle or when water is not being heated
- Featuring a 50-gallon (nominal) tank and a 40,000 BTU gas burner, the GCD-50 standard vent delivers a first hour rating of 75 gallons and a recovery rate of 40 gallons per hour. This model features a 0.68 uniform energy factor and carries a 6-year limited warranty
- Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® XE water heater is designed with A. O. Smith's superior commercial-grade tank protection
- Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater
- This model also includes built-in dry-fire protection to protect the heating elements from damage during initial start up. All of these features are accompanied by a 6-year limited tank warranty
- A. O. Smith's ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors
-
Green
Specifications
- ANSI:
- ANSI Z21.10.1
- Application:
- Residential
- BTU:
- 40000
- CSA Certified:
- CSA 4.1
- Capacity:
- 50 gal
- Collection:
- ProLine® XE
- Diameter:
- 22 in
- Drain Valve Material:
- Brass
- Emission:
- Low NOx
- Energy Star Compliant:
- Yes
- First Hour Rating:
- 75
- Fuel Type:
- Natural Gas
- Height:
- 61-1/4 in
- Lining of Tank:
- Blue Diamond® Glass
- MBH:
- 40
- Power Source:
- Gas
- Pressure - Maximum:
- 300 psi
- UPC:
- 671657285456
- Uniform Energy Factor (UEF):
- 0.68
- Vent Type:
- B-Vent
- Water Connection Size:
- 3/4 in
- Water Connections:
- Top
- Water Heater Capacity Range:
- 41 - 50 gal
- Water Heater Type:
- Tall
