75 gal. Tall 76 MBH Low NOx Power Vent Natural Gas Water Heater

You last purchased this on

A.O. Smith

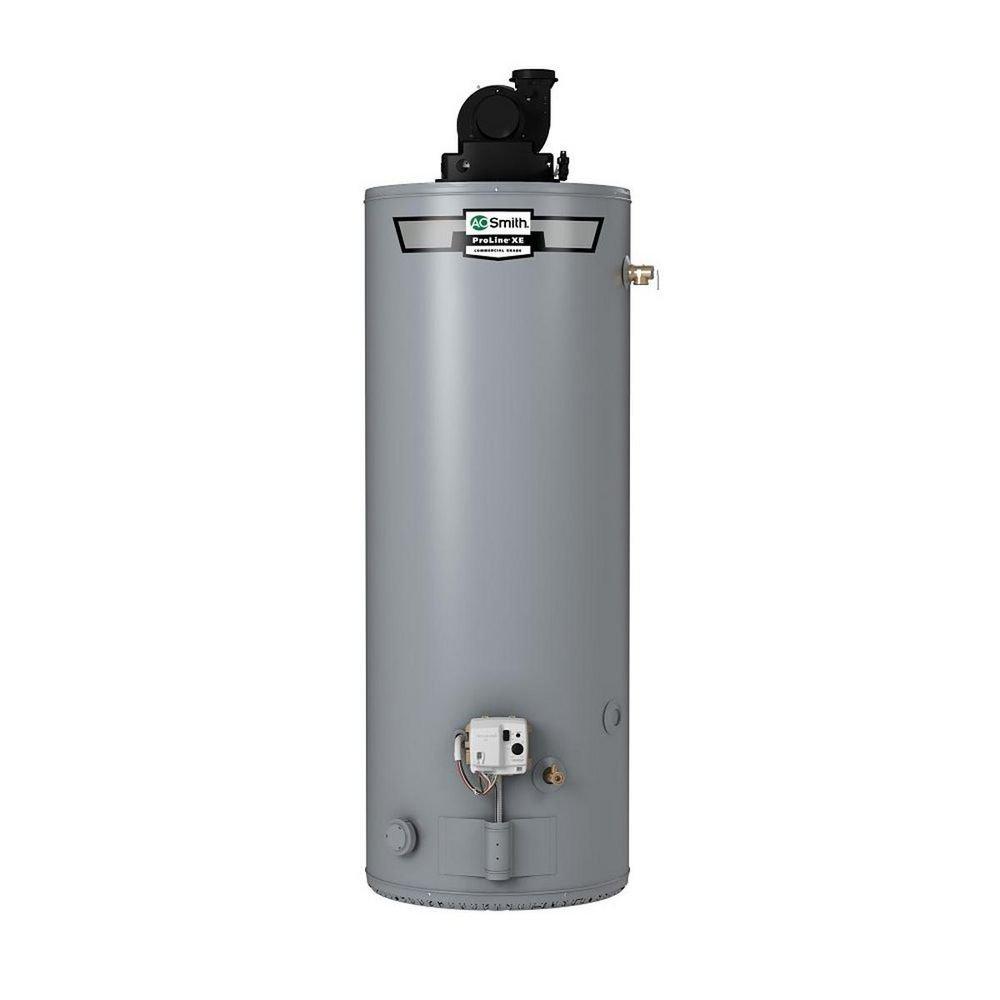

ProLine® XE 75 gal. Tall 76 MBH Low NOx Power Vent Natural Gas Water Heater

  • Fast #
  • Part #AGPVX75L00L010000
  • Item #4502118
  • Manufacturer Part #100310836
3.8 out of 5 Customer Rating
Brand image
You last purchased this on

A.O. Smith

ProLine® XE 75 gal. Tall 76 MBH Low NOx Power Vent Natural Gas Water Heater

  • Fast #
  • Part #AGPVX75L00L010000
  • Item #4502118
  • Manufacturer Part #100310836
3.8 out of 5 Customer Rating

X Points
EACH

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

Product Details

  • 40 and 50-gallon models vent using 2", 3" or 4" Schedule 40 PVC, CPVC or ABS pipe
  • System versatility allows combined horizontal and vertical vent runs up to 120 equivalent feet with 3" pipe, up to 160 equivalent feet with 4" pipe on 40,000 BTU and 50,000 BTU models
  • All models supplied with termination elbow and screens
  • Equipped with a nearly indestructible silicon nitride hot surface ignitor – no standing pilot
  • Advanced electronics for more precise control of water temperature and easy to under-stand system diagnostics
  • Side-mounted gas connection simplifies installation
  • Specifically designed and manufactured by A. O. Smith electrical products
  • Equipped with 110/120 volt electrical system, rating 3 amps or less
  • 6-foot cord with standard 3-prong male connector
  • Reduces harmful lime and sediment buildup; maintains efficiency and maximizes tank life
  • Requires Certification
  • Green


Specifications

ANSI:
ANSI Z21.10.1, ANSI Z21.10.3
Application:
Residential
BTU:
76000
CEC Compliant:
For Sale in CA
CSA Certified:
CSA 4.1, CSA 4.3
Capacity:
75 gal
Collection:
ProLine® XE
Diameter:
26 in
Drain Valve Material:
Brass
ETL Listed:
No
Emission:
Low NOx
Energy Star Compliant:
No
First Hour Rating:
116
Fuel Type:
Natural Gas
Height:
70-5/8 in
Lining of Tank:
Blue Diamond® Glass
MBH:
76
Maximum Temperature:
155
Power Source:
Gas
Pressure - Maximum:
150 psi
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Recovery 90°F Rise GPH:
86
Smart Home Enabled:
No
Temperature Range:
Up to 155 Deg F
UL Listed:
Yes
Uniform Energy Factor (UEF):
0.69
Vent Type:
Power Vent
Water Connection Size:
3/4 in
Water Connections:
Side
Water Heater Capacity Range:
51 - 100 gal
Water Heater Type:
Tall
