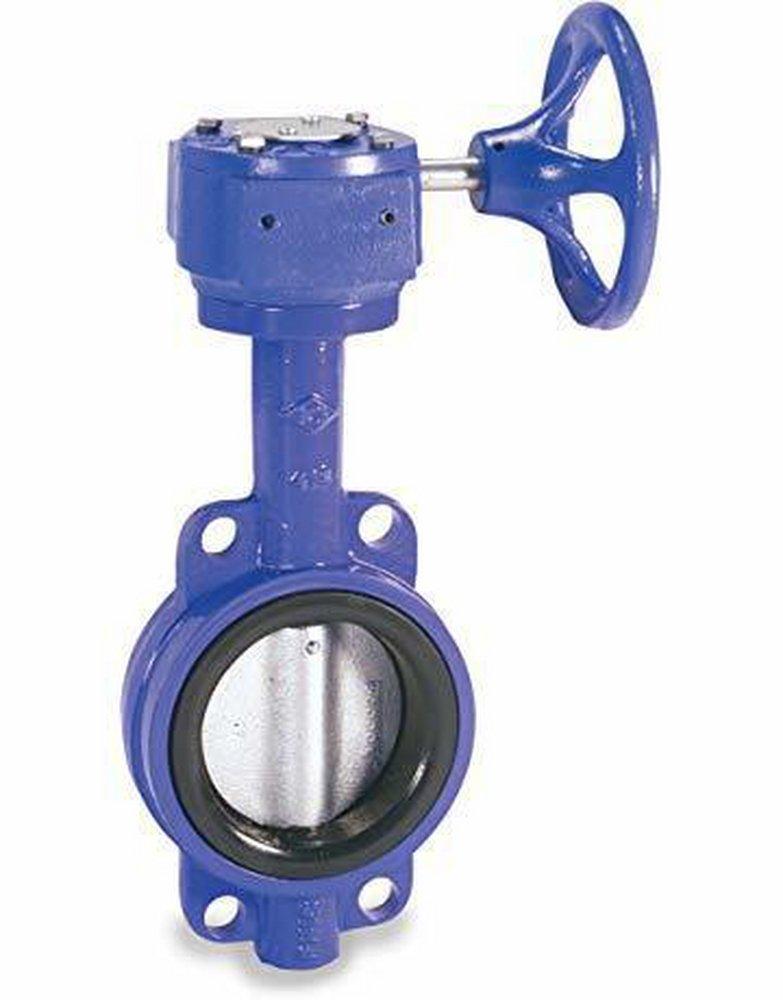

4 in. Cast Iron Flanged EPDM Wheel Handle Butterfly Valve
ABZ Manufacturing
Series 709 4 in. Cast Iron Flanged EPDM Wheel Handle Butterfly Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
ABZ Manufacturing
Series 709
4 in. Cast Iron Flanged EPDM Wheel Handle Butterfly Valve
709715BSP
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- General purpose
- Size range: 1" - 12"
- Bidirectional service: Pressure rated 150 psi CWP, non-shock
- Dead end service: Pressure rated 75 psi CWP, non-shock
- Split body design enables easy field replacement of seat and disc-stem
- 709 - wafer body design
- 719 - full lug body design
- One-piece disc-stem
- Top bushing to protect stem from side-to-side thrust of operators
- Resil-O-Seat snap-in seat
Documents
Specifications
- ANSI:
- ANSI 125, ANSI 150
- API:
- API 598, API 609
- ASME:
- ASME B16.1, ASME B16.34, ASME B16.5
- Clean Bagged:
- No
- Collection:
- Series 709
- End Connection 1:
- Wafer
- End Connection 2:
- Wafer
- End Connections:
- Wafer
- FM Approved:
- No
- Height:
- 12-53/100 in
- IAPMO Listed:
- No
- ISO:
- ISO 9001:2015
- MSS:
- MSS SP-67
- Material:
- Cast Iron, Rubber, Stainless Steel
- Material Type:
- 316, EPDM
- NSF Certified:
- No
- Pressure Class:
- 150#
- UL Listed:
- No
- Valve Body Material:
- Cast Iron
- Valve Body Style:
- Wafer
- Valve Disc Material:
- 316 Stainless Steel
- Valve Operator:
- Handwheel
- Valve Seat Material:
- EPDM
- Valve Size:
- 4 in
- Valve Type:
- Butterfly Valve
