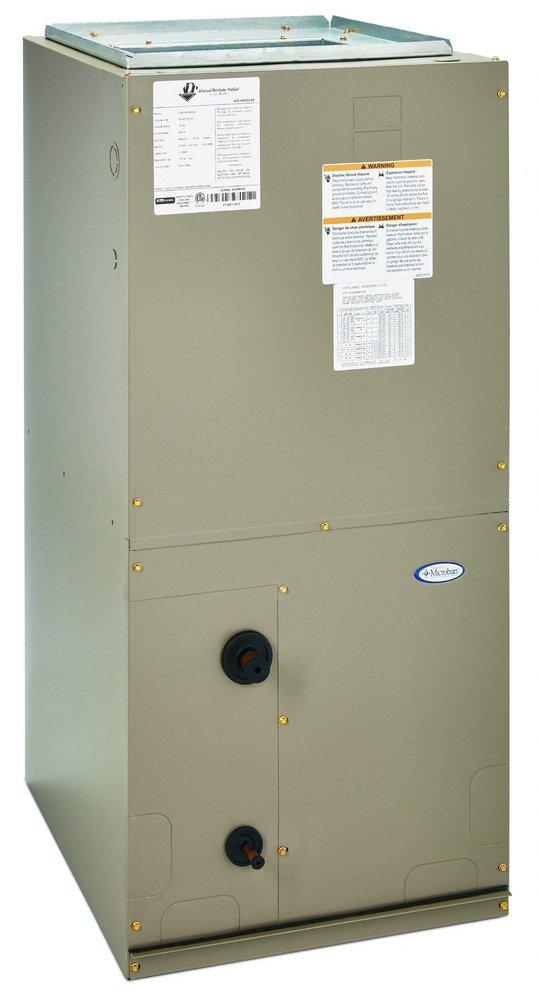

1.5 - 2 Ton - Variable Speed Hydronic Air Handler - TXV - R454B - 120V
Advanced Distributor Products
1.5 - 2 Ton - Variable Speed Hydronic Air Handler - TXV - R454B - 120V
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Advanced Distributor Products
1.5 - 2 Ton - Variable Speed Hydronic Air Handler - TXV - R454B - 120V
BVRMB6A25S2N4R
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Two independent front access panels allow for easy access to clean the coil, even after installation.
- Only four (4) screws to remove blower panel for easier access.
- High quality 5/8" foil-faced insulation lines cabinet, with cabinet flanges & retaining rods for better
- Brackets hold coil assembly in place when installed in horizontal position.
- Coils are air pressure tested at 500psi, leak tested with helium, sealed with rubber plugs, and then
- Suitable for use with R-22 and R-410A.
- 120 V 60 Hz and 208/240 V 60 Hz supply voltages available.
- Dynamically balanced blowers for quiet, vibration-free operation.
-
A2L Compatible
Specifications
- A2L Compatible:
- Yes
- AMP:
- 4.8
- BTU:
- 25
- Blower Type:
- Variable Speed
- CFM:
- 800 ft3/min
- Coil Type:
- A
- Configuration:
- Multi-Position
- Depth:
- 22 in
- ETL Listed:
- Yes
- Fan Speeds:
- 5
- Height:
- 44 in
- Horsepower:
- 1/3 hp
- Liquid Line (OD):
- 3/8 in
- MBH:
- 24
- Max CFM:
- 800 cfm
- Maximum Airflow:
- 800
- Phase:
- Single Phase
- Refrigerant:
- R-454B
- Refrigeration Control Type:
- TXV
- Suction Line (OD):
- 3/4 in
- Tonnage:
- 1.5 - 2 Ton
- Tonnage:
- 1.5 - 2 Ton
- UL Listed:
- No
- UPC:
- 888082328140
- Volts:
- 120V
- Weight:
- 135 lb
- Width:
- 18-1/2 in
