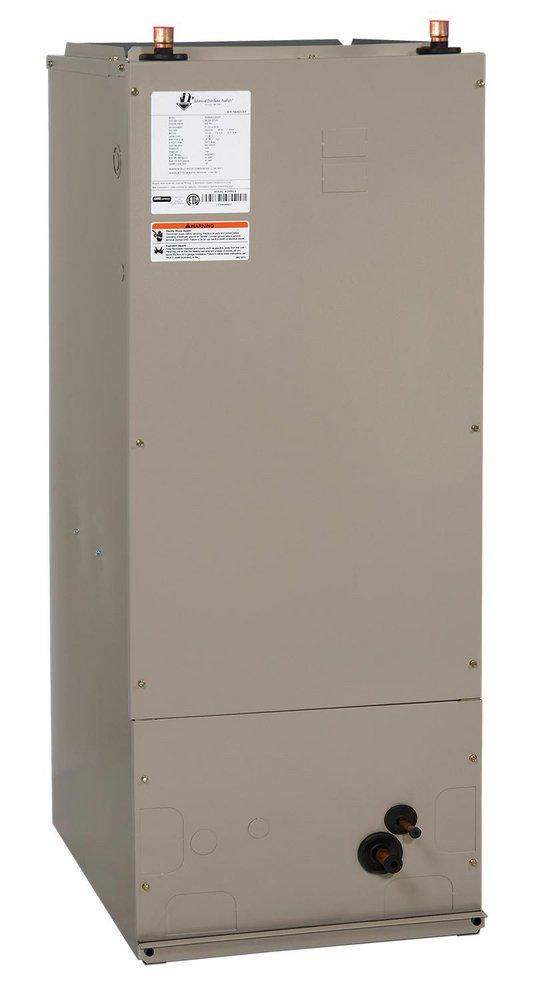

3 Ton - Multi-Position - Low Profile Air Handler - ECM - No Electric Heat - R-454B - 208/240V
Advanced Distributor Products
3 Ton - Multi-Position - Low Profile Air Handler - ECM - No Electric Heat - R-454B - 208/240V
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Advanced Distributor Products
3 Ton - Multi-Position - Low Profile Air Handler - ECM - No Electric Heat - R-454B - 208/240V
FEMBB9A37S001R
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- All air handlers are basaloid packaged with bar coding and full description on label.
- Filter rack door with thumb screws for easy access and replacement.
- Fiberglass air filter comes with every air handler and filter racks accepts readily available size filters.
- Cabinet constructed of heavy gauge painted steel.
- R-22, R-410A, AC & Heat Pump compatible.
- Threaded expansion valves available factory installed or as a field installed kit.
- Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs, then charged with dry air.
- Microban antimicrobial additive to inhibit the growth of mold and mildew in the drain pan.
- Dual 3/4" FPT condensate drains on front-left and front-right side of drain pans.;Easy to replace hot water coil. Remove one screw and slide out.
-
A2L Compatible
Specifications
- A2L Compatible:
- Yes
- AMP:
- 3
- BTU:
- 37
- Blower Type:
- ECM
- CFM:
- 1200 ft3/min
- Coil Type:
- A
- Configuration:
- Multi-Position
- Depth:
- 26 in
- ETL Listed:
- Yes
- Fan Speeds:
- 5
- Height:
- 48 in
- Horsepower:
- 1/2 hp
- Liquid Line (OD):
- 3/8 in
- MBH:
- 36
- Max CFM:
- 1200 cfm
- Maximum Airflow:
- 1200
- Phase:
- Single Phase
- Refrigerant:
- R-454B
- Refrigeration Control Type:
- TXV
- Suction Line (OD):
- 7/8 in
- Tonnage:
- 3 Ton
- Tonnage:
- 3 Ton
- UL Listed:
- No
- UPC:
- 888082328133
- Volts:
- 208/240V
- Weight:
- 155 lb
- Width:
- 21-22/25 in
