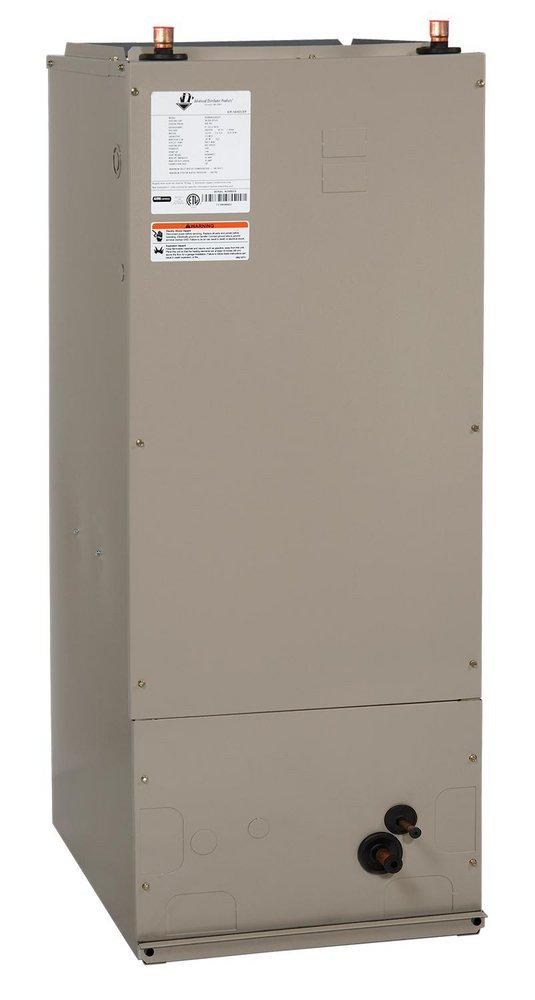

3 Ton - Multi-Position Hydronic 3-Speed PSC Air Handler - 3 Row Hot Water Slant Coil - R-410A
Advanced Distributor Products
B Series 3 Ton - Multi-Position Hydronic 3-Speed PSC Air Handler - 3 Row Hot Water Slant Coil - R-410A
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Advanced Distributor Products
B Series
3 Ton - Multi-Position Hydronic 3-Speed PSC Air Handler - 3 Row Hot Water Slant Coil - R-410A
BCRMB7936S3P3
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Multi-position, hydronic for Northern climates where heat can be supplied by electric or hot water
- Plug and pay multi-function control board
- Side return option available on 12-36 BTU/h models
- Optional variable speed high-efficiency ECM motor for enhanced product performance
- Optional easy-to-replace hot water kits, available factory or field installed
- Field configurable for upflow and horizontal left and right
Documents
Specifications
- A2L Compatible:
- No
- AMP:
- 0.57
- BTU:
- 36000
- Blower Type:
- 3 Speed
- CFM:
- 1200 ft3/min
- Coil Type:
- Slant
- Collection:
- B Series
- Configuration:
- Multi-Position
- Depth:
- 22 in
- ETL Listed:
- Yes
- Energy Star Compliant:
- No
- Filter Type:
- Fiberglass
- Height:
- 44 in
- Horsepower:
- 1/3 hp
- Liquid Line (OD):
- 3/8 in
- MBH:
- 36
- Phase:
- Single Phase
- Power Source:
- Electric
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- TXV
- Suction Line (OD):
- 3/4 in
- Tonnage:
- 3 Ton
- Volts:
- 208/230V
- Weight:
- 140 lb
- Width:
- 18-1/2 in
