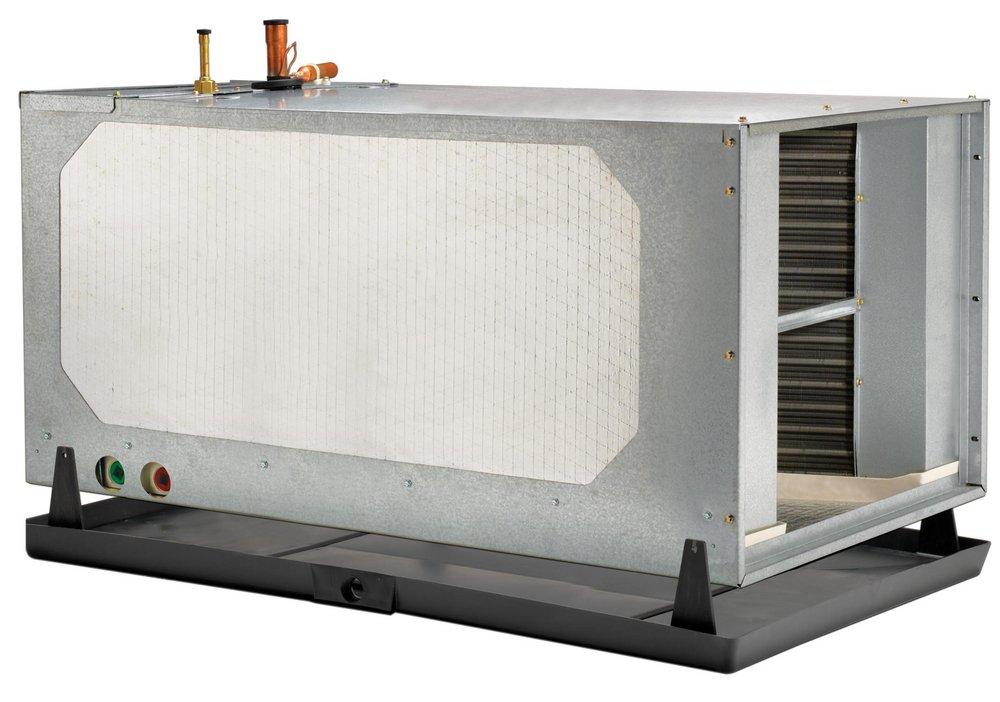

3 Ton - Indoor Plenum Evaporator Coil - Horizontal - 17.5" H
Advanced Distributor Products
PL Series 3 Ton - Indoor Plenum Evaporator Coil - Horizontal - 17.5" H
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Advanced Distributor Products
PL Series
3 Ton - Indoor Plenum Evaporator Coil - Horizontal - 17.5" H
PL36H175P78935
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- One piece cabinet construction for improved strength and rigidity
- Top panel with only four screws for fast and easy coil access
- UV light knockouts to easily locate and install UV lights
- "Easy-lift" handle allows easy lifting through tight spaces
- Furnace mounting bracket included for single person installation
- Independently certified less than 2% air leakage per ASHRAE test standard
- Non-captive panels allow access to inside of cabinet without the need to cut refrigerant lines
- Heavy gauge cabinets are lined with foil faced insulation 5/8 in on metal panels and 1 in duct board on plenum openings
- Rubber grommet around suction line and dedicated condensate cutouts for reduced air leakage
Dimensions & Measurements
CFM
1200 ft3/min
Depth
35 in
Height
17-1/2 in
Length
35 in
Liquid Line (OD)
3/8 in
Suction Line (OD)
7/8 in
Tonnage
2.5 - 4 Ton
Weight
52 lb
Width
21 in
Characteristics & Features
A2L Compatible
No
Coating
Galvanized
Coil Type
Plenum
Collection
PL Series
Configuration
Horizontal
Material
Aluminum
Refrigerant
R-410A
Refrigeration Control Type
TXV
Electrical & Operational Information
BTU
36000
BTU Cooling Rating
36000 Btu/h
MBH
36
Warranty & Product Information
ETL Listed
Yes
UL Listed
No
