4 in. Stainless Steel Full Port Flanged 150# Ball Valve

Alloy Valves and Controls

9100 Series 4 in. Stainless Steel Full Port Flanged 150# Ball Valve

  • Fast #
  • Part #A9133RG150400LH
  • Item #8061934
  • Manufacturer Part #9133RG-150-400-LH
4.8 out of 5 Customer Rating
Brand image

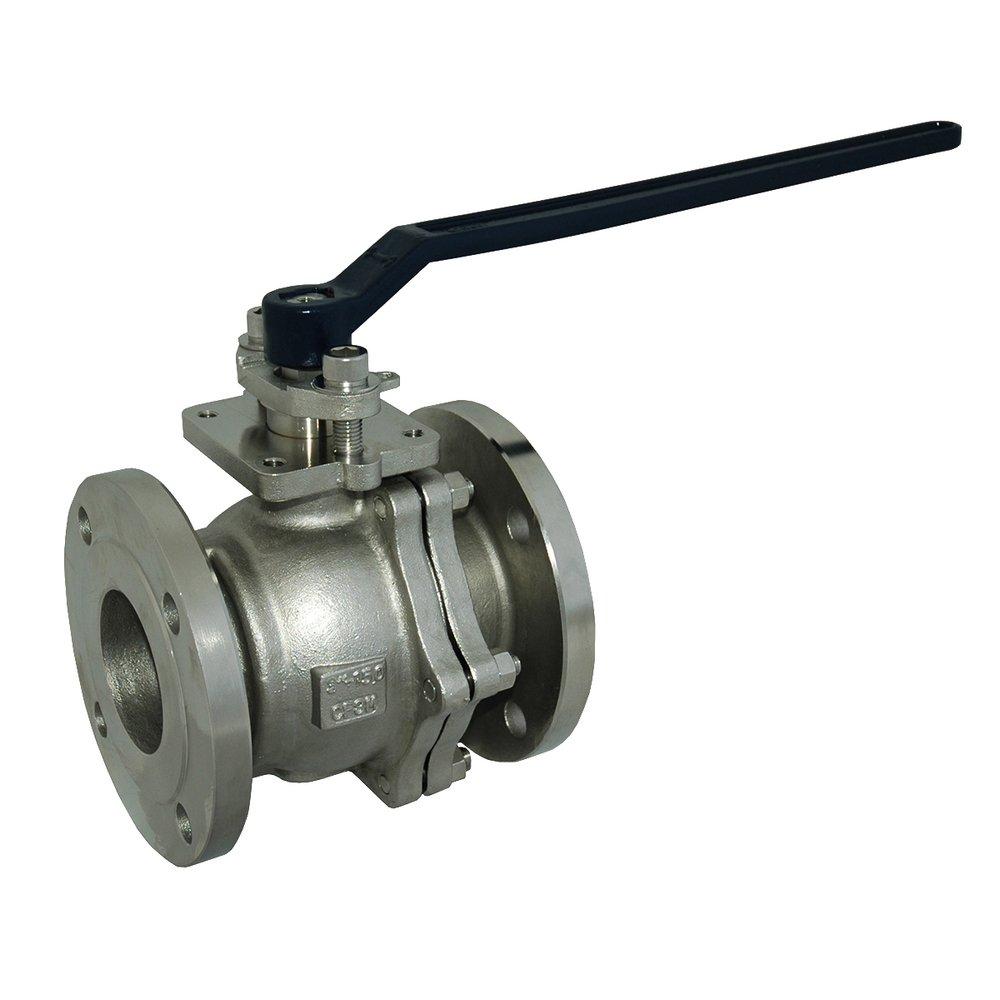

Alloy Valves and Controls Stainless Steel Full Port Flanged 150# Ball Valve
Alloy Valves and Controls Stainless Steel Full Port Flanged 150# Ball Valve
Alloy Valves and Controls

9100 Series 4 in. Stainless Steel Full Port Flanged 150# Ball Valve

  • Fast #
  • Part #A9133RG150400LH
  • Item #8061934
  • Manufacturer Part #9133RG-150-400-LH
4.8 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
Looking for compatible parts?

Product Details

Product Details

  • The AVCO 9100 series ball valve is a flanged two 2-piece cast ball valve with integral flanges in stainless steel 316 (CF8M), carbon steel (WCB), hastelloy C (CW12MW) or alloy 20 materials
  • It is designed to be fire safe per API 607 and meets the requirements of ASME B16.34 and API 598
  • Available in ANSI class 150 & 300, the valve features a stem with blow-out proof prevention and full port ball giving minimal pressure drop during operating conditions
  • The packing is adjustable online to give easier maintenance and minimize plant shutdown requirements
  • The valve carries an ISO 5211 mount pad to accommodate most actuators and valve accessories via standard mount kits, thus giving greater flexibility when it comes to flow control and handling
  • Sizes ½” through 12” are available and most are in stock to ensure expedited delivery when necessary
  • This sturdy and robust model is ideally suited to many service applications including those encountered in the chemical, food processing, water, oil and gas industries
  • Requires Certification

Specifications

ANSI:
ANSI Class 150
API:
API 6D, API 598, API 607
ASME:
ASME B16.10, ASME B16.34, ASME B16.5
BAA Compliant:
No
Clean Bagged:
No
Collection:
9100 Series
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Steel
IAPMO Listed:
No
ISO:
ISO 15156, ISO 5211
Length:
9-1/50
MA Approved:
No
Material:
Stainless Steel
Material Type:
316
NSF Certified:
No
Pressure Class:
150#
UL Listed:
No
Valve Body Style:
2 piece
Valve Operator:
Locking Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE
Valve Size:
4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
72.8
cUPC Certified:
No
