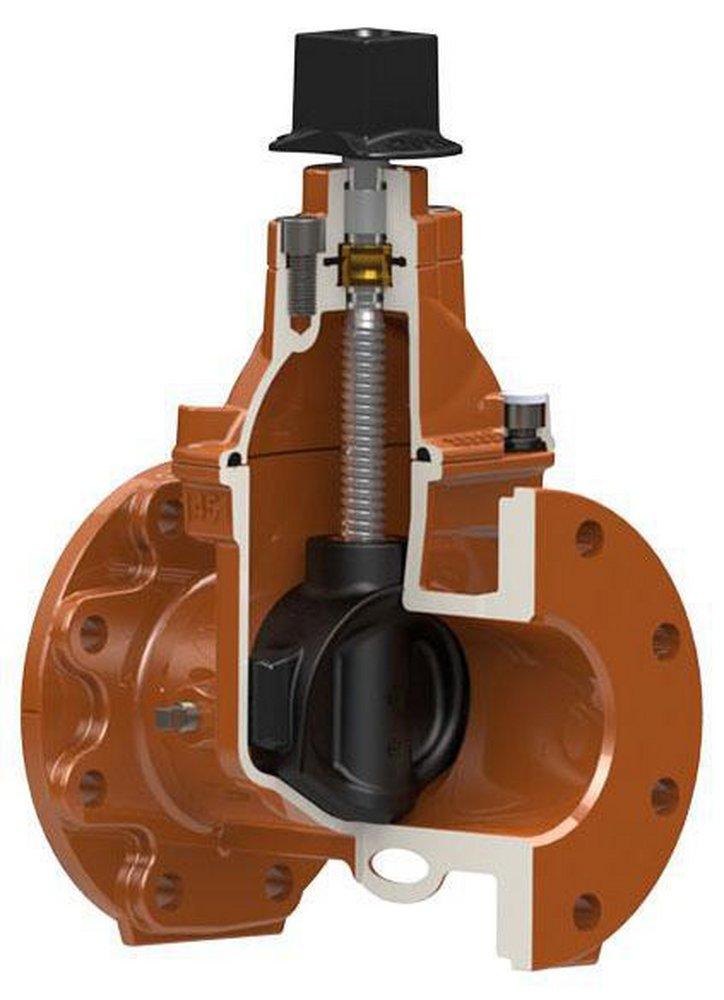

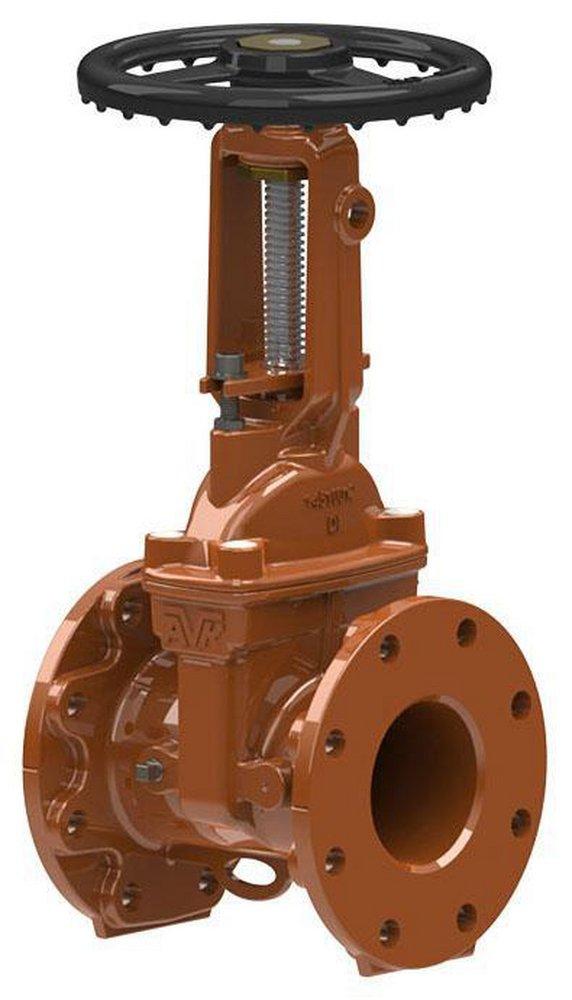

4 in. Flanged Ductile Iron OS&Y Non-Rising Resilient Wedge Gate Valve
American AVK Co.
4 in. Flanged Ductile Iron OS&Y Non-Rising Resilient Wedge Gate Valve
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
American AVK Co.
4 in. Flanged Ductile Iron OS&Y Non-Rising Resilient Wedge Gate Valve
145-100-FFO
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Electrostatically applied, fusion bonded epoxy resin provides extended corrosion resistance
- Fully encapsulated EPDM wedge prevents deterioration from disinfectants
- All AVK series 145 gate valves are covered by a 2 year warranty
- Made in USA
Specifications
- ASME:
- ASME B16.42
- ASTM:
- ASTM A-276, ASTM A-536
- Coating:
- Fusion Bonded Epoxy
- Ductile Iron Pipe Type:
- Ductile Iron Flanged Pipe
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- Yes
- Length:
- 9 in
- Maximum Temperature:
- 160
- NSF Certified:
- No
- Pressure - Maximum:
- 250 psi
- Pressure Class:
- 150#
- Recommended Valve Application:
- Fire Protection
- UL Listed:
- Yes
- Valve Body Material:
- Ductile Iron
- Valve Operator:
- Handwheel
- Valve Seat Material:
- EPDM
- Valve Size:
- 4 in
- Valve Stem:
- Outside
- Valve Type:
- Resilient Wedge Gate Valve
- Waterworks Application:
- Water
- Weight:
- 58 lb
