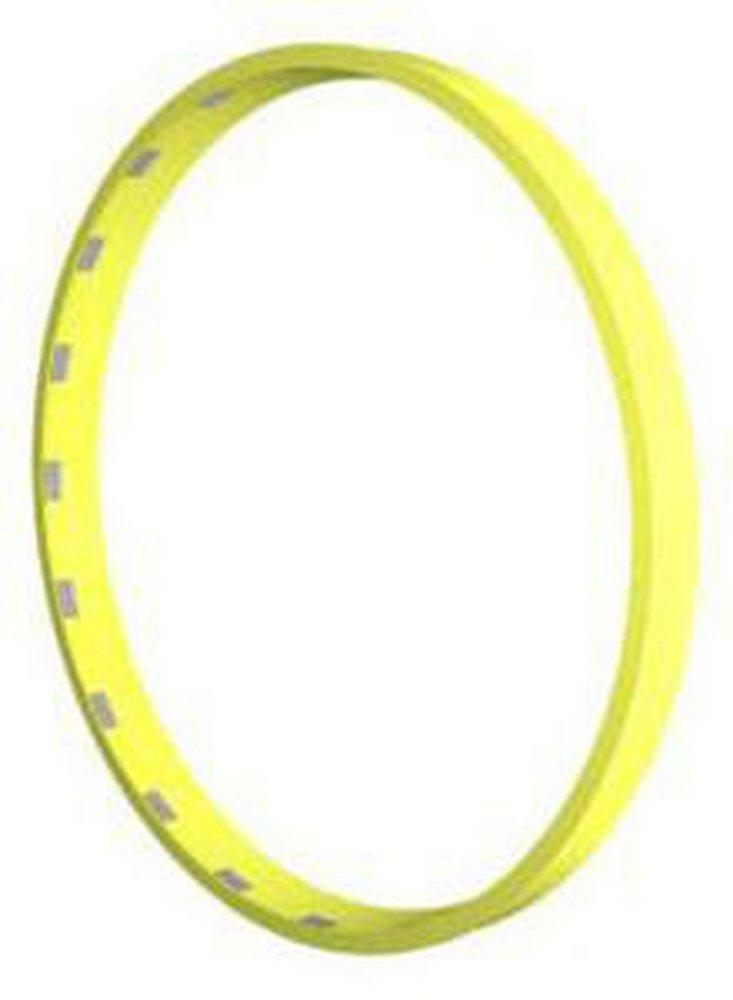

4 in. 350# Rubber Gasket

American Cast Iron Pipe

Amarillo 4 in. 350# Rubber Gasket

Brand image
American Cast Iron Pipe

Amarillo 4 in. 350# Rubber Gasket

  • Part #AAFGRGSKTP
  • Item #5152455
  • Manufacturer Part #AFGRGSKTP
3.4 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Product Details

  • The restraint provided by the patented Amarillo AMERICAN Fast-Grip gasket is due to the development of wedging action between pairs of high-strength stainless steel elements spaced around the gasket
  • The outer metal element, which has sharp teeth on its inner surface for gripping the spigot, acts as a bearing member for the wedge-shaped inner element
  • Color yellow
  • Because of this wedging design, the force between the spigot and the socket of the joint is essentially constant at any given pressure thrust regardless of the "tightness" or "looseness" of the joint fit or the joint deflection

Specifications

ANSI:
ANSI A21.11
AWWA:
AWWA C-111
Application:
Waterworks, Sewage, Liquid
Collection:
Amarillo
Diameter - Outside:
4 in
FM Approved:
Yes
Fitting Type:
Gasket
GSA Approved:
No
IAPMO Listed -:
No
Material:
Rubber
Material Type:
SBR
NSF:
NSF 61
NSF Certified:
Yes
Pressure Class:
350#
UL Listed:
Yes
