8 in. Fastite Ductile Iron EPDM Gasket

American Cast Iron Pipe

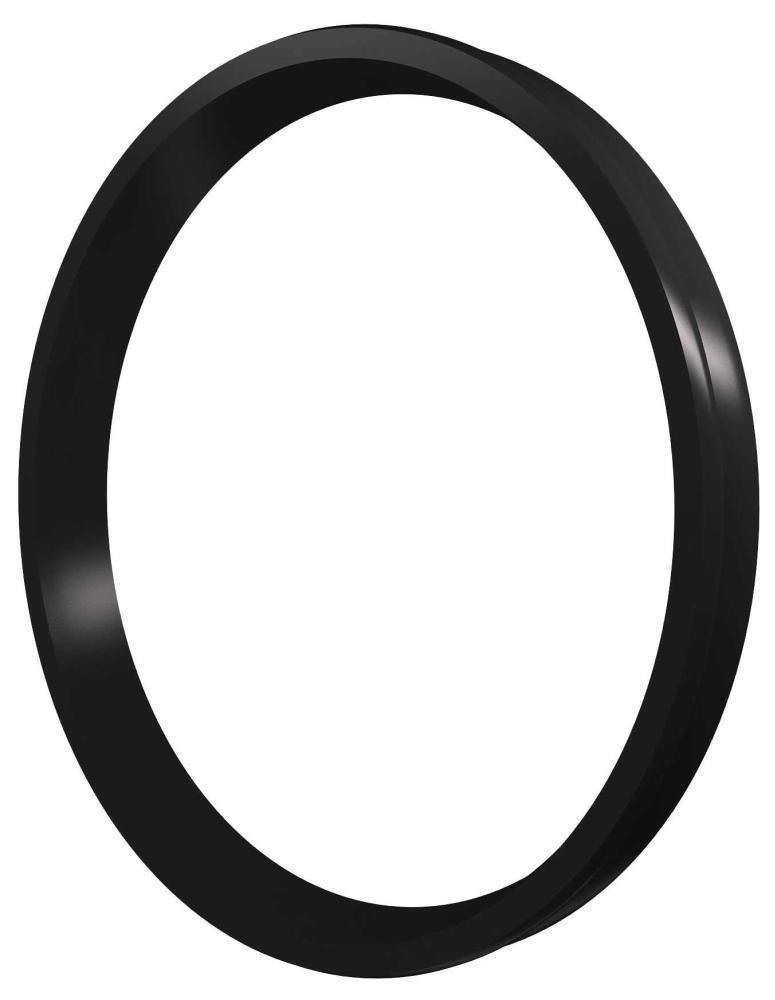

Fastite® 8 in. Fastite Ductile Iron EPDM Gasket

Brand image
American Cast Iron Pipe

Fastite® 8 in. Fastite Ductile Iron EPDM Gasket

  • Part #DIEPDMFGX
  • Item #2144790
3.4 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Product Details

  • The Fastite joint sealing component - a molded synthetic rubber ring gasket of two hardness, shaped to fit the configuration of the gasket socket
  • The smaller end of the gasket is of harder rubber, approximately 85 durometer hardness, which provides a strong shoulder for self-centering on the gasket buttress, a permanent seal against cold flow, and protection from deterioration
  • Uses water, sewage, ketones, diene monomer dilute acids and alkalies, vegetable oil, alcohols, air
  • The snug fit and the hard section of the gasket, in conjunction with the design of the buttress, act to restrain the gasket against dislodgment during assembly
  • It also eliminates any concerns of infiltration or root intrusion, and assures positive sealing against negative pressure, thus preventing gasket "pullout" should a vacuum be created in the line
  • A taper on the inside of the gasket allows the entering pipe to locate and center on the hard section and reduces friction loads during subsequent assembly
  • The design assures effective sealing at low or high pressures and in straight or deflected joint alignment
  • The larger end of the gasket is of softer rubber, approximately 65 durometer hardness, providing ease of assembly and positive sealing
  • Additional internal pressure results in increased tightness of the seal when pipe is either in straight alignment or deflected

Documents


Specifications

ANSI:
ANSI A21.11, ANSI C111
AWWA:
AWWA C-111, AWWA A-21.11
Application:
Ductile Iron Pipe
Clean Bagged:
No
Collection:
Fastite®
Diameter - Outside:
8 in
End Connection 1:
Fastite® Joint
End Connections:
Fastite® Joint
FM Approved:
No
Fitting Type:
Gasket
GSA Approved:
No
IAPMO Listed -:
No
Material:
Rubber
Material Type:
EPDM
Maximum Temperature:
212
NSF:
NSF 61
NSF Certified:
Yes
UL Listed:
No
