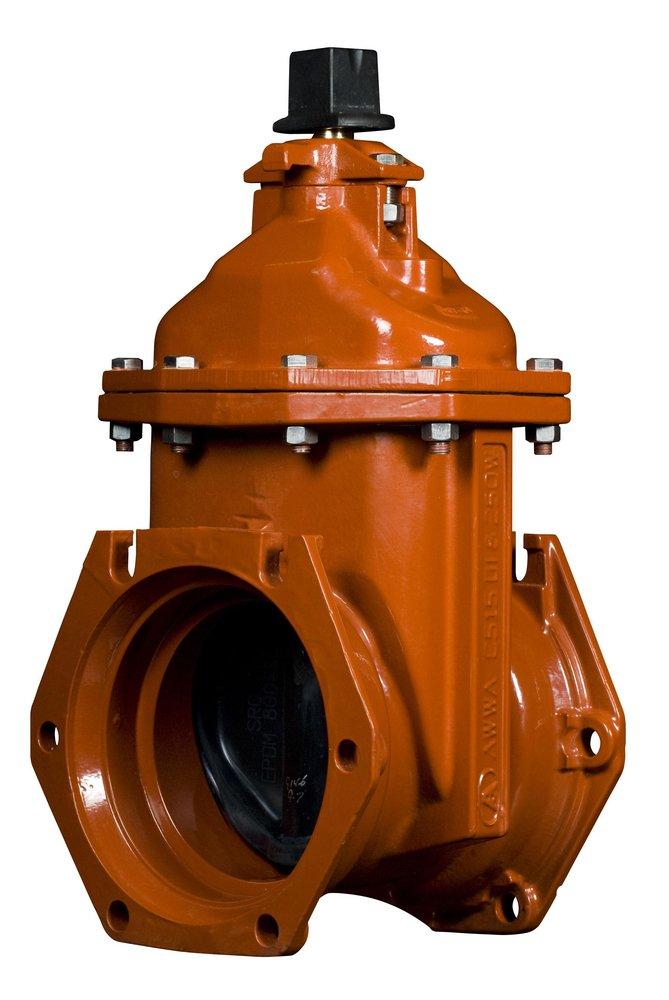

10 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve

American Flow Control

2500 Series 10 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve

Brand image
American Flow Control

2500 Series 10 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve

  • Part #AFC2610DLAFMM
  • Item #3784010
  • Manufacturer Part #2610DLAFMM
5 out of 5 Customer Rating

Package Quantity Info:

EA: 1 IP: 1 CA: 3 PT: 6
Log in or Create an Account to see product availability.
  • Pick Up: Not available
  • Shipping: Not available

Product Details

  • Fusion-bonded epoxy coating complies with ANSI/AWWA C550
  • 4"–12" valves have a fully rubber-encapsulated wedge
  • Products sold in select areas only. Please contact your local branch for availability in your area
  • Thrust washer
  • Triple O-ring stem seals

Documents


Specifications

ANSI:
ANSI C110, ANSI A21.10, ANSI C550, ANSI C515, ANSI 61, ANSI 372
ASME:
ASME B16.1, ASME B16.4
ASTM:
ASTM A-536, ASTM A-126
AWWA:
AWWA C-110, AWWA A-21.10, AWWA C-550, AWWA C-515
Coating:
Fusion Bonded Epoxy
Collection:
2500 Series
Ductile Iron Pipe Type:
Ductile Iron Mechanical Joint Pipe
End Connection 1:
Mechanical Joint
End Connection 2:
Mechanical Joint
End Connections:
Mechanical Joint x Mechanical Joint
FM Approved:
Yes
Length:
12-1/2 in
MSS:
MSS SP-45, MSS SP-113
Material:
Ductile Iron
NSF:
NSF 61, NSF 372
NSF Certified:
Yes
Pressure - Maximum:
250 psig
Pressure Class:
125#
Recommended Valve Application:
Fire Protection, Potable Water, Sewage
UL Listed:
Yes
Valve Body Style:
Open Left
Valve Bonnet Type:
Bolted
Valve Disc Material:
Ductile Iron
Valve Operator:
Operating Nut
Valve Port Opening:
Valve Stem
Valve Seat Material:
Metal
Valve Size:
10 in
Valve Stem:
Non-rising
Valve Type:
Resilient Wedge Gate Valve
Waterworks Application:
Water
