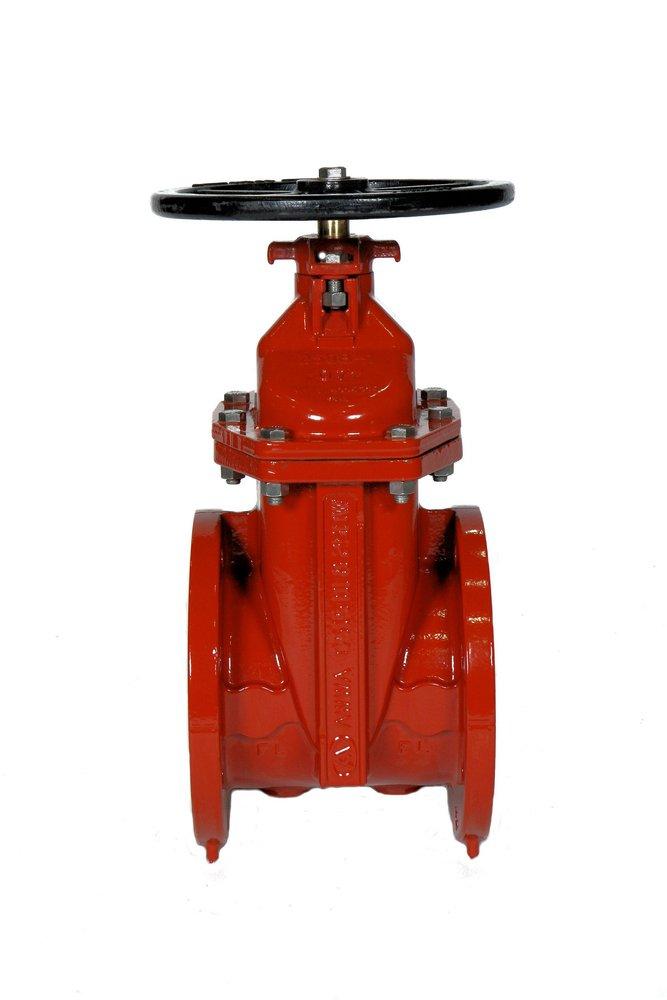

16 in. Flanged Ductile Iron Open Left Resilient Wedge Gate Valve with Bevel Gear
American Flow Control
2500 Series 16 in. Flanged Ductile Iron Open Left Resilient Wedge Gate Valve with Bevel Gear
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
American Flow Control
2500 Series
16 in. Flanged Ductile Iron Open Left Resilient Wedge Gate Valve with Bevel Gear
2516ALDFFF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Open left direction
- Thrust washers
- Lifting device
- Zero leakage
- Dual sealing body to bonnet gasket
- The body to bonnet gasket utilizes a unique dual sealing design which incorporates the reliability of a flat gasket and an integral pressure energized O-Ring seal
- Helps to ensure zero leakage with low stem torques
- Gearing allows for reduced torques and the ability to accommodate lower depths of bury
Specifications
- ANSI:
- ANSI A21.10
- ASME:
- ASME B16.1
- ASTM:
- ASTM A-536, ASTM B-584, ASTM B-763
- AWWA:
- AWWA C-110, AWWA C-515, AWWA C-550
- Application:
- Fire, Irrigation, Potable Water, Sewage
- Coating:
- Fusion Bonded Epoxy
- Collection:
- 2500 Series
- Ductile Iron Pipe Type:
- Ductile Iron Flanged Pipe
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged x Flanged
- FM Approved:
- Yes
- Length:
- 28-1/4
- MSS:
- MSS SP-45, MSS SP-113
- Material:
- Ductile Iron
- NSF:
- NSF 61, NSF 372
- NSF Certified:
- Yes
- Pressure - Maximum:
- 250 psig
- Pressure Class:
- 125#
- Recommended Valve Application:
- Water
- UL Listed:
- Yes
- UPC:
- 674630516462
- Valve Body Material:
- Ductile Iron
- Valve Body Style:
- Open Left
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- Ductile Iron
- Valve Operator:
- Operating Nut
- Valve Port Opening:
- Valve Stem
- Valve Seat Material:
- Metal
- Valve Size:
- 16 in
- Valve Stem:
- Non-rising
- Valve Type:
- Resilient Wedge Gate Valve
- Waterworks Application:
- Water
- Weight:
- 973
