36 in. Flanged x Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve

American Flow Control

2500 Series 36 in. Flanged x Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve

  • Fast #
  • Part #AFC2536FMLAOLBG
  • Item #3266586
  • Manufacturer Part #2536FMLAOLBG
3.3 out of 5 Customer Rating
Brand image

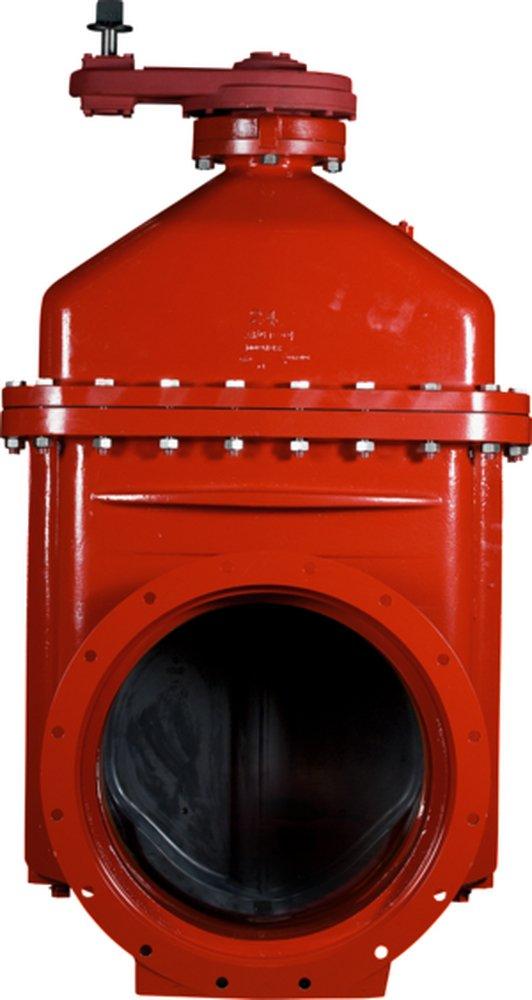

American Flow Control Flanged x Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve
American Flow Control Flanged x Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve
American Flow Control

2500 Series 36 in. Flanged x Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve

  • Fast #
  • Part #AFC2536FMLAOLBG
  • Item #3266586
  • Manufacturer Part #2536FMLAOLBG
3.3 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Ductile iron construction
  • 250 psig rating
  • UL listed and FM approved in applicable configurations
  • Certified to NSF/ANSI/CAN 61 and NSF/ANSI/CAN 372
  • Triple o-ring stem seals
  • Epoxy coating inside and out
  • Thrust washers
  • Lifting devices
  • Zero leakage
  • Dual sealing body to bonnet gaskets
  • Requires Certification

Specifications

ANSI:
ANSI 372, ANSI 61, ANSI A21.10, ANSI B2.1, ANSI C515, ANSI C550
ASME:
ASME B16.1 Class 125
ASTM:
ASTM A-536
AWWA:
AWWA C-110, AWWA C-515, AWWA C-550
Application:
Fire Protection, Sewage
Coating:
Epoxy
Collection:
2500 Series
Ductile Iron Pipe Type:
Ductile Iron Flanged Pipe
End Connection 1:
Flanged
End Connection 2:
Mechanical Joint
End Connections:
Flanged x Mechanical Joint
FM Approved:
Yes
Length:
33-3/4 in
MSS:
MSS SP-113, MSS SP-45
Material:
Ductile Iron, Rubber, Stainless Steel, Metal
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - Maximum:
250 psig
Pressure Class:
250#
UL Listed:
Yes
Valve Body Material:
Ductile Iron
Valve Body Style:
Open Left
Valve Bonnet Type:
Bolted
Valve Disc Material:
Ductile Iron
Valve Operator:
Gear Operator
Valve Port Opening:
Valve Stem
Valve Seat Material:
Metal
Valve Size:
36 in
Valve Stem:
Non-rising
Valve Type:
Resilient Wedge Gate Valve
Waterworks Application:
Potable Water
Weight:
7440 lb
