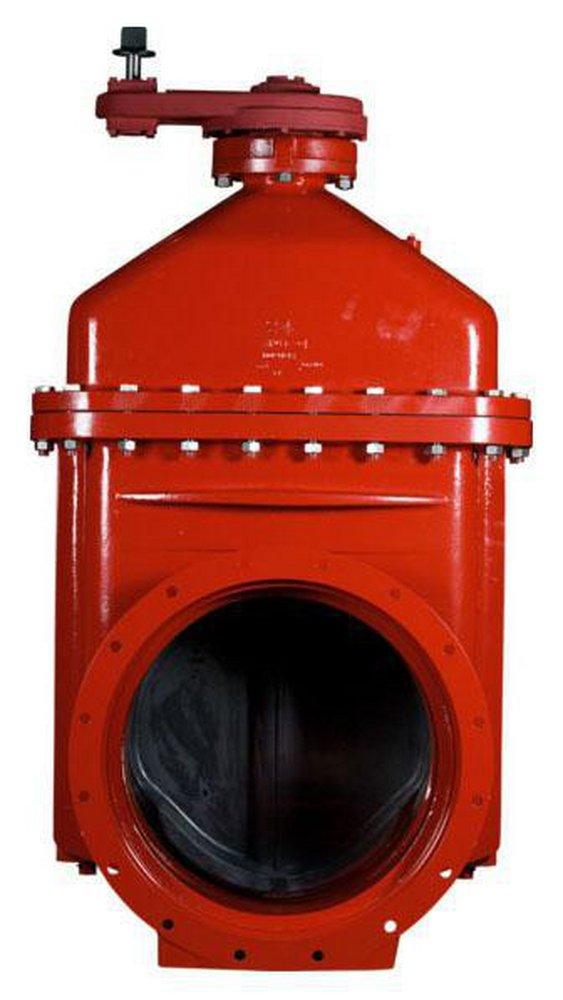

36 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve with Spur Gear
American Flow Control
2500 Series 36 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve with Spur Gear
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
American Flow Control
2500 Series
36 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve with Spur Gear
2536ALSFMM
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Triple O-ring stem seal
- Left open direction
- Epoxy coating inside and out
- Thrust washers
- Lifting Devices
- Zero leakage
- Dual sealing body to bonnet gaskets
- EPDM Encapsulated Ductile Iron Wedge with Polymer Guide Covers
- Sealing the lubrication chamber is a series of O-Ring stem seals
Specifications
- ANSI:
- ANSI A21.11
- ASME:
- ASME B16.1
- ASTM:
- ASTM A-536
- AWWA:
- AWWA C-111, AWWA C-515, AWWA C-550
- Application:
- Backflow Preventer, Fire, Irrigation, Potable Water, Sewage
- Coating:
- Fusion Bonded Epoxy
- Collection:
- 2500 Series
- Ductile Iron Pipe Type:
- Ductile Iron Flanged Pipe
- End Connection 1:
- Mechanical Joint
- End Connection 2:
- Mechanical Joint
- End Connections:
- Mechanical Joint
- FM Approved:
- Yes
- Length:
- 29-1/2 in
- MSS:
- MSS SP-45, MSS SP-113
- Material:
- Ductile Iron
- NSF:
- NSF 61, NSF 372
- NSF Certified:
- Yes
- Pressure - Maximum:
- 250 psig
- Pressure Class:
- 125#
- Recommended Valve Application:
- Water
- UL Listed:
- Yes
- Valve Body Material:
- Ductile Iron
- Valve Body Style:
- Open Left
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- Ductile Iron
- Valve Operator:
- Gear
- Valve Port Opening:
- Valve Stem
- Valve Seat Material:
- Metal
- Valve Size:
- 36 in
- Valve Stem:
- Non-rising
- Valve Type:
- Resilient Wedge Gate Valve
- Waterworks Application:
- Water
- Weight:
- 7440 lb
