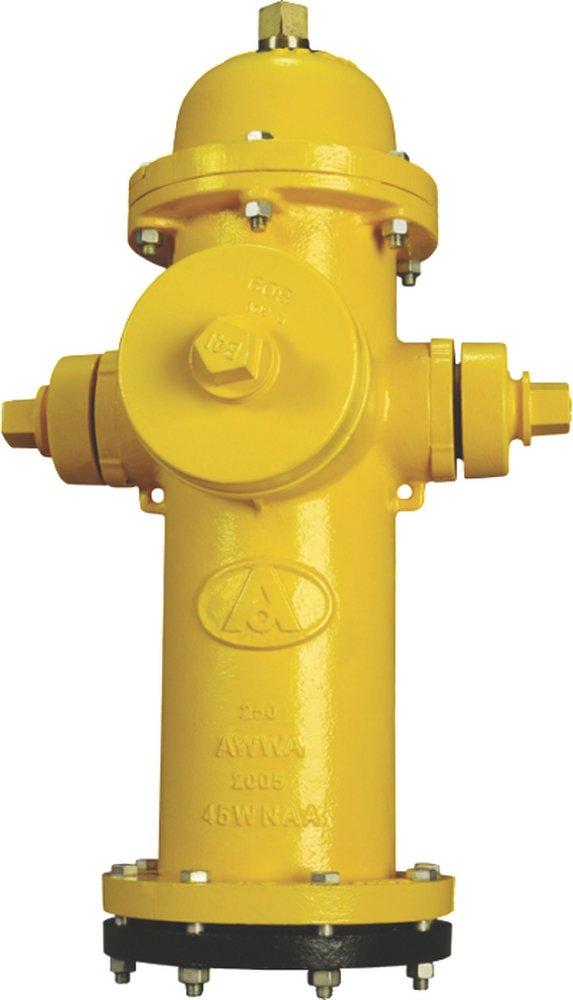

Yellow 8 ft. Mechanical Joint Assembled Fire Hydrant
American Flow Control
Yellow 8 ft. Mechanical Joint Assembled Fire Hydrant
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
American Flow Control
Yellow 8 ft. Mechanical Joint Assembled Fire Hydrant
B-84-B
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Fire hydrants shall meet or exceed ANSI/AWWA C502, latest revision for use in water supply systems
- Rated working pressure shall be 250 psig, test pressure shall be 500 psig
- Hydrants shall be dry-barrel construction closing with and opening against the inlet pressure
- Hydrant main valve closure shall be of the compression type
- Traffic break feature to be designed for easy 360° rotation of nozzle section and incorporate the use of a 2-piece square rod and single cast-iron rod coupling secured with stainless steel coupling pins
- The hydrant shall have a travel stop nut in the top of the hydrant to limit the travel of the hydrant rod. Hydrant designs that allow the valve bottom to stop against the shoe or employ a stop in the drain mechanism resulting in a bending moment in the rod assembly are not allowed
- Hydrant upper and lower barrels and base shall be made of ductile iron
- Hydrant to be certified to NSF/ANSI/CAN 61 and NSF/ANSI/CAN 372
- Hydrant shall be UL listed and FM approved, in allowable configurations
- Hydrant to be supplied with a 2-D bar code, or similar, capable of allowing a seamless enrollment of the manufacturing attributes and hydrant location into a cloud-based GIS application
Dimensions & Measurements
Depth of Trench
8 ft
End Connection 1
Mechanical Joint
End Connections
Mechanical Joint
Pressure - Maximum
500 psig
Valve Size
5-1/4 in
Weight
515 lb
Characteristics & Features
Color Finish Name
Yellow
Material
Ductile Iron
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI C502
AWWA
AWWA C-502
FM Approved
Yes
NSF Certified
Yes
UL Listed
Yes
