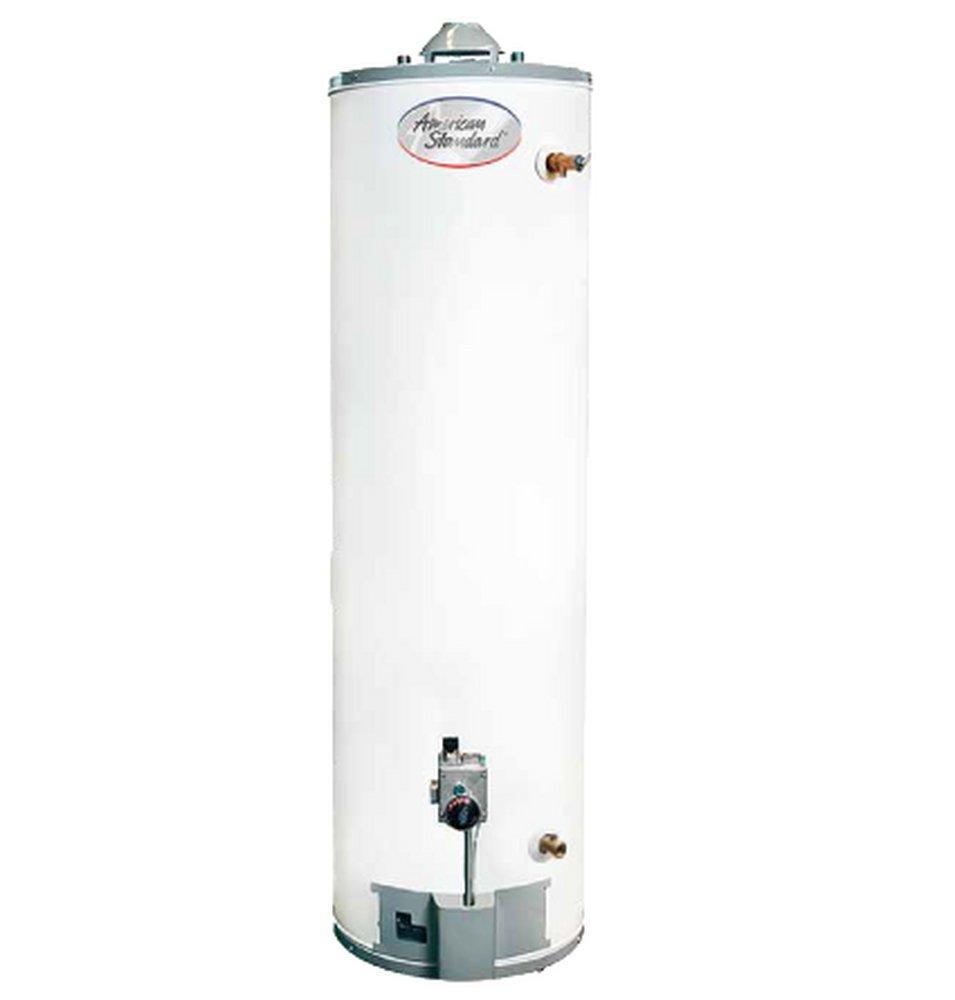

40 gal. Tall 40 MBH Natural Gas Water Heater
American Standard
40 gal. Tall 40 MBH Natural Gas Water Heater
Purchase history
American Standard
40 gal. Tall 40 MBH Natural Gas Water Heater
GSN40T1-3-6
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Shuts off gas and air supply to heater to prevent prolonged vapor burn in combustion chamber should accidental or unattended ignition of flammable vapors occur outside the water heater
- Affords push button pilot lighting in lieu of matches
- No periodic cleaning of combustion air inlet necessary under normal conditions
- Design provides for use of either factory supplied thermocouple or standard replacement thermocouple
- Turbulence inducing cold water inlet-tube engineered to diminish hard water area sediment deposits
- Saves energy and reduces fuel costs by maximizing heat retention
- For extra years of trouble-free service
- Inner tank glass-lined with Dura-Glas™ and fired at 1600° F for optimum protection from the effects of corrosion
- To protect tank life
- 3/4" NPT water connections to extend tank life and for easier installations
Documents
Specifications
- Application:
- Residential
- BTU:
- 40000
- Capacity:
- 40 gal
- Diameter:
- 18-5/16
- Drain Valve Material:
- Brass
- ETL Listed:
- No
- Emission:
- Low NOx
- Energy Star Compliant:
- No
- First Hour Rating:
- 69
- Fuel Type:
- Natural Gas
- Height:
- 62-3/8
- Lining of Tank:
- Glass
- MBH:
- 40
- Power Source:
- Gas
- Pressure - Maximum:
- 300 psi
- Recovery 90°F Rise GPH:
- 38
- UL Listed:
- No
- Uniform Energy Factor (UEF):
- 0.62
- Water Connections:
- Top
- Water Heater Capacity Range:
- 30 - 40 gal
- Water Heater Type:
- Tall
