3 Ton - up to 16.2 SEER2 - Air Conditioner - 208/230V - Two Stage - R-410A
American Standard HVAC

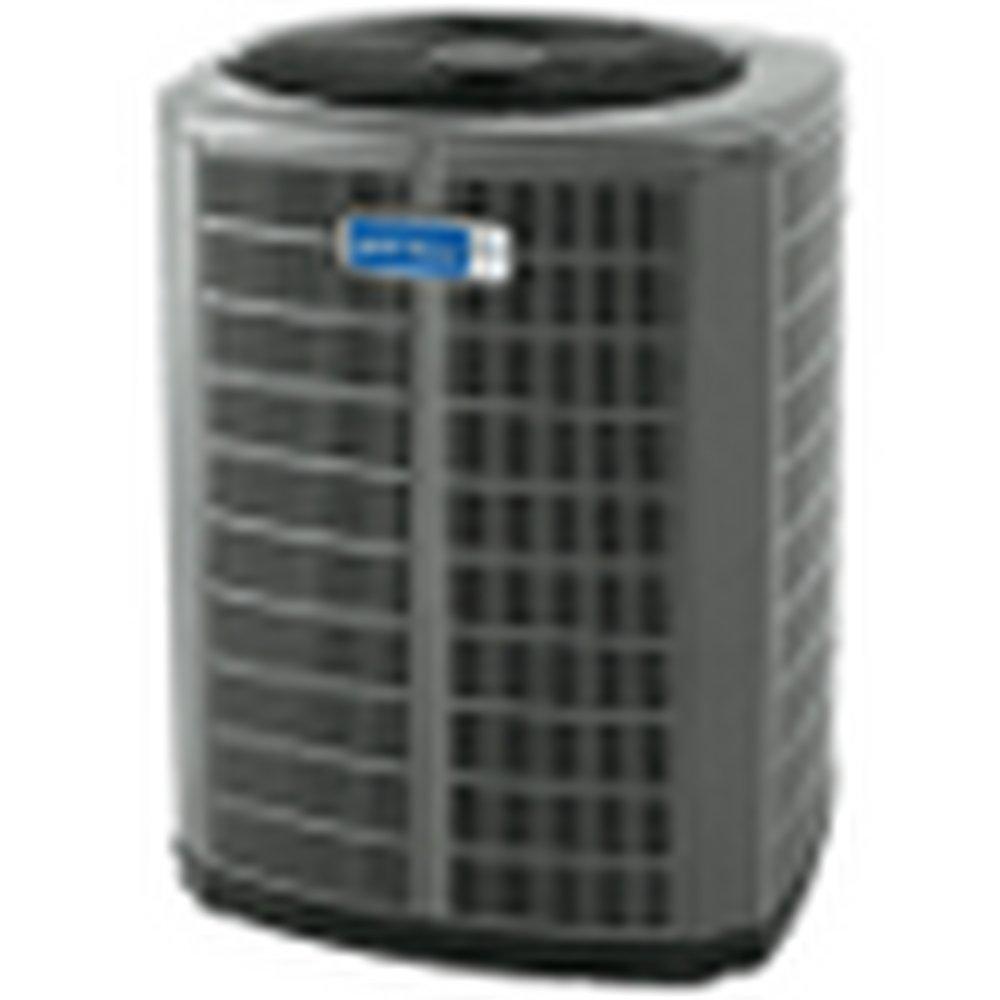

Gold 16 Series 3 Ton - up to 16.2 SEER2 - Air Conditioner - 208/230V - Two Stage - R-410A
Purchase history
American Standard HVAC
Gold 16 Series
3 Ton - up to 16.2 SEER2 - Air Conditioner - 208/230V - Two Stage - R-410A
4A7A6036N1000A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Up to 18 SEER
- 2 cooling stages
- Optimize indoor air quality, if you add an AccuClean® air cleaner, your air conditioner can filter out more dust and harmful irritants from the air so you can breathe easier
- Environmentally friendly, take care of your environment, American standard air conditioners cool your home with a refrigerant that's ozone-safe
- This home central air conditioner runs at 70% capacity except on the hottest days when it steps up to the second stage thanks to a two-step, Duration™ compressor with two stage cooling
- Experience quiet operation with this system that is so quiet, you'll barely notice it's running
- Enjoy our home cooling systems that cool your home with an environmentally friendly refrigerant that's ozone-safe
- Get more efficient and reliable cooling, thanks to a durable Spine Fin™ coil found in this home central air conditioner
- Rust-resistant coating, screws and base pan protect system from the elements
-
Green
Specifications
- A2L Compatible:
- No
- AMP:
- 30
- BTU:
- 36000
- BTU Cooling Rating:
- 36000 Btu/h
- CFM:
- 3700
- Coil Type:
- Louvered
- Collection:
- Gold 16 Series
- Communicating:
- Non-Communicating
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Decibel Rating (dB):
- 72 dB
- Depth:
- 34
- EER:
- 12.2
- EER2:
- 12.2
- EER2 Range:
- 11.7 - 23.0
- ETL Listed:
- Yes
- Energy Star Compliant:
- Yes
- Factory Std. Refrigerant Charge:
- 12
- Height:
- 45
- Horsepower:
- 1/8 hp
- Liquid Line (OD):
- 3/8
- MBH:
- 36
- Max Fuse Size:
- 30
- Phase:
- Single Phase
- Power Source:
- Electric
- RPM:
- 835
- Refrigerant:
- R-410A
- Refrigerant Control:
- TXV
- SEER:
- 16.0
- SEER2:
- 16.2
- SEER2 Range:
- 15.2 - 40.0
- Sound Blanket:
- No
- Suction Line (OD):
- 3/4
- Tonnage:
- 3 Ton
- Type:
- A4A7A6036N1000A
- UL Listed:
- UL 1995
- Volts:
- 208/230V
- Weight:
- 250
- Width:
- 37
