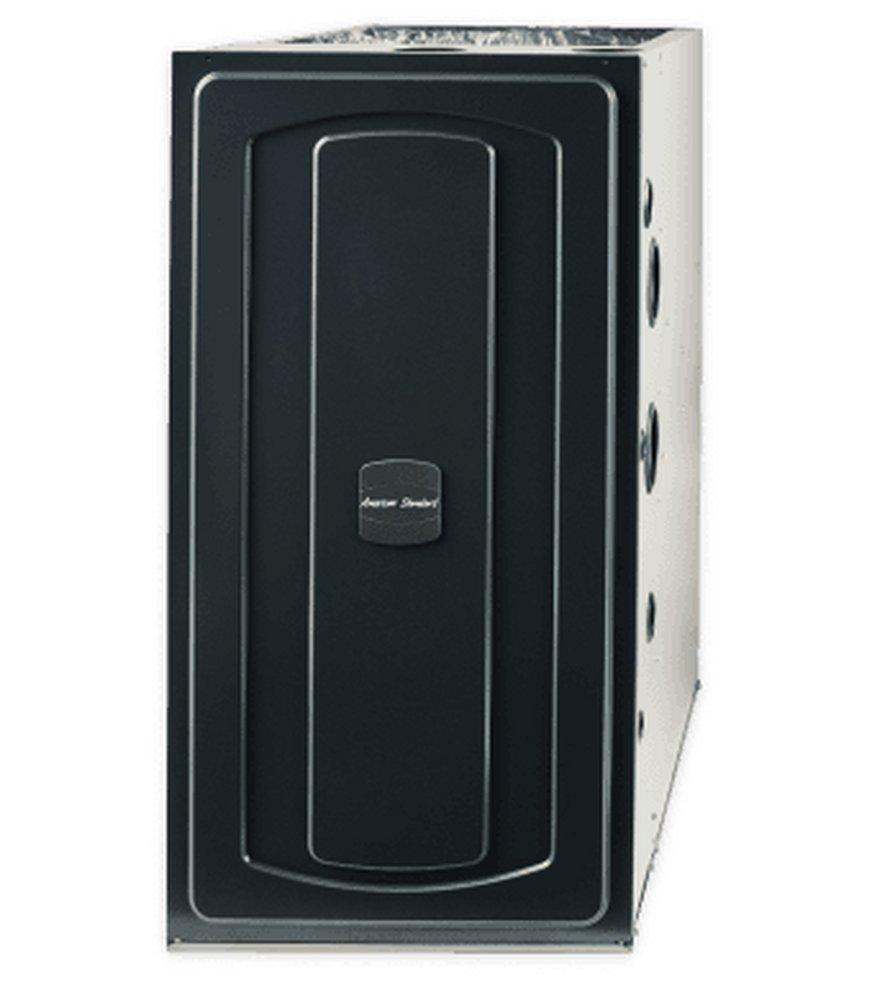

96% - ECM - 60K BTU - Downflow - Gas Furnace - 17.5"
This product has been replaced by
American Standard HVAC 96% AFUE - 3 Ton - 60k Btu/h - Downflow Gas Furnace - 17.5" W
Manufacturer Part #S9X1B060D3PSBB
Manufacturer Part #S9X1B060D3PSBB
American Standard HVAC
S9X1 Series 96% - ECM - 60K BTU - Downflow - Gas Furnace - 17.5"
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
American Standard HVAC
S9X1 Series
96% - ECM - 60K BTU - Downflow - Gas Furnace - 17.5"
S9X1B060D3PSBA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. products sold in select areas only, please contact your local branch for availability in your area.
- Feel warm and cozy inside all year long with this single stage heating system
- Exclusive Vortica™ II blower design delivers consistent, quiet heating in both the winter and summer months, giving you the temperature control you need all year long
- Matching with single and two stage air conditioner and heat pump models and including self-diagnosing integrated furnace control(IFC) this furnace is versatile in more ways than one
- You won’t have to worry about this furnace withstanding the test of time, its cabinet and components are durable and built to deliver comfort for years to come
- While this gas furnace does a great job heating, match it with a heat pump to enjoy energy saving benefits and a more complete temperature control experience
- The heat pump can act as the primary source of heat in milder temperatures, but when the weather gets cold, your system activates your furnace to deliver the heat you need
- Matches with single and two stage AC and hp models
- High-efficiency constant torque ECM (electronically commutated motor) blower motor
- Exclusive Vortica™ II blower design that increases airflow efficiency
-
Green
Documents
Specifications
- A2L Compatible:
- Contingent
- AFUE:
- 96.00 %
- AMP:
- 10.3
- ANSI:
- ANSI 221.47
- BTU:
- 60000
- BTU Heat Rating:
- 57600 Btu/h
- Blower Type:
- Direct Drive
- Brand Model Compatibility:
- CleanEffects™
- CFM:
- 1200 ft3/min
- CSA Certified:
- CSA 2.3
- Collection:
- S9X1 Series
- Condensing:
- Yes
- Configuration:
- Downflow
- Depth:
- 28-3/4 in
- Energy Star Compliant:
- Yes
- Fan Speeds:
- 9
- Flue Size:
- 2
- Fuel Type:
- Natural Gas
- Gas Valve Stages:
- Single-Stage
- Heat Exchanger Type:
- Stainless Steel
- Height:
- 34 in
- Horsepower:
- 1/2 hp
- Ignition System:
- Silicon Nitride Hot Surface
- Input (MBH):
- 60 MBH
- MBH:
- 57.6
- Max Fuse Size:
- 15
- Number of Burners:
- 3
- Phase:
- Single Phase
- Power Source:
- Gas
- Refrigerant:
- R-410A;R-454B
- Temperature Range:
- 55 to 80 Deg F
- Tonnage:
- 3 Ton
- UL Listed:
- No
- Vent Type:
- Direct Vent/Non Direct Vent
- Volts:
- 120V
- Weight:
- 119 lb
- Width:
- 17-1/2 in
