2 Ton - up to 16 SEER2 / 8.1 HSPF2 - Low Profile Heat Pump - 208/230/1 - R-410A

American Standard HVAC

Silver 15 2 Ton - up to 16 SEER2 / 8.1 HSPF2 - Low Profile Heat Pump - 208/230/1 - R-410A

  • Fast #
  • Part #A4A6L5024N1000A
  • Item #9912259
  • Manufacturer Part #4A6L5024N1000A
4.4 out of 5 Customer Rating
Brand image

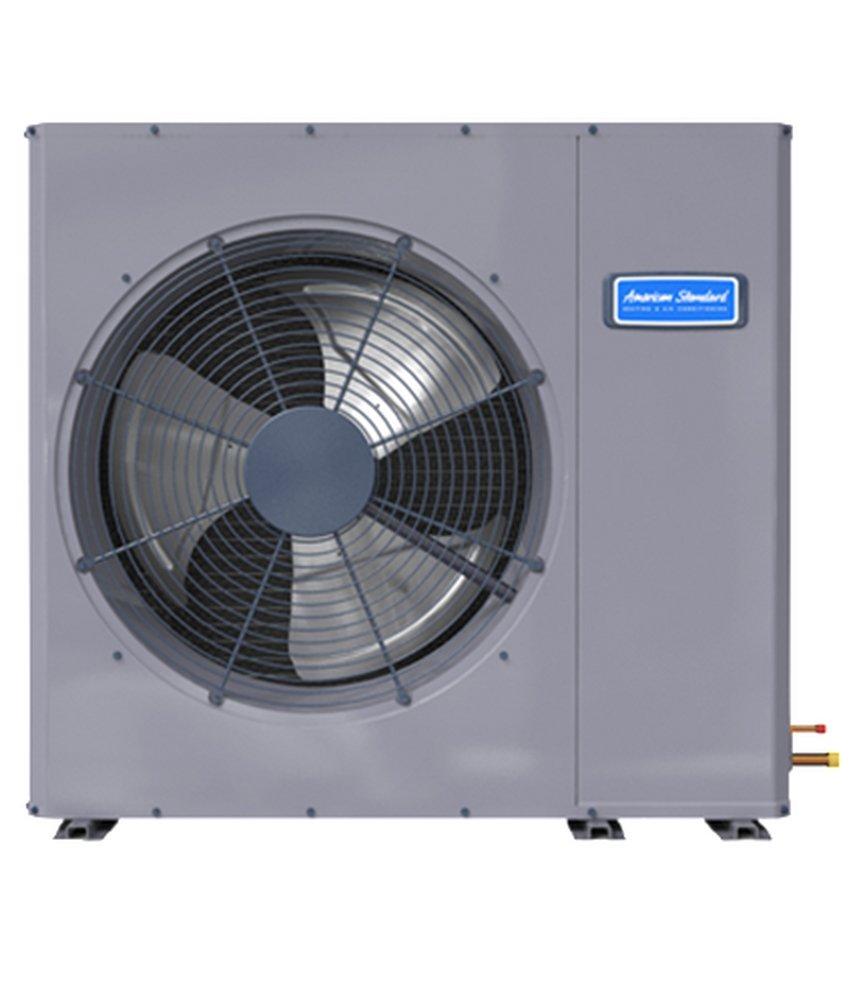

15 SEER2 OUTDR 24MBH S/S H/P L/P
15 SEER2 OUTDR 24MBH S/S H/P L/P
American Standard HVAC

Silver 15 2 Ton - up to 16 SEER2 / 8.1 HSPF2 - Low Profile Heat Pump - 208/230/1 - R-410A

  • Fast #
  • Part #A4A6L5024N1000A
  • Item #9912259
  • Manufacturer Part #4A6L5024N1000A
4.4 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Built with you in mind, the silver 15 low profile heat pump is ideal for zero lot line applications and other space constrained areas
  • Ensuring your family will stay cool and comfortable no matter your space requirements
  • Built for zero lot line applications and other space constrained areas, such as condos or under decks
  • Surpasses government efficiency standards
  • Install this as part of a complete system and you may meet the efficiency requirements for local utility rebates
  • Keep operating noise to a minimum, even on the hottest days, with this heat pump system
  • Our heat pump systems cool and heat with an environmentally friendly refrigerant that is ozone-safe
  • Pair your heat pump with a gas furnace to create your own hybrid system
  • Once your heat pump reaches its heating capacity, your gas furnace steps in to keep you comfortable for as long as you need
  • Requires Certification

  • Green

Specifications

A2L Compatible:
No
AMP:
15
Application:
Residential
Auto Switching Heat:
No
BTU:
24000
BTU Cooling Rating:
24000 Btu/h
CFM:
2986
Coil Type:
Plate Fin
Collection:
Silver 15
Compressor Stages:
Single Stage
Compressor Type:
Scroll
Decibel Rating (dB):
70 dB
Depth:
18
EER2:
12.6
EER2 Range:
11.7 - 23.0
ETL Listed:
No
Energy Star Compliant:
Yes
Factory Std. Refrigerant Charge:
96
HSPF:
9.0
HSPF2:
8.1
HSPF2 Range:
7.5 - 25.0
Height:
37
Horsepower:
1/8 hp
Liquid Line (OD):
3/8
MBH:
24
Max CFM:
2986
Max Fuse Size:
25
Phase:
Single Phase
Power Source:
Electric
Refrigerant:
R-410A
Refrigeration Control Type:
EEV
SEER:
15.0
SEER2:
16
SEER2 Range:
15.2 - 40.0
Sound Blanket:
No
Suction Line (OD):
3/4
Tonnage:
2 Ton
UL Listed:
Yes
Volts:
208/230V
Weight:
197
Width:
47
