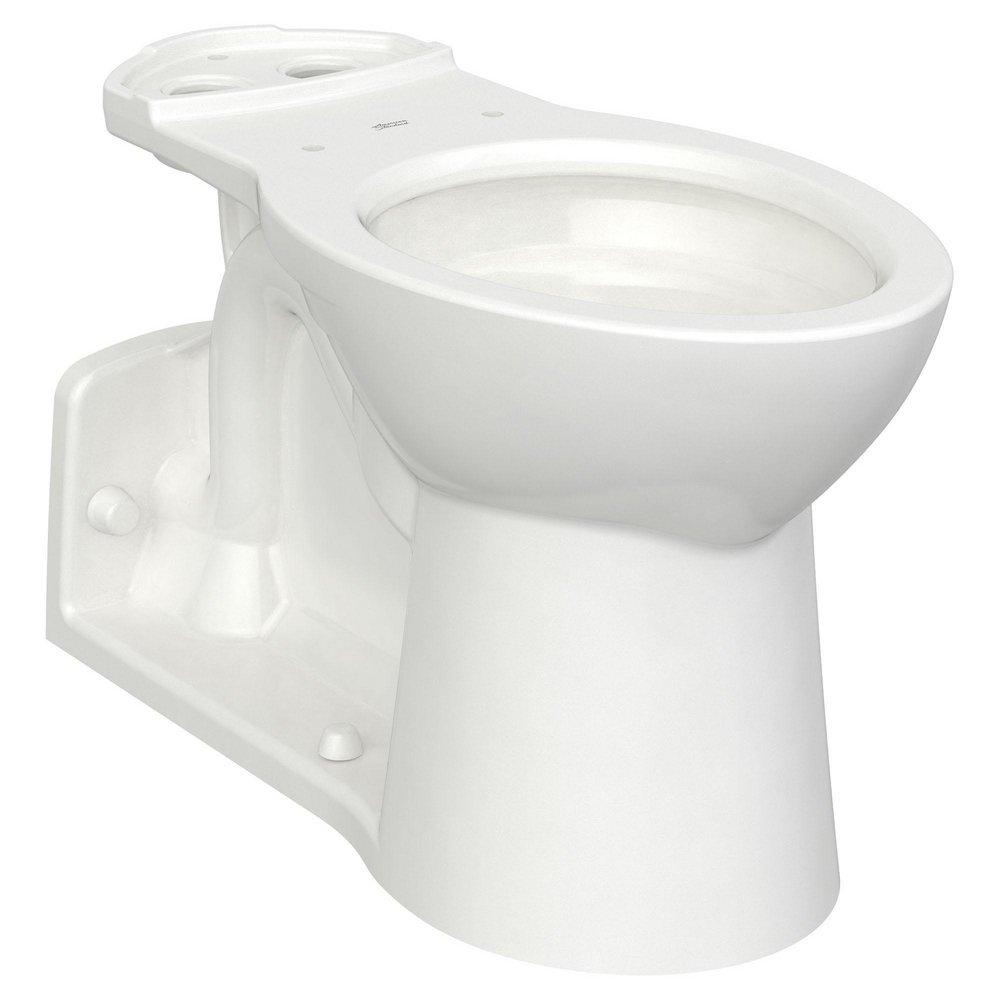

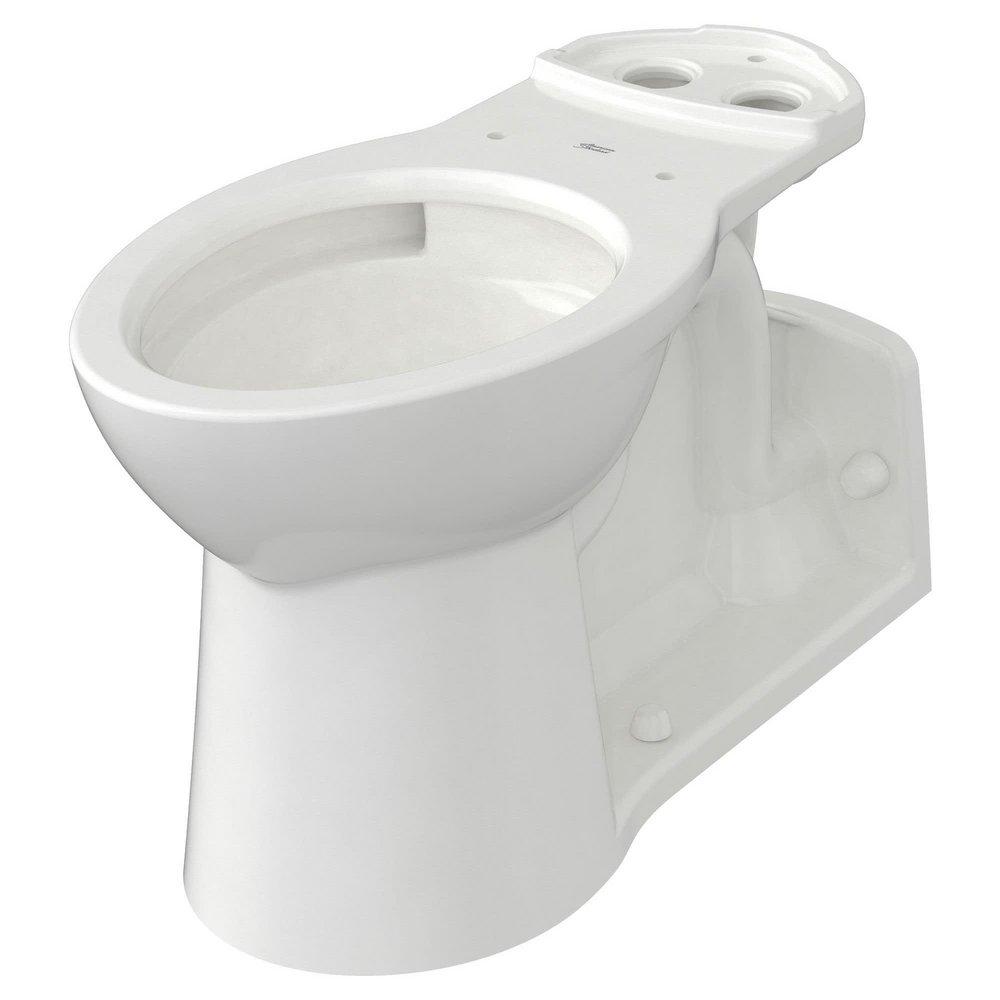

Right Height® Elongated Floor Mount Toilet Bowl in White
American Standard
Yorkville™ VorMax® Right Height® Elongated Floor Mount Toilet Bowl in White
Package Quantity Info:
Each: 1 Pallet: 18Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
American Standard
Yorkville™ VorMax®
Right Height® Elongated Floor Mount Toilet Bowl in White
3359A101.020
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Elongated floor-mount flushometer valve toilet, less seat
- High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
- Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
- Conventional glaze
- 2-1/8" (54 mm) fully-glazed trapway
- 10" (254 mm) or 12" 305 mm) rough-in
- Standard 15" (381 mm) rim height
- Condensation channel
- Powerful direct-fed siphon jet action
- 1-1/2" (38 mm) inlet spud.
Product Information
-
ADA Compliant
Documents
Dimensions & Measurements
Bowl Height Range
16-17 in
Depth
30-3/16 in
Height
17-1/2 in
Length
30-3/16 in
Number of Pieces
1 Piece
Toilet Bowl Height
17 in
Toilet Bowl Length
18-1/2 in
Toilet Bowl Width
14 in
Toilet Rough-In
12 in
Width
14 in
Included Components
Toilet Seat Included
No
Characteristics & Features
Bowl Only
Yes
Bowl Shape
Elongated
Collection
Yorkville™ VorMax®
Color Finish Category
Whites
Color Finish Name
White
Dual Flush
No
Flush Type
Gravity
Material
Vitreous China
Tank Only
No
Toilet/Urinal Outlet
Floor
Toilet Installation
Floor Mount
Toilet Seat Type
Open Front
Toilet Type
Bowl
Warranty & Product Information
ADA Compliant
Yes
ANSI
ANSI A112.19.2, ANSI A117.1
Application
Commercial
ASME
ASME A112.19.2
BAA Compliant
No
CARB OTC LEED Compliant
No
CSA Certified
CSA B45.1
EPA Compliant
No
GSA Approved
No
MA Approved
No
NSF Certified
No
UPC
791556112421
