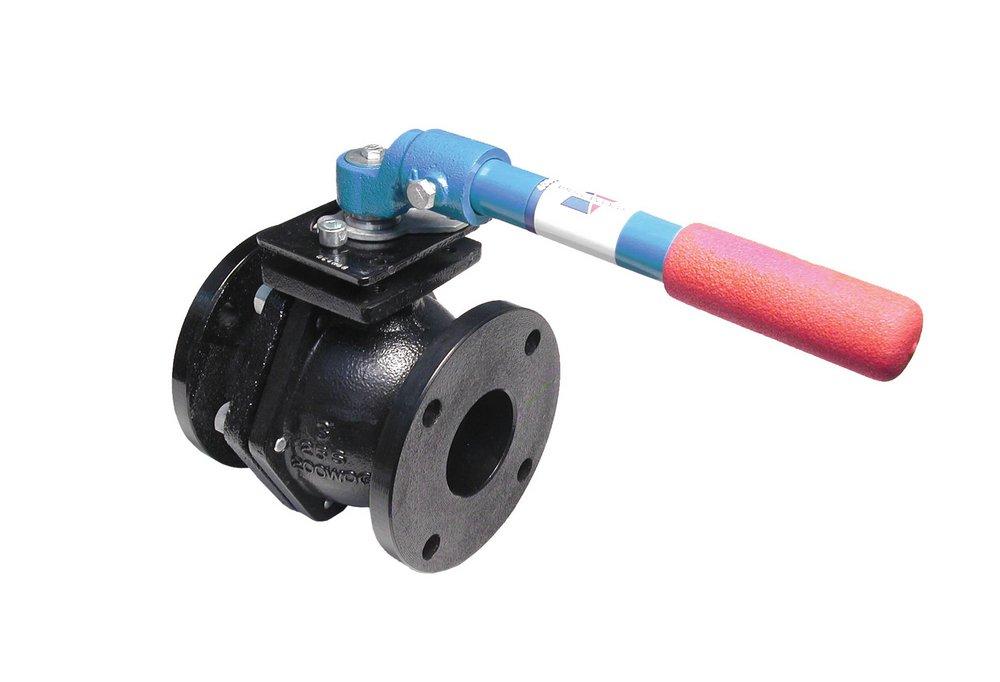

2-1/2 in. Cast Iron Full Port Flanged 125# and 200# Ball Valve

American Valve

4000 Series 2-1/2 in. Cast Iron Full Port Flanged 125# and 200# Ball Valve

  • Fast #
  • Part #A4000L
  • Item #209729
  • Manufacturer Part #4000 2 1/2
5 out of 5 Customer Rating
Brand image
American Valve Cast Iron Full Port Flanged 125# and 200# Ball Valve
American Valve Cast Iron Full Port Flanged 125# and 200# Ball Valve
American Valve

4000 Series 2-1/2 in. Cast Iron Full Port Flanged 125# and 200# Ball Valve

  • Fast #
  • Part #A4000L
  • Item #209729
  • Manufacturer Part #4000 2 1/2
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Blow-out proof stainless steel stem
  • Adjustable length/removable handles to fit into areas of limited space
  • Unique seat design prevents material from getting behind seats
  • Reinforced PTFE seats
  • Lockable in full open or closed positions
  • Mounting pad for easy actuation
  • Full-port through 6"
  • Certified to meet the requirements of NSF/ANSI 61 and NSF/ANSI 372
  • Face to face and flanged dimensions conform to ANSI standard B16.10 which exactly match end to end dimensions of all cast iron gate valves and plug valves
  • Requires Certification

Specifications

ANSI:
ANSI 372, ANSI 61, ANSI B16.10
ASTM:
ASTM A-126 Class B, ASTM A-193, ASTM A-48 Class 35, ASTM A-536, ASTM A-53M, ASTM D-3294, ASTM D-4894, ASTM D-749, ASTM SA-479 10a
AWWA:
AWWA C-507 1999
Clean Bagged:
No
Collection:
4000 Series
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Handle Material:
Steel
IAPMO Listed:
No
Length:
7-1/2 in
MSS:
MSS SP-72
Material:
Cast Iron, Plastic, Steel
Material Type:
RPTFE
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - High:
125
Pressure Class:
125#, 200#
Recommended Valve Application:
Gas, Oil, Water
Temperature Range:
Up to 353 Deg F
UL Listed:
Yes
UPC:
611918003528
Valve Body Material:
Cast Iron
Valve Body Style:
Ball
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE 15% Glass Filled
Valve Size:
2-1/2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
43 lb
