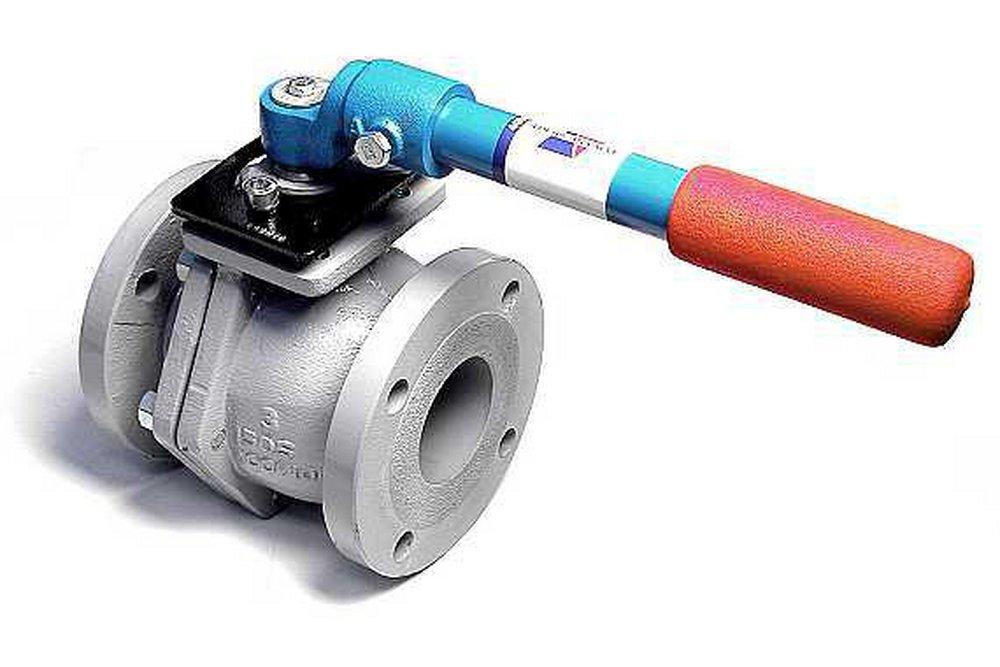

8 in. Ductile Iron Full Port Flanged 150# and 300# Ball Valve

American Valve

4000D Series 8 in. Ductile Iron Full Port Flanged 150# and 300# Ball Valve

  • Fast #
  • Part #A4000DX
  • Item #420002
  • Manufacturer Part #4000D 8
5 out of 5 Customer Rating
Brand image
American Valve Ductile Iron Full Port Flanged 150# and 300# Ball Valve
American Valve Ductile Iron Full Port Flanged 150# and 300# Ball Valve
American Valve

4000D Series 8 in. Ductile Iron Full Port Flanged 150# and 300# Ball Valve

  • Fast #
  • Part #A4000DX
  • Item #420002
  • Manufacturer Part #4000D 8
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 17
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Blow-out proof stainless steel stem
  • Adjustable length/removable handles to fit into areas of limited space
  • Replaces any carbon steel ball or gate valve
  • PFA* Fused Solid Stainless Steel Ball
  • Class VI Positive Shutoff
  • Reinforced PTFE Seats
  • A536 Grade 65-45-12 Ductile Iron Body
  • UL Listed to NSF/ANSI 61 & 375
  • ISO Mounting Pad for Easy Actuation
  • Lockable in Full Open or Closed Positions
  • Requires Certification

Specifications

ANSI:
ANSI 372, ANSI 61, ANSI B16.10, ANSI B16.5
ASTM:
ASTM A-193, ASTM A-536, ASTM A-53M, ASTM A-743 Grade CA15, ASTM D-3294, ASTM D-4894, ASTM D-749, ASTM SA-479
AWWA:
No
Clean Bagged:
No
Collection:
4000D Series
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Steel
IAPMO Listed:
No
Length:
11-1/2 in
MA Approved:
No
MSS:
MSS SP-72
Material:
Ductile Iron
Material Type:
A536
Maximum Temperature:
366
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - High:
300
Pressure Class:
150#, 300#
Recommended Valve Application:
Gas, Oil, Water
Temperature Range:
0 to 350 Deg F (-18 to 177 Deg C)
UL Listed:
Yes
UPC:
611918003634
Valve Body Style:
Ball
Valve Operator:
Locking Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
15% Glass Filled RPTFE
Valve Size:
8 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
194 lb
cUPC Certified:
No
