1 in. Brass Full Port FNPT 200# Ball Valve

American Valve

G100 Series 1 in. Brass Full Port FNPT 200# Ball Valve

  • Fast #
  • Part #AG1001
  • Item #3919550
  • Manufacturer Part #G100-1
5 out of 5 Customer Rating
Brand image

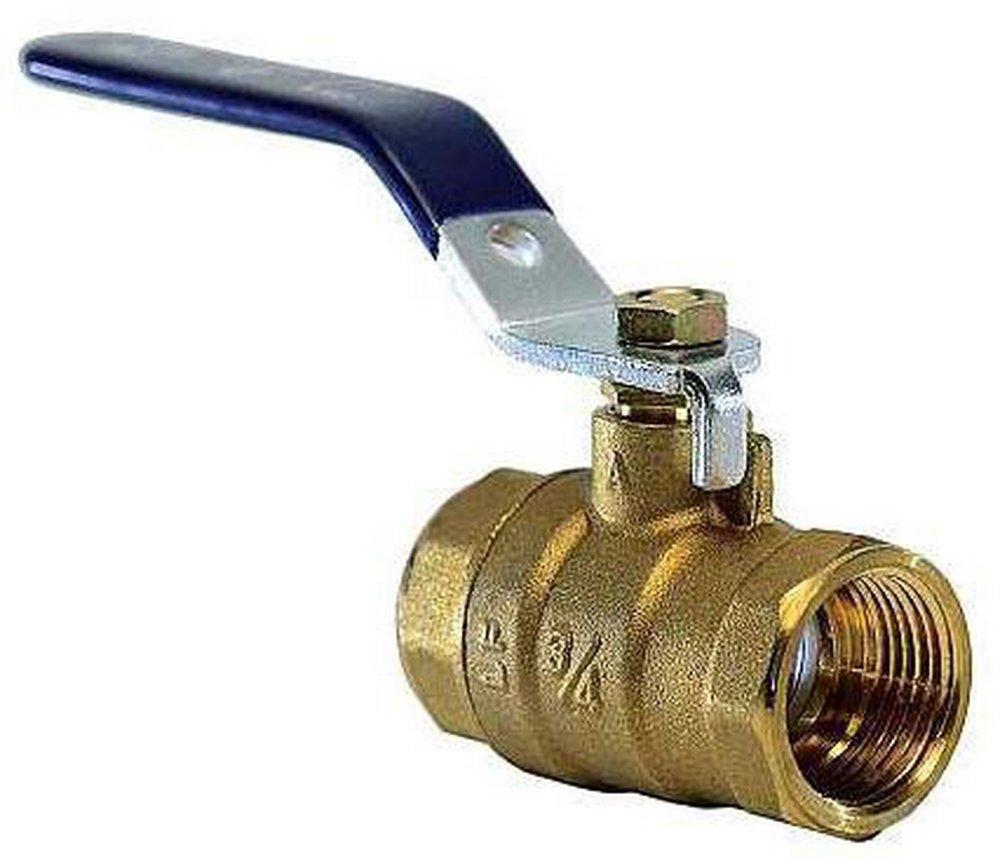

American Valve Brass Full Port FNPT 200# Ball Valve
American Valve Brass Full Port FNPT 200# Ball Valve
American Valve Brass Full Port FNPT 200# Ball Valve
American Valve Brass Full Port FNPT 200# Ball Valve
American Valve

G100 Series 1 in. Brass Full Port FNPT 200# Ball Valve

  • Fast #
  • Part #AG1001
  • Item #3919550
  • Manufacturer Part #G100-1
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Adjustable packing
  • Blow-out proof stem design
  • For use in drinking water, domestic hot and cold water, natural gas, compressed air, petroleum applications, HVAC (condensers, chilled water & hot water heating) isolation & irrigation applications
  • Lead-free
  • NPT ends comply with ANSI B 1.20.1
  • 600 WOG 1/4" - 2"
  • 400 WOG 2 1/2" - 4"
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372, ANSI 61, ANSI B1.20.1, ANSI Z1157, Z21.15
ASME:
ASME B16.44
ASTM:
ASTM A-283 Grade D, ASTM B16 C36000
Collection:
G100 Series
End Connection 1:
FPT
End Connection 2:
FPT
End Connections:
FPT
FM Approved:
No
Handle Length (in):
4-29/100 in
Handle Material:
Carbon Steel
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Free Not Certified, Approved for Non-Potable Water Applications
Lead Law Compliant:
Yes
Length:
2-3/4 in
MSS:
MSS SP-110
Material:
Forged Brass, Plastic
Material Type:
PTFE
Maximum Temperature:
180
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - High:
600
Pressure Class:
200#, 600#
Proposition 65:
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Recommended Valve Application:
Air, Gas, Potable Water
UL Listed:
No
UPC:
611918068749
Valve Body Material:
Forged Brass
Valve Body Style:
Ball
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
PTFE
Valve Size:
1 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Width:
2-17/25 in
