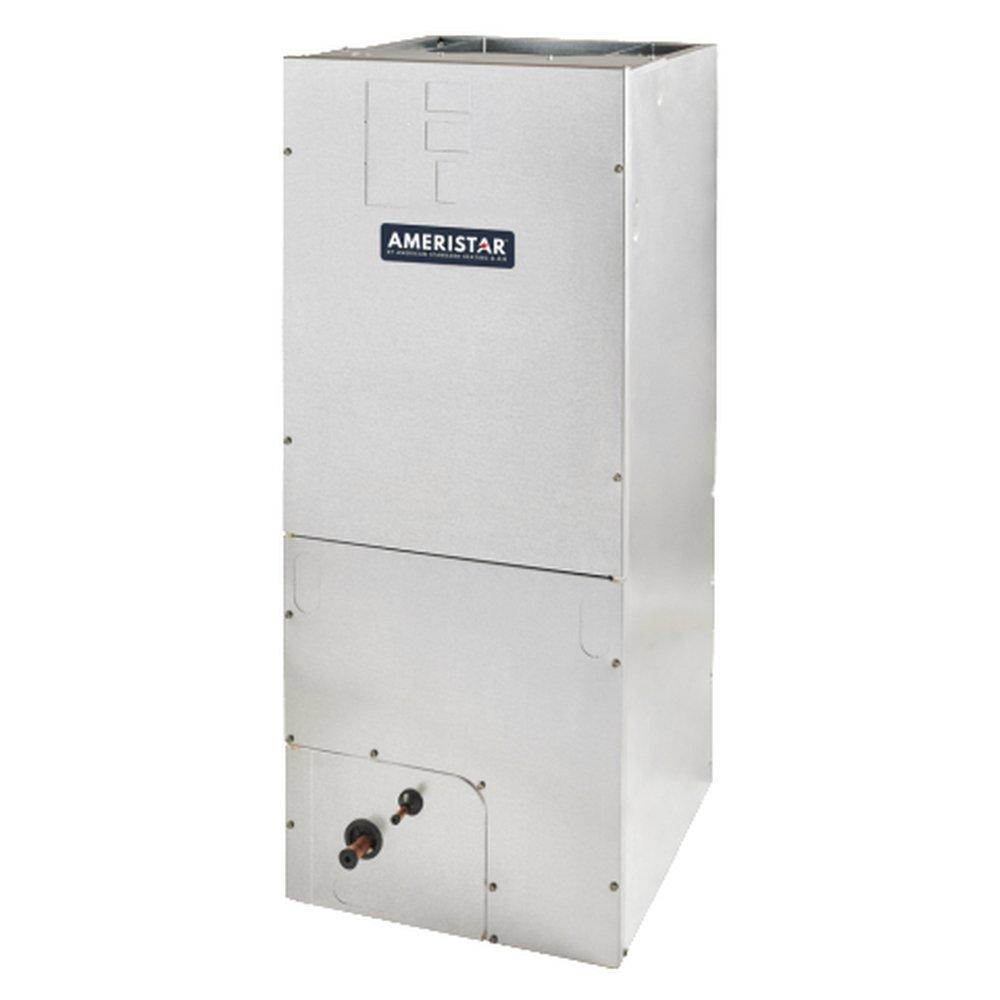

3.5 Ton - Multi-Position/Convertible - Direct Drive - Air Handler
Ameristar
3.5 Ton - Multi-Position/Convertible - Direct Drive - Air Handler
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in FL
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in FL
Purchase history
Ameristar
3.5 Ton - Multi-Position/Convertible - Direct Drive - Air Handler
A4AH4E42A1C30B
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Galvanized metal cabinet with captured foil face insulation
- 2% or less air leakage
- R-4.2 Insulating Value
- Multi-Position UP/Down Flow, Horizontal Left /Right
- ALL Aluminum Coil with Enhanced Patented Coil Fin
- Electric Heaters with polarized plug connections (sold as accessory)
- R-410A Thermal Expansion Valve
- ECM Motor (3.5 – 5 Ton Models )
- Low Voltage Pigtail Connections
Specifications
- A2L Compatible:
- No
- AMP:
- 4.2
- BTU:
- 42000
- BTU Cooling Rating:
- 42,000 Btu/h
- Blower Type:
- Direct Drive
- Coil Type:
- Plate Fin
- Configuration:
- Multi-Position, Horizontal Right, Horizontal Left, Upflow
- Depth:
- 21-1/8
- ETL Listed:
- No
- Energy Star Compliant:
- No
- Height:
- 51-3/8
- Horsepower:
- 1/2 hp
- Liquid Line (OD):
- 3/8
- MBH:
- 42
- Material:
- Aluminum
- Max CFM:
- 1800
- Phase:
- Single Phase
- Power Source:
- Electric
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- TXV
- SEER:
- 14.0
- Suction Line (OD):
- 7/8
- Tonnage:
- 3.5 Ton
- UL Listed:
- Yes
- Volts:
- 208/230V
- Weight:
- 138
- Width:
- 23-1/2
